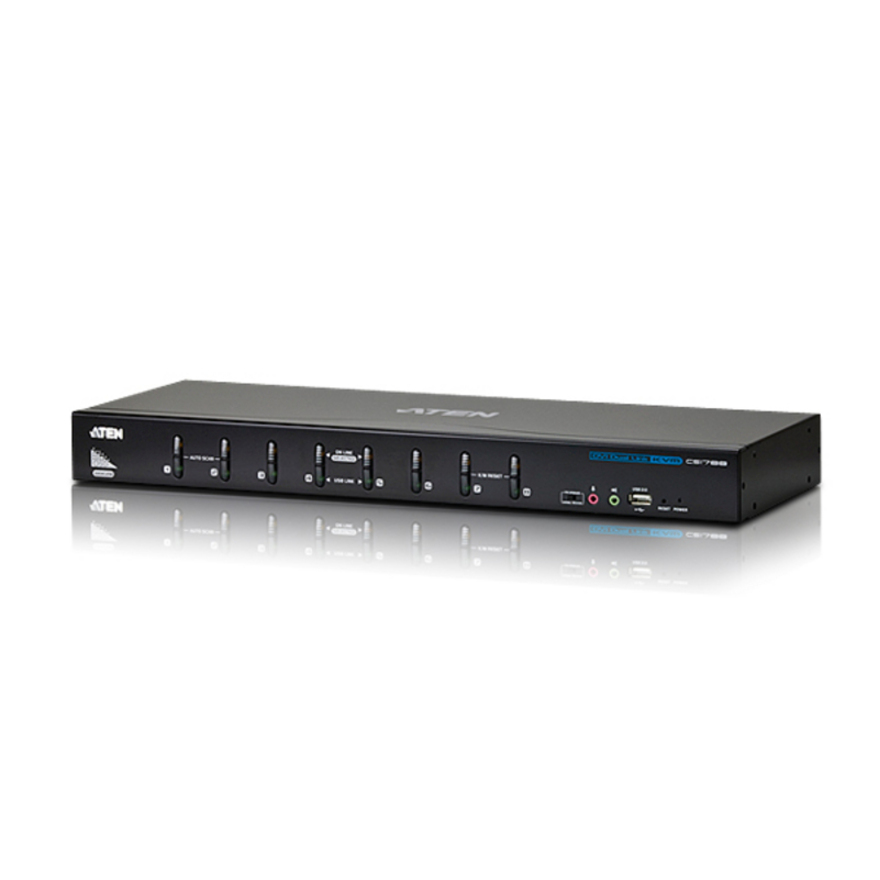

The CS1788 8-Port USB DVI Dual Link KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.
It can be cascaded to three levels - allowing up to 73 CS1788s to control up to 512 computers - all from the original single console, making it ideal for IT applications and management.
In addition, the CS1788 features Multi-view functionality, which enables the use of standard USB cables to stack up to four switches for quad-viewing in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
- Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
- Two-level (Administrator/User) password authorization for enhanced security protection
- OSD Backup/Restore feature - enables the administrator to back up the switch's configuration and user profile information
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Multi-view feature - stack up to four CS1788 units and display video from up to four monitors (dual view / triple view / quad view)
- Cascadable to three levels - control up to 512 computers
- Supports a digital (DVI) or analog (VGA) video output
- One USB console controls eight Dual Link DVI or VGA computers and two additional USB 2.0 devices
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WQXGA |
| Power & Battery | |
|---|---|
| Power Consumption | 6.47 W |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 12 |
| Audio Ports | |
|---|---|
| Headphone | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 2560 x 1600 |
| Audio | |
|---|---|
| Microphone | Yes |
| General Features | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 8 |
| Video Ports | |
|---|---|
| DVI | Yes |
| Number of DVI Ports | 9 |
