The CL5708 Slideaway -LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

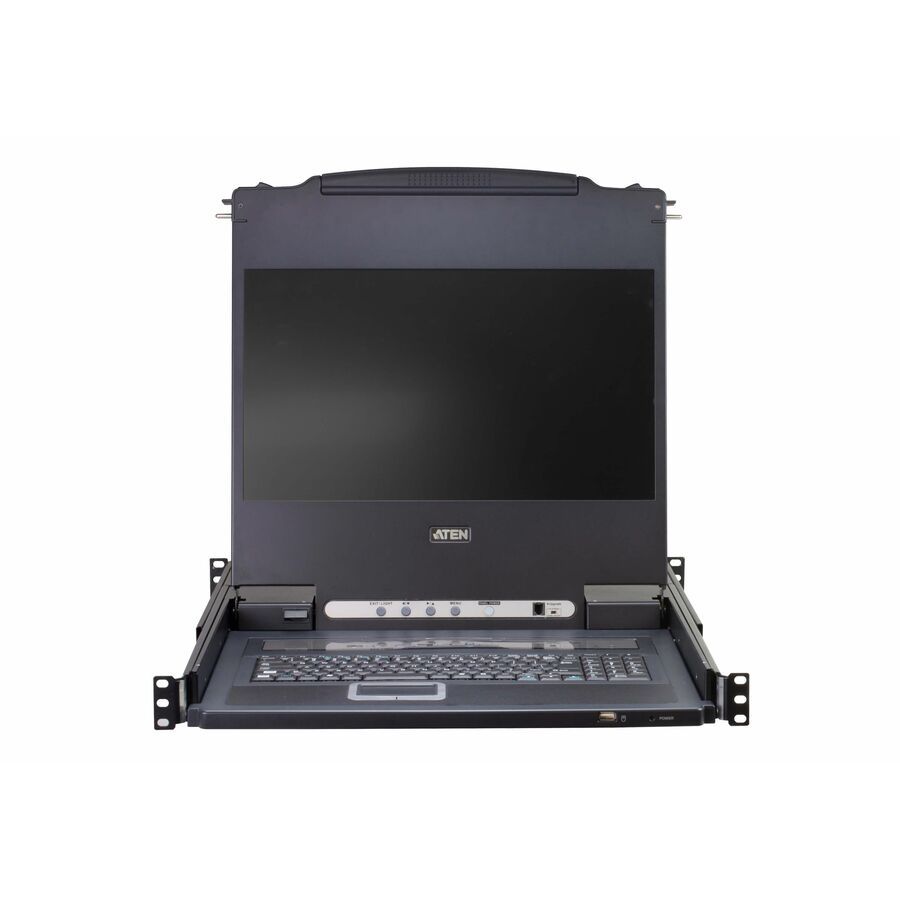

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" , 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. The 17.3" LCD monitor offers Full HD superior video quality for enhanced visibility and clarity.To enhance security, the CL5708 offers the option to use a fingerprint identification system for controlling access to both the CL5708 itself and the servers it commands.
The CL5708 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17", 17.3"or 19" LED-backlit LCD monitor in a Slideaway™ housing
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console
- USB port allows each computer to access USB peripherals (inapplicable to CL5708MW)
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Screen / Display | |
|---|---|
| Screen Size | 17.3" |
| Screen Resolution | 1920 x 1080 |
| Display Screen Type | LED |
| Screen Mode | Full HD |
| Aspect Ratio | 16:9 |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100-240V AC |
| Input Voltage | 230 V AC |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 1 |
| Input Devices | |
|---|---|
| Keyboard | Yes |
| Pointing Device Type | Mouse |
| Size / Dimensions | |
|---|---|
| Rack Height | 1U |
| General Features | |
|---|---|
| KVM Switch | Yes |
| Manufacturer | ATEN Technology, Inc |
| Device Type | LCD Rack Console |
| Number of Computers Supported | 16 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Daisy Chain | Yes |
| PS/2 Port | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
