With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.

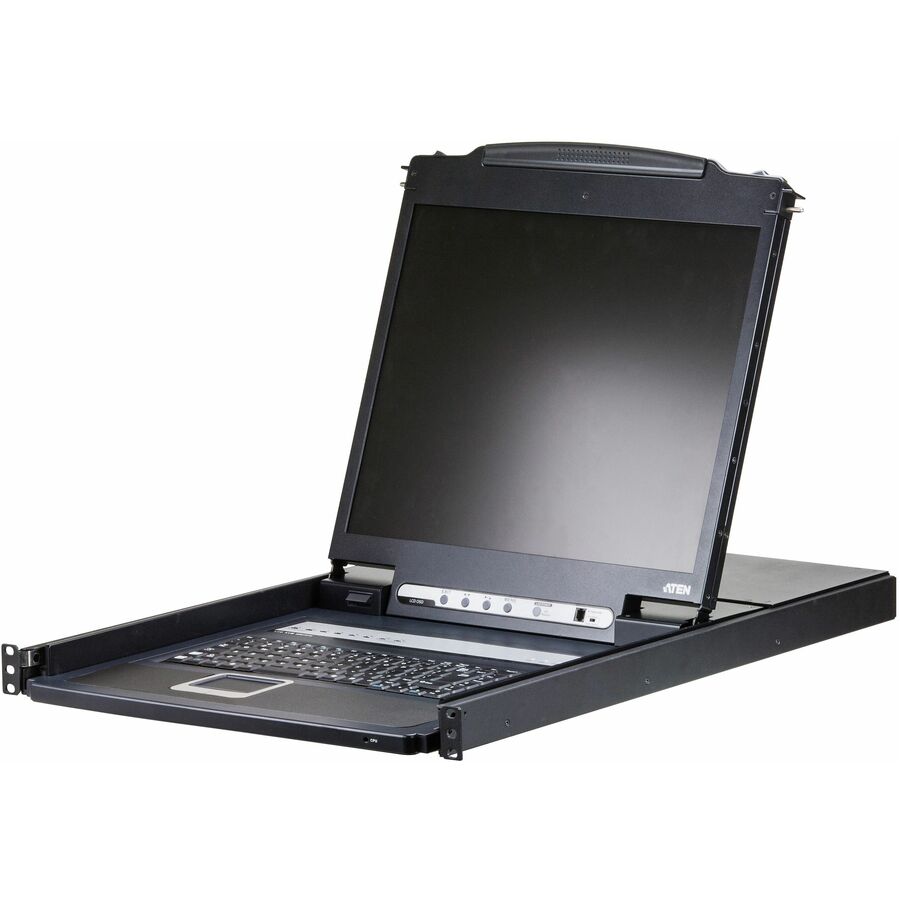

The CL1308 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.
Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.
- A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches.
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Integrated KVM console with 19" LED-backlit LCD panel
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Screen / Display | |
|---|---|
| Screen Size | 19" |
| Screen Resolution | 1280 x 1024 |
| Display Screen Type | LED |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100-240 V AC |
| Input Voltage | 230 V AC |
| USB Ports | |
|---|---|
| USB | Yes |
| Input Devices | |
|---|---|
| Keyboard | Yes |
| Pointing Device Type | Mouse |
| Size / Dimensions | |
|---|---|
| Rack Height | 1U |
| Maximum Height Adjustment (Above) | 1.7" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| KVM Switch | Yes |
| Frequency | 60 Hz |
| Manufacturer | ATEN Technology, Inc |
| Device Type | LCD Rack Console |
| Number of Computers Supported | 128 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| PS/2 Port | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Brand | ATEN Technology, Inc |
| UPC/GTIN | 881317514547 |
| MPN | CL1308NUKIT |
| Unit Count | 1 Units |
