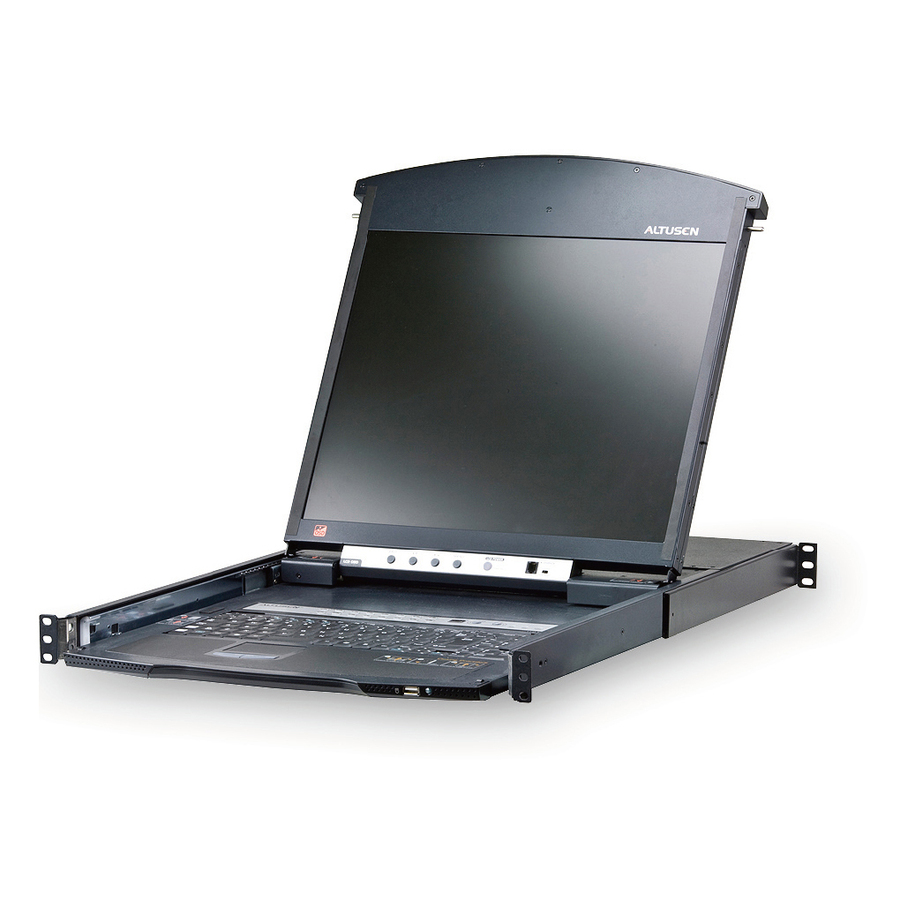

The KL1508Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 8 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.
The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to " hide away " when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity.
- Multiplatform support: PC, Mac, Sun and Serial
- Supports external USB mouse
- Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
- KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
- One bus for remote KVM over IP access
- Space-saving RJ-45 connectors and Cat 5e/6 cabling
- Daisy chain up to 15 additional KVM switches to control up to 128 computers*
- A single console controls up to 8 computers
- Integrated KVM console with 17� or 19� LED-backlit LCD monitor in a Dual Rail housing
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Screen / Display | |
|---|---|
| Screen Size | 19" |
| Screen Resolution | 1600 x 1200 |
| Display Screen Type | LCD |
| Screen Mode | UXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 240 V AC |
| Power Consumption | 34 W |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 3 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 10 |
| Network (RJ-45) | Yes |
| Input Devices | |
|---|---|
| Keyboard | Yes |
| Pointing Device Type | Mouse |
| Size / Dimensions | |
|---|---|
| Rack Height | 1U |
| General Features | |
|---|---|
| KVM Technology | Digital |
| KVM Switch | Yes |
| Manufacturer | ATEN Technology, Inc |
| Device Type | LCD Rack Console |
| Number of Computers Supported | 8 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 1 |
| Misc Ports | |
|---|---|
| Daisy Chain | Yes |
| Management Port | Yes |
| Number of PS/2 Ports | 2 |
| PS/2 Port | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN 8-Port 19in. Dual Rail CAT5 LCD KVM Over the Net-TAA Compliant - 8 Computer(s) - 19" LCD - UXGA - 1600 x 1200 - 10 x Network (RJ-45) - 2 x PS/2 Port - 3 x USB - 1 x VGA - Daisy Chain - Keyboard - TouchPad, Mouse - 100 V AC, 240 V AC Input Voltage - 1U High - PC, Mac, Sun - Metal
