As workplaces face restructuring and decentralization is inevitably enforced, control room operations are being challenged to pivot effectively throughout these safety protocols in the new normal. Despite manpower shortages, managing escalations with secure, precise, and timely data from real-time monitoring and dynamic collaboration has become measurably more mission-critical than ever.

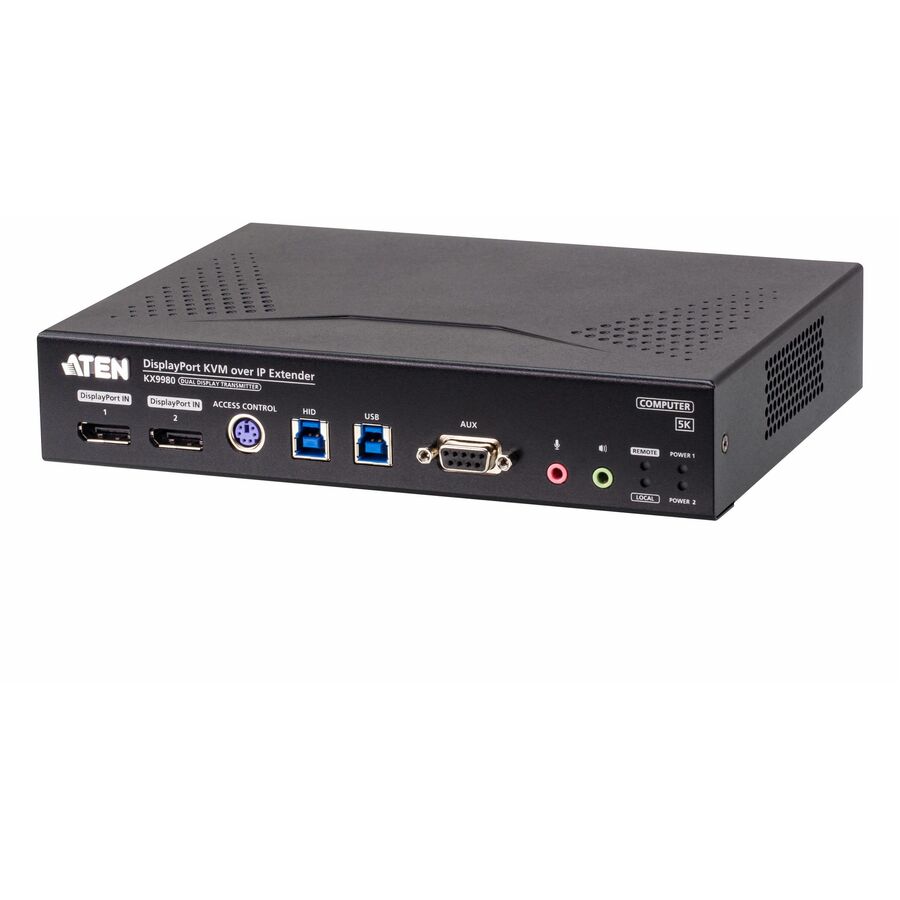

The KX9980 is a high-performance KVM over IP transmitter that allows connection to a DisplayPort computer and enables secure, remote, and uninterrupted access to the computer from a 5K DisplayPort KVM console connected to a KX9980 receiver over an Intranet or a dedicated LAN. With the receiver console installed at a separate location from the transmitter within a standard IP network, mission-critical control room operations become more ergonomic, user-centered, and task-oriented, while remaining separate from any adverse environmental interference.
The KX9980 expands on previous models with support for up to 10 Gbps optic fiber network connection, transcendent 5K audiovisual performance, speedy peripheral data sharing, and many other new features. This future-proof KVM over IP Matrix System solution, incorporating flexible extender connections, visual collaboration, and system control, aims to streamline control room workflows to jump start operators' productivity with KVM over IP agility.
Industry-First KVM over IP with USB 3.2: Local Performance, Remotely Delivered
Experience the efficiency of access and control to USB 3.2 Gen 1 peripherals across a KVM over IP connection as real-time and reliable as a local one. The KX9980 ensures smooth peripheral response for precision tasks and high-speed data transfers, keeping your remote workflow effortless regardless of distance.
Industry-First VM Support via KVM-Based IT/OT Network Separation
Beyond remote console monitoring, the KX9980R features a local PC console dedicated for mission-critical operations, which allows access to both physical servers and virtual machines while keeping the physical OT infrastructure strictly isolated, implementing true IT/OT network separation. This robust, KVM-based isolation not only uplifts overall operational security but also maintains total system integrity - ensuring continuous uptime and protection even in the event of a network breach or downtime.
Native DisplayPort Signal Processing with 12-bit Deep Colors
The essence of information visualization is in presenting the vividness of image coloring (ex. broadcast post production, meteorological analysis, etc). Powered by native DisplayPort signal processing with 8/10/12-bit color depth, the KX9980 delivers stunning visualization with a wider color spectrum comprising Adobe RGB / sRBG / YCbCr / YUV color spaces, facilitating lossless video compression over real-time KVM over IP data transmission.
Pixel-Perfect 5K Audiovisual Performance
The KX9980 revamps control room desktop operations with optimum image quality of 5K@60 Hz@4:4:4. Aided by the graphics card's dithering effect, the KX9980 brings a wider array of luminosity with smoother image rendering, providing an impactful user experience to considerably uplift control room productivity.
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | 5K |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 4 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 5120 x 2880 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 3.15 lb |
| Transmitter Length | 8.46" |
| Form Factor | Rack-mountable |
| Transmitter Height | 1.65" |
| Transmitter Width | 6.42" |
| General Features | |
|---|---|
| Maximum Operating Distance | 32808.40 ft |
| Manufacturer | ATEN Technology, Inc |
| Device Type | KVM Extender |
| Misc Ports | |
|---|---|
| Host Interface | DisplayPort |
| Number of PS/2 Ports | 1 |
| PS/2 Port | Yes |
