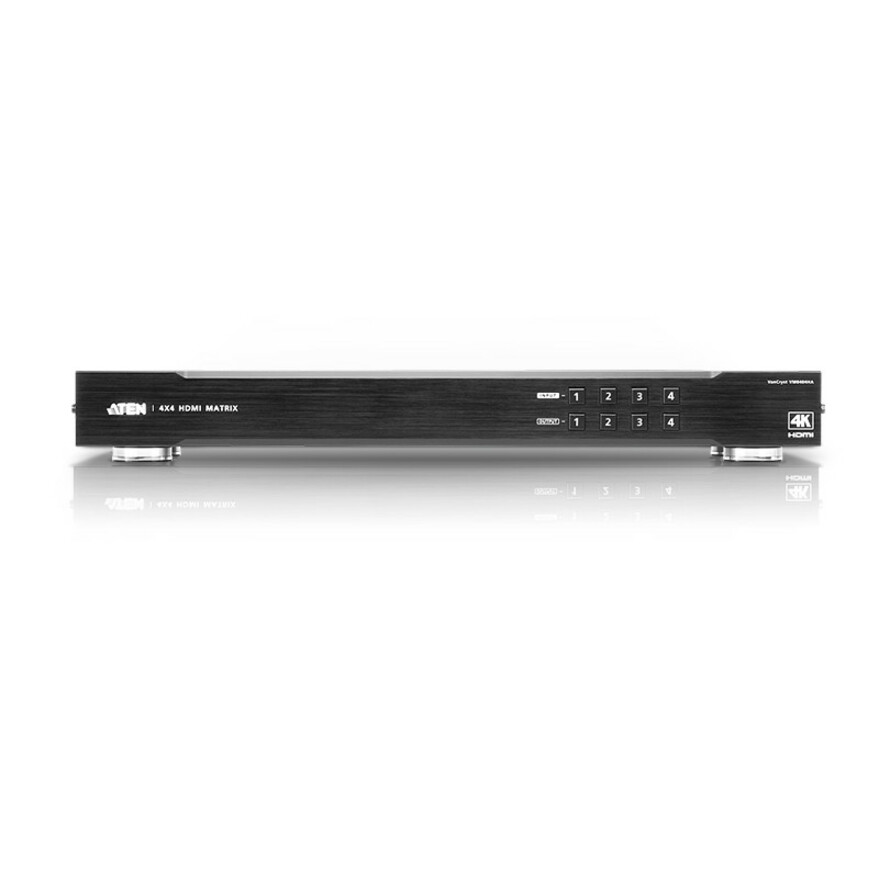

The ATEN VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of highdefinition video switching, the VM0404HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more.
The VM0404HA matrix switch offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays and can be operated through front-panel pushbuttons, IR remote and RS-232 control, ensuring optimum viewing and control of high-definition video.
- ESD protection for HDMI
- Supports ATEN's LockPro™ HDMI cable lock for secure HDMI cable connections
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
- HDMI (3D, Deep Color, 4K) and HDCP 1.4 compatible
- Signaling rates up to 3.4 Gbits for fl awless 4K output
- Supports Dolby True HD and DTS HD Master audio
- Multiple Control Methods - system management via front-panel pushbuttons, IR remote and RS-232 control
- EDID Expert™ - selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
- Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
- Connects any of 4 HDMI sources to any of 4 HDMI displays
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| Networking & Connectivity | |
|---|---|
| Infrared | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 1 |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 4 |
| Number of HDMI Inputs | 4 |
| General Features | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Misc Ports | |
|---|---|
| Serial | Yes |
| Number of Serial Ports | 1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
ATEN 4x4 4K HDMI Matrix Switch VM0404HA-TAA Compliant - Monitor, Control System Compatible - 4 x HDMI Digital Audio/Video In, 4 x HDMI Digital Audio/Video Out, 1Serial, 1USB, 1DC Power Input, 1IR Input
