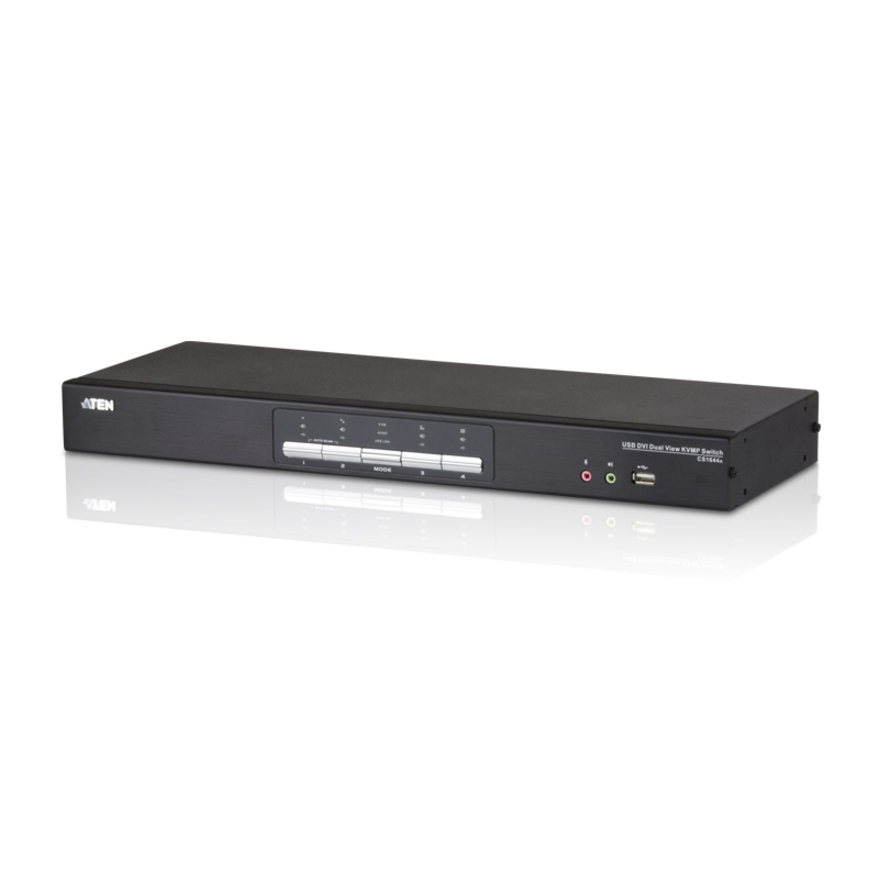

The CS1644A 4-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.
The new CS1644A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1644A supports advanced nVidia 3D Vision ready 120Hz 3D displaying,allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1644A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals- demanding a high quality switch that provides stunning color, clarity and functionality.
- Video DynaSync, exclusive ATEN technology, to eliminate boot-up display problems and optimizes resolution when switching between ports
- Sun/Mac keyboard support and emulation
- Multiplatform support - Windows 2000/XP/Vista, Linux *, Mac, Sun,and FreeBSD
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support - fully compliant with DVI specifications; and HDCP compliant
- Supports widescreen resolutions
- Multi-View Display - Easily connect two CS1642A/1644A's units for a second dual-screen setup controlled through a single connection
- Superior video quality - 2560 x 1600 at 60Hz (DVI Dual link); and 3D displays up to 1920 x 1200 at 120Hz (DVI Single link)
- One dual-screen USB console controls two/four dual-screen computers and two additional USB devices
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WQXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5.3 V DC |
| Power Consumption | 12.19 W |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 8 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Headphone | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 2560 x 1600 |
| Audio | |
|---|---|
| Microphone | Yes |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| General Features | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Number of Computers Supported | 4 |
| Video Ports | |
|---|---|
| DVI | Yes |
| Number of DVI Ports | 10 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
