As the scope of meeting rooms continually evolves, it's critical that we keep pace and maintain fast data transmission that extends to a longer distance should the occasion arise. In such cases, the UCE33100 becomes your perfect partner as it extends your USB connectivity across a distance of up to 100 m over a Cat 6A cable to assure a smooth meeting experience and contribute toward your overall operational efficiency at the office.
5 Gbps High-Speed Data Transmission over 100 m
Transmit USB 3.2 data at an ultra-high 5 Gbps speed spanning a distance up to 100 m with a Cat 6A cable. (Product recommendation: 2L-29330)
4 X USB Type-A Ports for Plug-n-Play Peripheral Connections
Enhance the resourcefulness of the extender by tapping into its 4 USB type-A ports and have a wide range of peripherals at your disposal.
PoC Power Supply for Ultimate Usability Convenience
Either the local or remote unit could be plugged into a power source, powered by just a Cat 6A connection cable.
Easily Mountable for Versatile Deployment
For added ease of installation and expansion, a mounting kit is provided as a resourceful accessory to facilitate easy and convenient installation.
- A two-piece extension kit that transmits USB signals over a Cat 6A cable
- Long distance USB 3.2 data transmission at up to 5 Gbps across 100 m
- 4x USB Type-A ports built on the remote unit for connection to multiple USB peripherals
- Bi-directional 24V power over cable eliminates the need for an additional power adapter when either of the local or remote unit receives power
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Power & Battery | |
|---|---|
| Input Voltage | 24 V |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 6 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 9.17 oz |
| Receiver Weight (Approximate) | 9.17 oz |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 640 MB/s |
| Maximum Operating Distance | 328.08 ft |
| Maximum Extended Range | 328.08 ft |
| Manufacturer | ATEN Technology, Inc |
| Miscellaneous | |
|---|---|

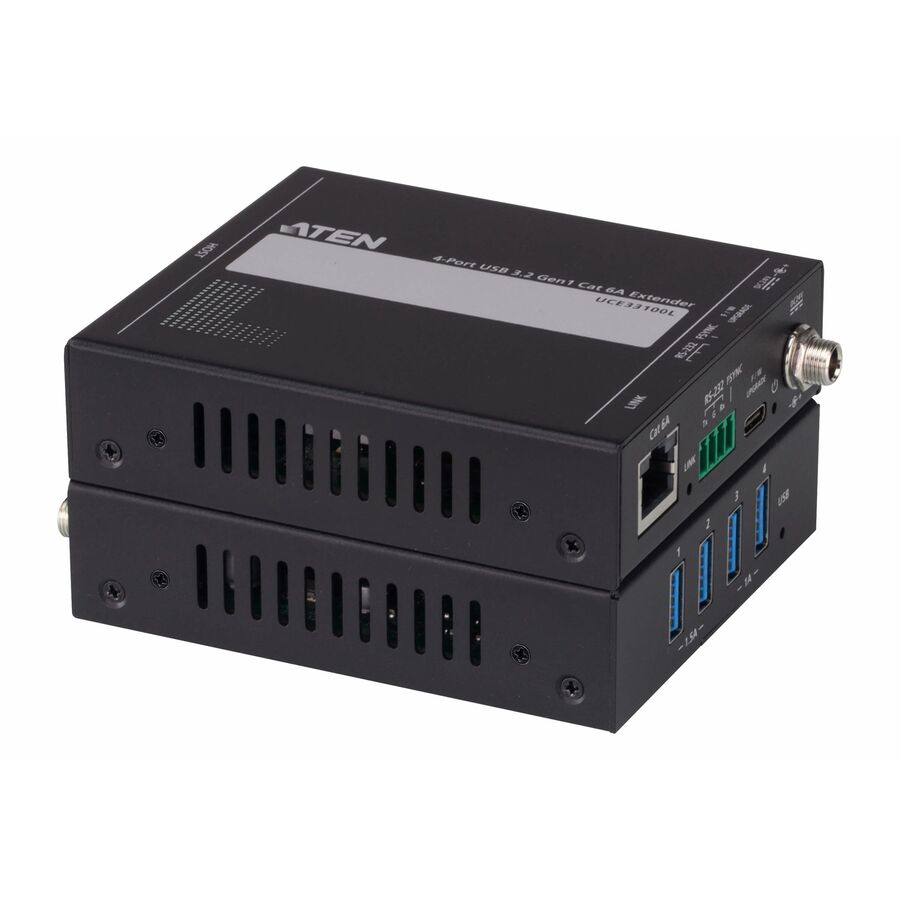

| Product Name | 4-Port USB 3.2 Gen 1 Cat 6A Extender (up to 100 m) |
