ATEN 4-Channel 4K H.265 IP Stream Decoder Input Card

8,948.55 8,948.55
8,948.55

8,948.55 / Units
  • Brand
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Functions
  • Network (RJ-45)
  • Length
  • Maximum Resolution
  • Screen Mode Supported
  • Frequency Range
  • Video Formats
  • Supported Video Modes
  • Packaged Quantity
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Device Supported
  • Manufacturer Website Address
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

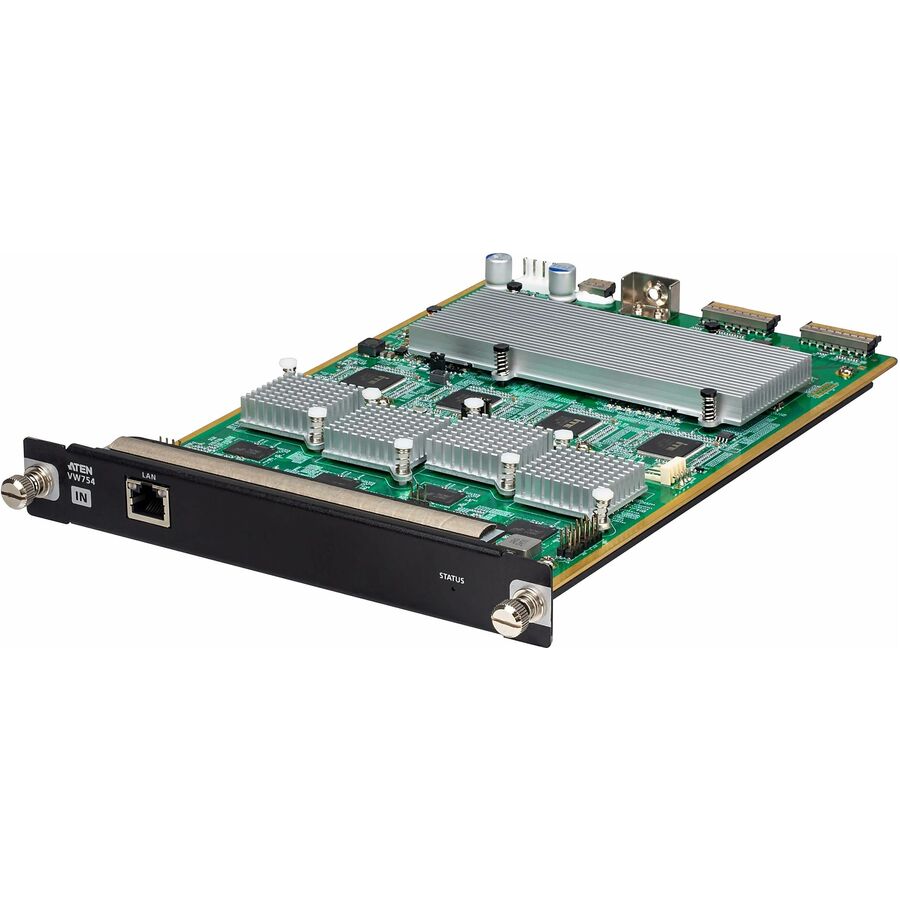

Built to work with ATEN's VW3620 Modular Video Wall Processor, the VW754 seamlessly accepts H.265/H.264 streams from IP cameras/Network Video Recorders (NVRs) and decodes up to four channels at 4K @ 60 Hz simultaneously. Each decoded stream is assignable to a preferred output channel within the VW3620 configuration. The VW754 facilitates seamless integration with any mainstream IP-based video system on account of its compliance with ONVIF Profile S and the support for RTSP.

Hot swap capability helps enhance flexibility when it comes to maintenance, especially in critical settings that need constant uptime. These highlights have made the VW754 ideal for mission-critical scenarios that involve multiple IP cameras to improve situational awareness and decision-making efficiency, such as surveillance control rooms, command centers, transportation sites, and even military and government environments.

  • Seamlessly decodes 4x H.265/H.264 IP camera streams at UHD 4K@60Hz simultaneously or up to 64 x SD or 36 x 720p streams
  • ONVIF Profile S compliant for seamless integration with mainstream IP cameras and NVRs
  • Supports RTSP protocol
  • Modular design that works with ATEN Modular Video Wall Processors
  • Hot-swappable
  • Ideal for mission-critical multi-IP camera / multi-source IP deployments such as surveillance control rooms, command centers, transportation sites in military and government environments
Brand
Brand ATEN Technology
Screen / Display
Maximum Resolution 3840 x 2160
Screen Mode Supported HD
Ethernet Port
Network (RJ-45) Yes
General Features
Functions Video Decoding
Frequency Range 60hz
Video Formats H.264
Supported Video Modes 540p
Manufacturer ATEN Technology, Inc
