ATEN 2A-130G VGA EDID Emulator

$ 18.91 $ 18.91
$ 18.91

$ 18.91 / Units
  • Brand
  • Connector on Second End Detai
  • Weight (Approximate)
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Features
  • Cable Length
  • Cable Type
  • Connector Type on First End
  • Connector on First End Details
  • Connector Type on Second End
  • Connector on Second End Details
  • Product Color
  • Product Material
  • Material Details
  • Packaged Quantity
  • Manufacturer
  • Product Type
  • Compatibility
  • Device Supported
  • Manufacturer Website Address
  • Supported Resolution
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

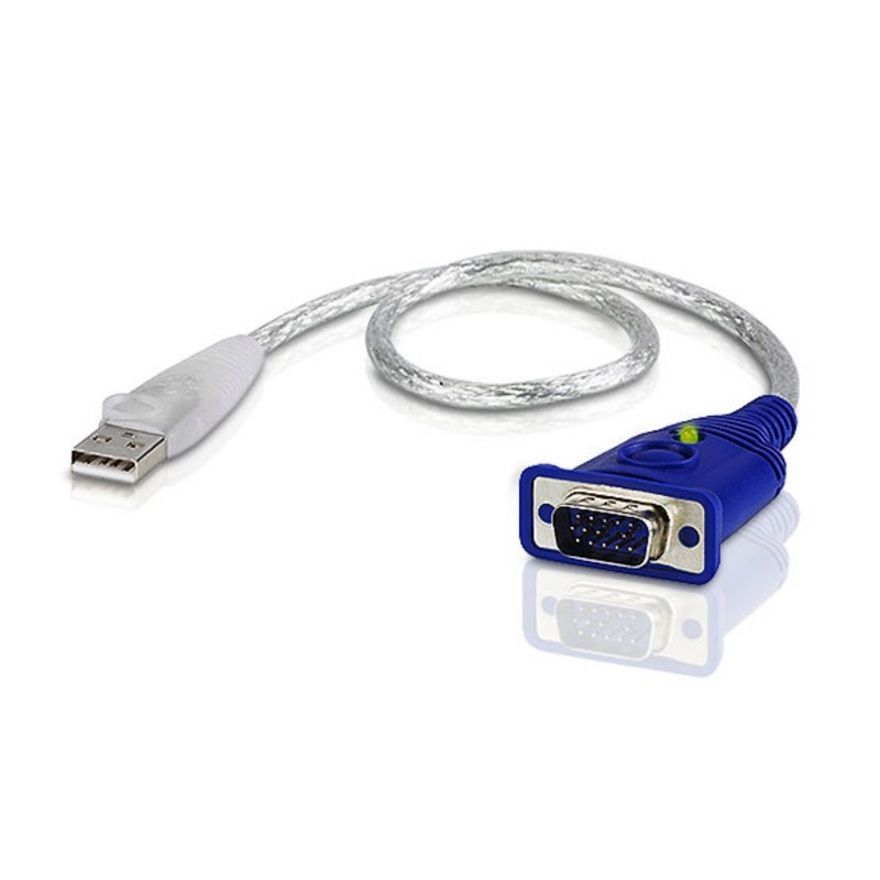

The 2A-130G VGA EDID Emulator is designed for ATEN KVM extender or video extender installations that do not utilize a local monitor at the site where the computer/video source is located. The 2A-130G emulates and stores a default ATEN EDID (Extended Display Identification Information) setting in a non-volatile memory. This means the computer/video source can still "see" the display, even though it is not directly connected.

The 2A-130G is suitable for any ATEN KVM or video extender installation where a monitor is not required at the local site, providing a simple, cost-saving, and convenient solution for display-related boot-up problems.

  • Supported Resolutions
  • Compatible Splitters (Connect to Port 1): VS132A/134A/138A, VS92A/94A/98A, VS82/84/88, VS0116, VS132, VS102, VS1204T, VS1208T, VS1504, VS1508
  • Compatible Extenders: CE774, CE775, CE700A, CE750, CE770, CE800B, CE350, CE370, CE250A, CE252, VE150A, VE170, VE200, VE300, VE500
  • No software required - Eliminates incompatibility and installation issues; no need to confi gure
  • USB Powered - No need for an external power adapter
  • Superior video quality - up to 1920 x 1200@60Hz, 1366 x 768@60Hz
  • ATEN standard EDID supports all popular resolutions
  • EDID built-in - Stores ATEN standard EDID information in device
  • Subsitutes as a monitor at the site where the computer/video source is located
Brand
Brand ATEN Technology
Screen / Display
Supported Resolution 1920 x 1200
General Features
Manufacturer ATEN Technology, Inc
Cables
Cable Length 1.15 ft
Cable Type USB/VGA
Connector Type on First End Powered USB Type A - Male
Connector on First End Details 1 x Powered USB Type A - Male
Connector Type on Second End HD-15 - Male
Connector on Second End Details 1 x 15-pin HD-15 - Male
ATEN 2A-130G VGA EDID Emulator - 1.15 ft USB/VGA Video Cable for Video Device, Monitor, Computer, KVM Extender, Video Extender, Video Splitter, Power Supply - First End: 1 x Powered USB Type A - Male - Second End: 1 x 15-pin HD-15 - Male - Supports up to 1920 x 1200 - Blue - 1
