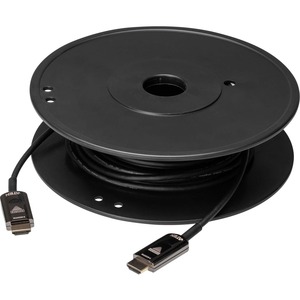

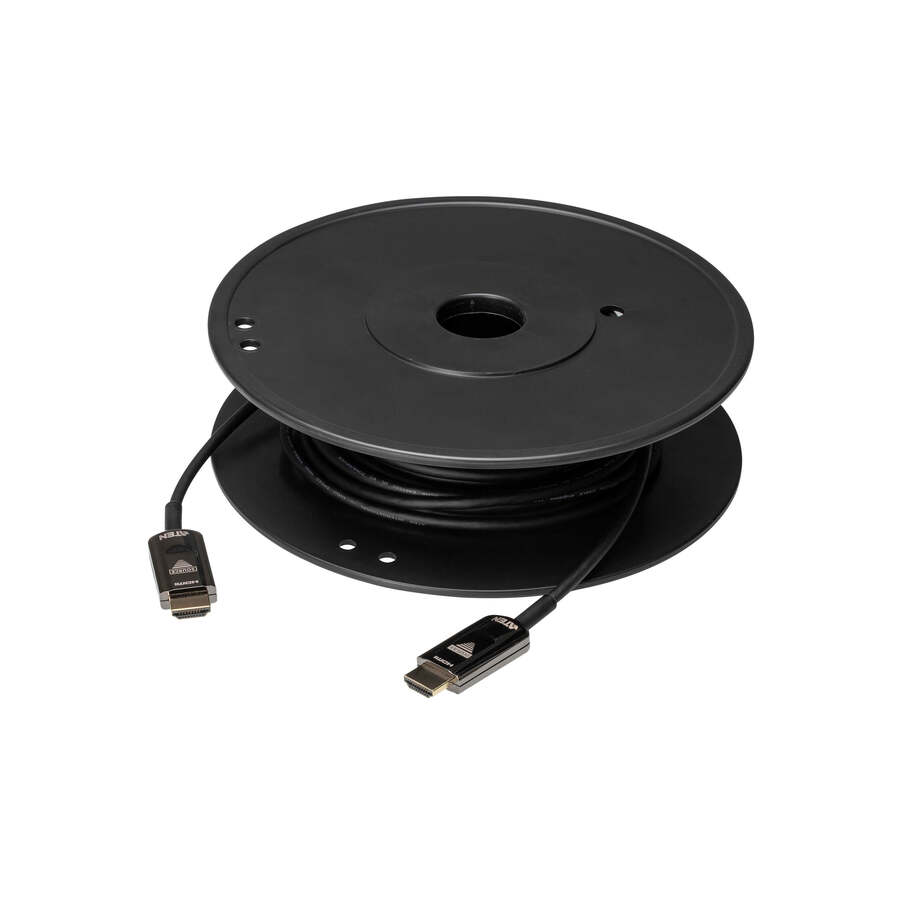

ATEN VE781020 True 4K HDMI 2.0 Active Optical Cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables come in 20m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI 2.0 specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cables guarantee lossless audio signal transmissions. The VE781020 optical cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
- Plug-and-play
- Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)
- Supports multi audio channel - Dolby TrueHD and DTS-HD Master Audio
- High data transfer rate of 18 Gbps
- Reduced EMI and RFI for lower noise interference
- Extends True 4K signals up to 20m
- HDMI 2.0 (3D, Deep Color, True 4K); HDCP 2.2 compliant
- Supports resolution up to True 4K (4096 x 2160 @ 60Hz 4:4:4)
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Screen / Display | |
|---|---|
| Supported Resolution | 4096 x 2160 |
| General Features | |
|---|---|
| Data Transfer Rate | 18 Gbit/s |
| Manufacturer | ATEN Technology, Inc |
| Cables | |
|---|---|
| Conductor | Tinned Copper |
| Fiber Optic Cable Core/Claddi | 50/125 µm |
| Cable Length | 65.62 ft |
| Cable Type | Hybrid Fiber Optic |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Connector Type on First End | HDMI 2.0 Type A Digital Audio/Video - Male |
| Connector on First End Details | 1 x 19-pin HDMI 2.0 Type A Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0 Type A Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 19-pin HDMI 2.0 Type A Digital Audio/Video - Male |
| Connector Plating | Gold |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Color | Black |
| American Wire Gauge | 30 AWG |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | ATEN Technology, Inc |
| UPC/GTIN | 672792011207 |
| MPN | VE781020 |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
ATEN 20M True 4K HDMI 2.0 Active Optical Cable (True 4K@20m) - 65.62 ft Hybrid Fiber Optic A/V Cable for Audio/Video Device, Receiver, Switch, Digital Signage Player - First End: 1 x 19-pin HDMI 2.0 Type A Digital Audio/Video - Male - Second End: 1 x 19-pin HDMI 2.0 Type A Digital Audio/Video - Male - 18 Gbit/s - Supports up to 4096 x 2160 - Gold Plated Connector - 50/125 µm - 30 AWG - 1
