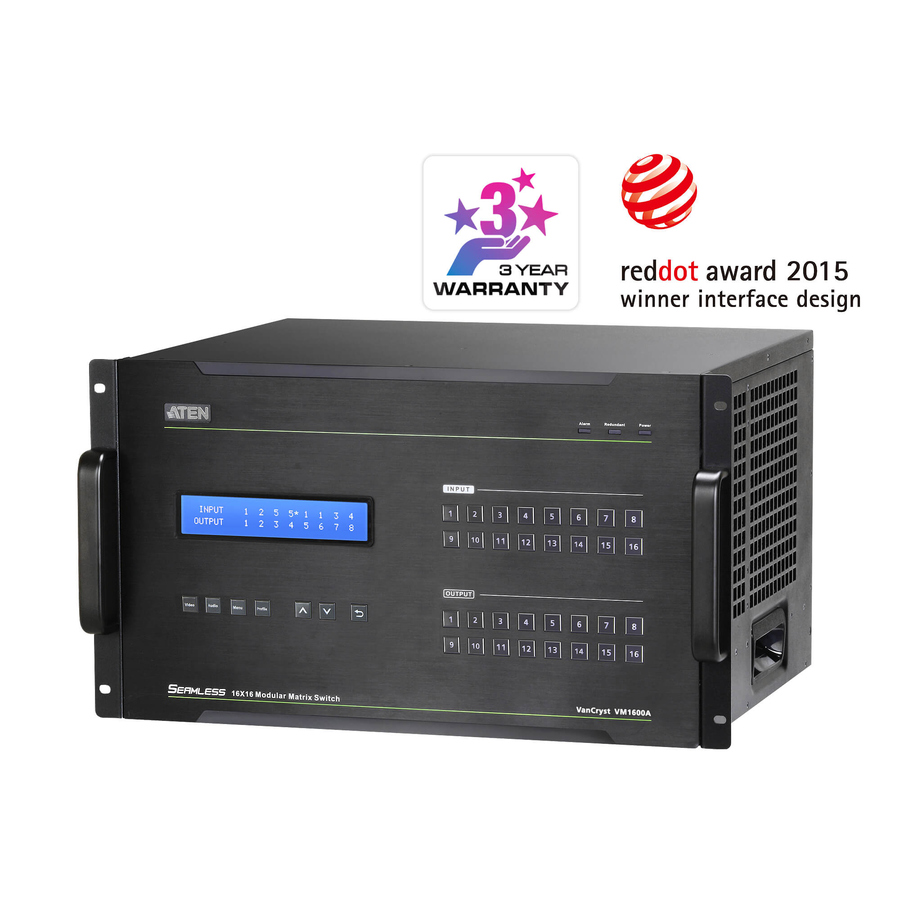

The ATEN Modular Matrix Solution Series comprises the VM1600A/VM3200 Modular Matrix Switch in tandem with a range of hot-swappable I/O boards. The solution offers real-time control and advanced access to manage 16/32 video sources and 16/32 displays simultaneously, through modular I/O boards in a single chassis. Empowered by ATEN Seamless Switch™ technology, the VM1600A/VM3200 video matrix switches incorporate a speed-progressive video switching function and a unique scaler that integrates seamlessly with video wall systems.
The ATEN Modular Matrix Solution is easily expandable and ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.
Boasting a sophisticated and intuitive design to deliver the best audio/visual distribution and control, reliability and lowest maintenance costs, the solution also incorporates ATEN's Red Dot Award-winning GUI that can be accessed from anywhere over a network or the internet. Configuring a video wall or digital signage installation has never been easier.
- Bi-directional RS-232 channel - allows you to control the connected serial devices simultaneously through the web GUI
- Audio-enabled -HDMI audio can be extracted and stereo audio can be embedded*
- EDID Expert -selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
- Calendar-based scheduling -plays connection profiles that synchronized with real-time clock
- Video wall -allows you to create custom video wall layouts via intuitive web GUI*
- Seamless Switch™ -features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
- Scaler -features a (4K) video scaling function to convert input resolutions to the display's native resolutions*
- 4K resolutions -up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)*
- Multiple means for system configuration including front-panel pushbuttons, RS-232/422/485 control, and Ethernet connections for web GU
| Brand | |
|---|---|
| Brand | ATEN Technology |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 16 |
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Cable |
| Ethernet Port | |
|---|---|
| Number of Connectivity (RJ-45 | 1 |
| Connectivity (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 4096 x 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 16 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
