ATEN 16-Port 19in. Dual Rail CAT5 LCD KVM Over the Net-TAA Compliant

$ 2,046.49 $ 2,046.49
$ 2,046.49

$ 2,046.49 / Units
  • Brand
  • Color - Not Specified
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Screen Size
  • Platform Supported
  • Keyboard
  • Pointing Device Type
  • KVM Technology
  • KVM Switch
  • Daisy Chain
  • USB
  • Number of USB Ports
  • Network (RJ-45)
  • Number of Network (RJ-45) Ports
  • VGA
  • Number of VGA Ports
  • Management Port
  • Number of PS/2 Ports
  • PS/2 Port
  • Product Material
  • Rack Height
  • Maximum Height Adjustment (Above)
  • Screen Resolution
  • Display Screen Type
  • Screen Mode
  • Input Voltage
  • Maximum Operating Power Consumption
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Package Contents
  • Manufacturer
  • Product Type
  • Device Type
  • Manufacturer Website Address
  • Number of Computers Supported
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us

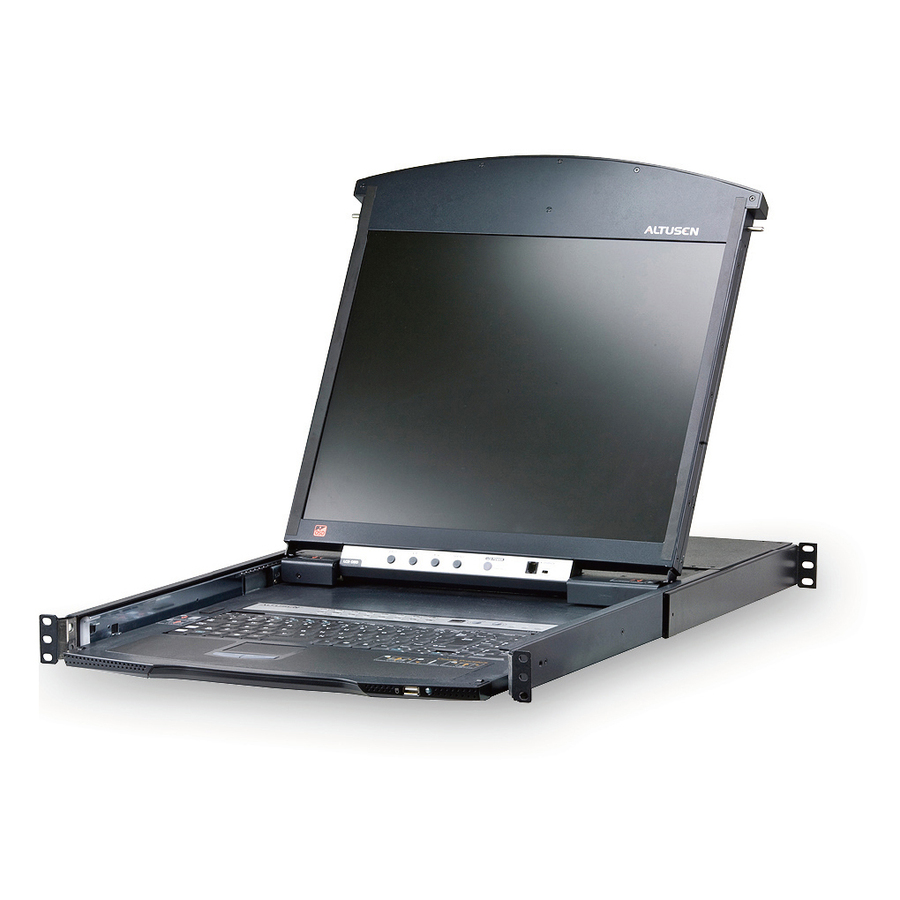

The KL1516Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.

The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to " hide away " when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity.

  • Superior Video Quality - supports input video resolutions up to 1920 x 1200 @ 60Hz** up to 30 meters, 1600 x 1200 @ 60Hz up to 40 meters, and 1280 x 1024 @ 75Hz up to 50 meters
  • One local/remote share access bus -allowing IT administrators to monitor and control up to 16 servers
  • Dual Rail - LCD monitor slides independently of the keyboard/touchpad
  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Brand
Brand ATEN Technology
Screen / Display
Screen Size 19"
Screen Resolution 1600 x 1200
Display Screen Type LCD
Screen Mode UXGA
Power & Battery
Input Voltage 240 V AC
Maximum Operating Power Consumption 36 W
USB Ports
USB Yes
Number of USB Ports 3
Ethernet Port
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 18
Input Devices
Keyboard Yes
Pointing Device Type Mouse
Size / Dimensions
Rack Height 1U
Maximum Height Adjustment (Above) 1.7"
Appearance
Color Not Specified
General Features
KVM Technology Digital
KVM Switch Yes
Manufacturer ATEN Technology, Inc
Device Type LCD Rack Console
Number of Computers Supported 16
Video Ports
VGA Yes
Number of VGA Ports 1
Misc Ports
Daisy Chain Yes
Management Port Yes
Number of PS/2 Ports 2
PS/2 Port Yes
Compliance & Certification
Environmentally Friendly Yes
Brand ATEN Technology, Inc
UPC/GTIN 672792401114
MPN KL1516AiN
Unit Count 1 Units
Return Policy This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details.
ATEN 16-Port 19in. Dual Rail CAT5 LCD KVM Over the Net-TAA Compliant - 16 Computer(s) - 19" LCD - UXGA - 1600 x 1200 - 18 x Network (RJ-45) - 2 x PS/2 Port - 3 x USB - 1 x VGA - Daisy Chain - Keyboard - TouchPad, Mouse - 100 V AC, 240 V AC Input Voltage - 1U High - PC, Mac, Sun - Metal
