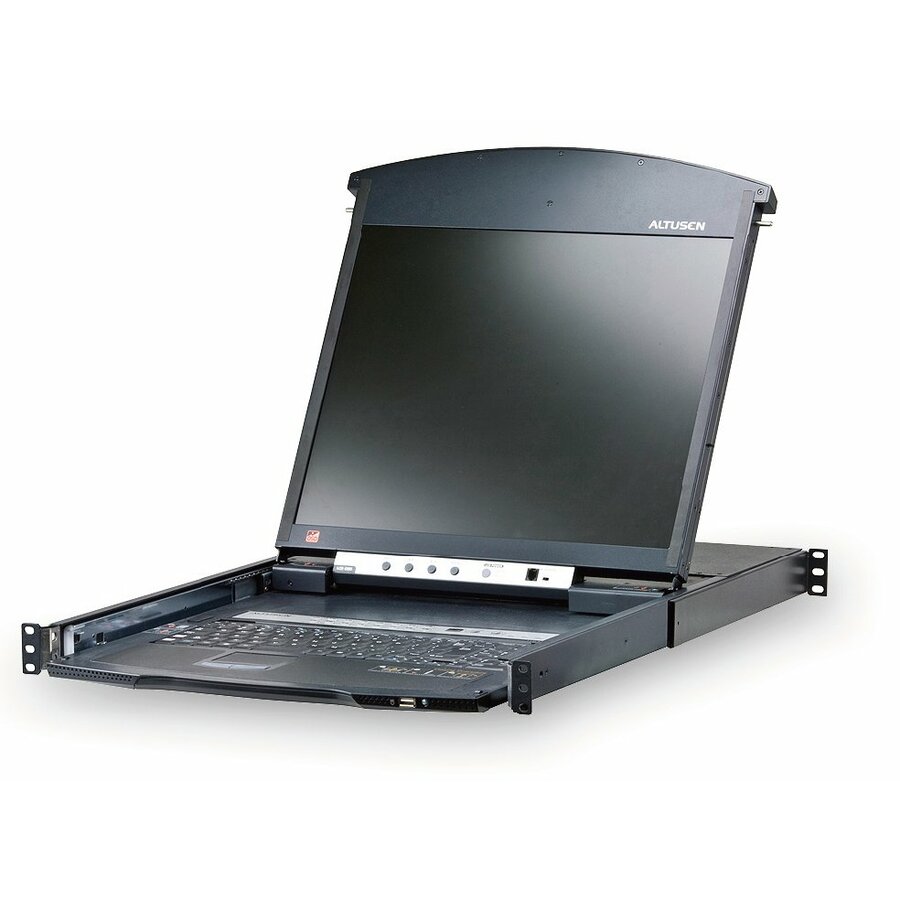

The KL1516Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.
The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to " hide away " when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity.
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Screen / Display | |
|---|---|
| Screen Size | 17" |
| Screen Resolution | 1600 x 1200 |
| Display Screen Type | LCD |
| Screen Mode | UXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 240 V AC |
| Power Consumption | 34 W |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 3 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 18 |
| Network (RJ-45) | Yes |
| Input Devices | |
|---|---|
| Keyboard | Yes |
| Pointing Device Type | Mouse |
| Size / Dimensions | |
|---|---|
| Rack Height | 1U |
| General Features | |
|---|---|
| KVM Technology | Digital |
| KVM Switch | Yes |
| Manufacturer | ATEN Technology, Inc |
| Device Type | LCD Rack Console |
| Number of Computers Supported | 16 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 1 |
| Misc Ports | |
|---|---|
| Daisy Chain | Yes |
| Management Port | Yes |
| Number of PS/2 Ports | 2 |
| PS/2 Port | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
