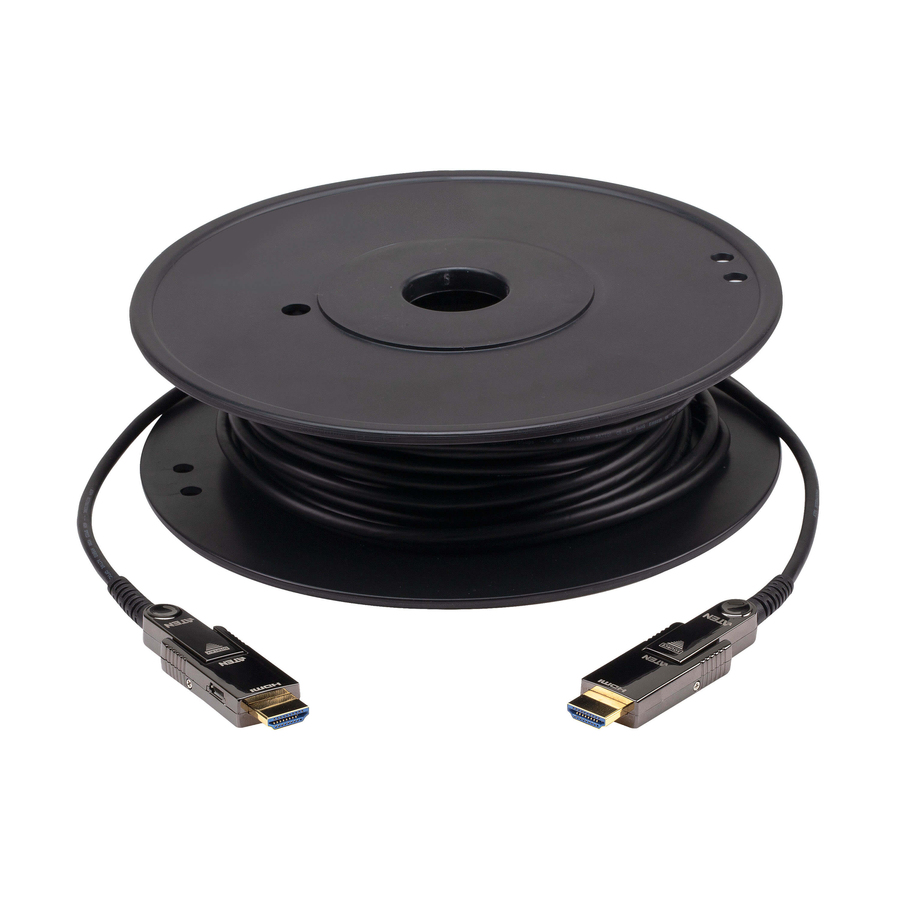

ATEN VE7832 optical cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cable is available in 15 m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cable guarantees lossless audio signal transmissions.
Engineered to meet the latest trend of integrator-friendly design, the VE7832 optical cable features pluggable gender and gold-plated connectors. Therefore, the cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
- HDMI (3D, Deep Color, 4K, HDR, HEC, ARC) ; HDCP 2.2 compliant
- Extends True 4K signals 4096 x 2160 @ 60 Hz (4:4:4) up to 10 m
- Supports HDR
- Supports HDMI Ethernet Channel (HEC) - combines audio, video, and data streams into a cable to simplify the set-up
- Supports Audio Return Channel (ARC) - connects TV and audio system, eliminating the need for an additional cable
- Reduced EMI and RFI for lower noise interference
- Supports multi audio channel - Dolby TrueHD and DTS-HD Master Audio
- Robust cable pulling strength (Max. 10 kg) and compression load resistance (Max. 50 kg)
- Additional power source is available via Micro USB cable for better compatibility
- Gold-plated connectors for reliable transmissions
- Compliant with International Flame Retardant Standards : UL CMP-OF (Plenum)
- Pluggable gender for easy installation
- Plug-and-play
| Brand | |
|---|---|
| Brand | ATEN Technology |
| Screen / Display | |
|---|---|
| Supported Resolution | 4096 x 2160 |
| General Features | |
|---|---|
| Data Transfer Rate | 18 Gbit/s |
| Manufacturer | ATEN Technology, Inc |
| Cables | |
|---|---|
| Cable Length | 32.81 ft |
| Cable Type | Fiber Optic |
| Connector Type on First End | HDMI Type A Digital Audio/Video - Male |
| Connector on First End Details | 1 x HDMI 19-pin HDMI Type A Digital Audio/Video - Male |
| Connector Type on Second End | HDMI Type A Digital Audio/Video - Male |
| Connector on Second End Details | 1 x HDMI 19-pin HDMI Type A Digital Audio/Video - Male |
| Connector Plating | Gold |
| Jacket Material | Plenum |
| Jacket Type | CMP |
| Shielding Material | Aluminum Mylar |
| American Wire Gauge | 28 AWG |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
