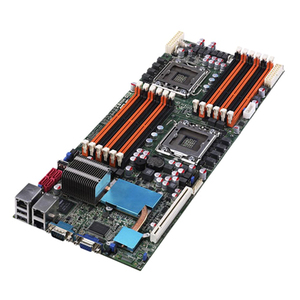

Z8NH-D12 is quite slim with its 6.3" x 16.7" form factor, which is easy for fitting two serverboards in one rack-mount chassis. With Intel Xeon 5500 series processor, DDR3 memory and ASUS innovative features such as EPU and ASMB4-iKVM, Z8NH-D12 still offers outstanding performance to customers.
- Compatible Intel Xeon Hexa-core processor offers reliability and performance in a multithreading environment
- DDR3 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- RAID supported levels provide data reliability and fault tolerance
- 3 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Xeon Dual-Core |
| Total Processor Supported | 2 |
| Processor Socket | Socket B LGA-1366 |
| GPU / Graphics | |
|---|---|
| Graphics Controller Memory | 8 MB |
| Graphics Controller Model | AST2050 |
| Onboard Video | On-board Video Chipset |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR3 SDRAM |
| Memory Speed Supported | 800 MHz |
| Memory Standard | DDR3-800/PC3-6400 |
| Number of Memory Slots | 12 |
| Maximum Memory Supported | 96 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 1+0 |
| USB Ports | |
|---|---|
| Total Number of Onboard USB P | 1 |
| Number of Onboard USB 2.0 Por | 1 |
| Total Number of USB Ports | 3 |
| Number of USB 2.0 Ports | 3 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Gigabit Ethernet | Yes |
| General Features | |
|---|---|
| Onboard LEDs Header | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | 5500 |
| Controller Type | Serial ATA/300 |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Total Number of PCI Express S | 1 |
| Total Number of Expansion Slots | 1 |
| PCI Express Standard | PCI Express 2.0 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Number of SATA Interfaces | 6 |
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
