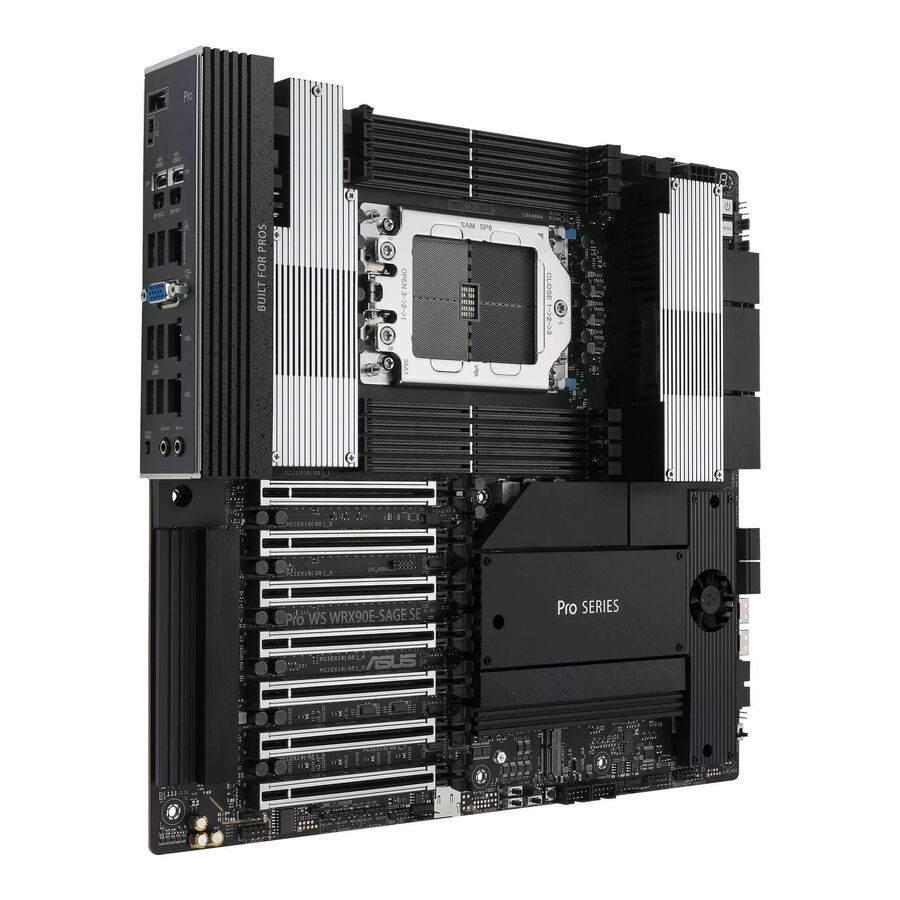

AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim
- AMD sTR5 socket supports up to 96-core CPUs:Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
- Ultrafast connectivity:Seven PCIe®5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4®40Gbps Type-C®and SlimSAS NVMe support.
- CPU and memory overclocking:Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
- Robust power and thermal design:32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
- PCIe Q-release Slim:Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
- Server-grade IPMI remote management and onboard BMC:Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
- Trusted stability:Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
- Ryzen Threadripper PRO processors supported for faster, dependable performance and better access to data and information
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
- RAID supported levels provide data reliability and fault tolerance
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Assure a solid foundation for PC components and magnify the performance with the support of multiple processors on SSI EEB workstation motherboard
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Ryzen Threadripper PRO |
| Total Processor Supported | 1 |
| Processor Socket | Socket sTR5 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 8 |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| USB Ports | |
|---|---|
| Total Number of Onboard USB P | 7 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 9 |
| Number of USB4 Ports | 2 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| Audio | |
|---|---|
| Audio Channels | 5.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | SSI EEB |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 7 |
| Total Number of PCI Express S | 7 |
| Total Number of Expansion Slots | 7 |
| PCI Express Standard | PCI Express 5.0 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 4 |
| Number of SATA Interfaces | 4 |
| Miscellaneous | |
|---|---|
| Product Name | PRO WS WRX90E-SAGE SE Workstation Motherboard |
