ASUS Pro WS B850M-ACE SE AMD Micro-ATX motherboard, with server-grade IPMI management, PCIe 5.0 x 16, PCIe 5.0 M.2, PCIe 5.0 MCIO, U.2 connector, 10Gb and 2.5Gb Ethernet, ready for USB4®
- Ready for Advanced AI PCs: Built to power next-gen AI workloads with robust performance, ultrafast connectivity, and future-proof architecture.
- AMD AM5 Socket Support: Compatible with AMD Ryzen™ 9000/8000/7000 Series and AMD EPYC™ 4005 Series processors.
- Ultrafast Connectivity: Two PCIe®5.0/4.0 x16 slot (one at x4), 10 Gb & 2.5 Gb LAN ports, two PCIe®5.0 x4 M.2 slots, front USB 20Gbps Type-C®and MCIO NVMe support.
- Server-grade IPMI Remote Management: Supports onboard BMC AST2600, along with ASUS Control Center Express IT management software for real-time monitoring and management.
- Proven Reliability & Stability: Extensively validated with broad compatibility, a comprehensive QVL, and tested for 24/7 operation.

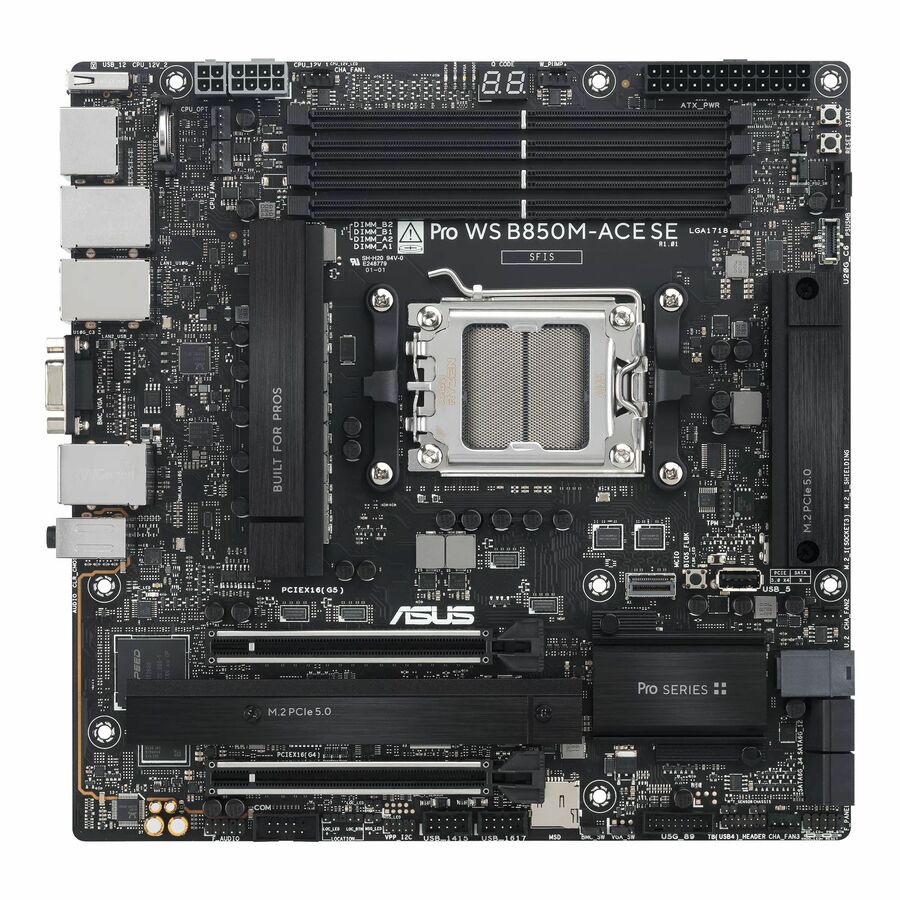

Pro WS B850M-ACE SE
The Pro WS B850M-ACE SE empowers workstation users of all levels by maximizing the performance of the latest AMD Ryzen™ processors via 8+2+1 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including a front USB 20Gbps Type-C® connector, plus 10Gb and 2.5Gb Ethernet.
This workstation motherboard is an ideal choice for content creation, AI and deep learning, and IT management.
Front USB 20Gbps Type-C® Connector
for ultrafast data transmission
Dual Ethernet
10Gb and 2.5Gb LAN
8+2+1 Power Stages
rated for up to 80A each
Remote Control Solution
onboard BMC
ASUS Control Center Express
PCIe® 5.0
full support for next-gen graphics cards
Easy PC DIY
M.2 Q-Latch and ASUS DriverHub
DDR5 Support
effortlessly apply to unleash performance
24/7 Reliability
168 hours, 45°C and 80% humidity
Exclusive AI Technology
AI Cache Boost for faster local LLM performance
Ultrafast Networking
Featuring onboard dual Ethernet ports-one Realtek 10Gb LAN and one Intel® 2.5Gb LAN-the Pro WS B850M-ACE SE delivers high-speed network connectivity for demanding workflows. Additionally, it includes a dedicated Realtek 1Gb Ethernet port exclusively for BMC and IPMI management
PCIe 5.0 Support
The Pro WS B850M-ACE SE offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
PCIe 5.0 Expansion Slot
The Pro WS B850M-ACE SE is equipped with one PCIe 5.0 expansion slot, offering incredible speeds of up to 64GB/s for compatible devices. It is also protected with SafeSlot retention brackets to bear the brunt of massive graphics cards, if need be.
Remote Control Solution | Onboard BMC
The Pro WS B850M-ACE SE workstation motherboard features compatibility with BMC connections, and it is bundled with ASUS Control Center Express software to provide comprehensive in-band and out-of-band management features for businesses and industries.
- EPYC processors supported for faster, dependable performance and better access to data and information
- With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
- RAID supported levels provide data reliability and fault tolerance
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
- Thunderbolt host interface lets you move data between your devices and your computer with unprecedented speed
- Micro ATX form factor for your accessibility convenience and simplicity of usage for Workstation Motherboard
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Ryzen 9 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 5600 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Error Checking | ECC |
| Maximum Memory Supported | 256 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| USB Ports | |
|---|---|
| Total Number of Onboard USB P | 7 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 7 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Thunderbolt Ports | |
|---|---|
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 3 |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Micro ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Chipset Model | B850 |
| AI-powered | Yes |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Brand Compatibility | AMD |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 3 |
| Total Number of PCI Express S | 3 |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard | PCI Express 5.0 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 2 |
| Number of SATA Interfaces | 4 |
| Miscellaneous | |
|---|---|
| Product Name | PRO WS B850M-ACE SE Workstation Motherboard |
