Tinker Board | ARM-based SBC with market-leading performance

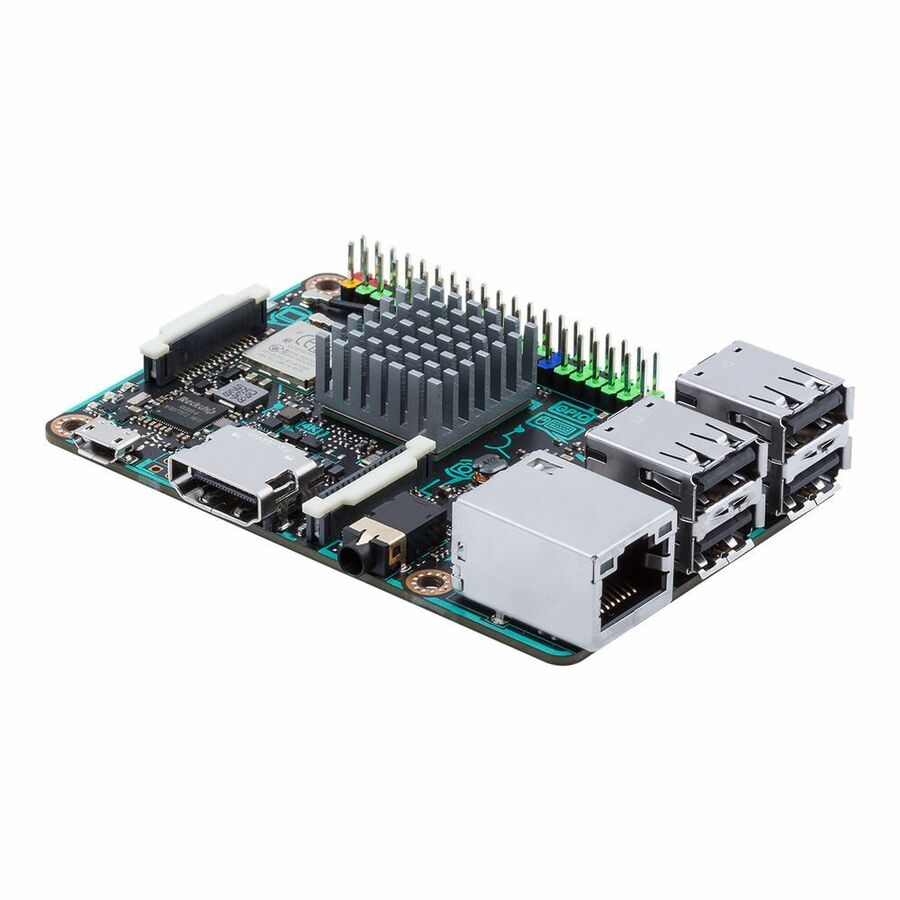

Tinker Board is a Single Board Computer (SBC) in an ultra-small form factor that offers class-leading performance while leveraging outstanding mechanical compatibility. The Tinker Board offers makers, IoT enthusiasts, hobbyists, PC DIY enthusiasts and others a reliable and extremely capable platform for building and tinkering their ideas into reality.
- DDR3 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11a/b/g/n wireless standard support
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | ARM |
| Processor Type | Cortex A17 |
| Total Processor Supported | 1 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 1.80 GHz |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | ARM |
| Graphics Controller Model | Mali-T764 |
| Onboard Video | CPU Dependent Video |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Standard Memory | 2 GB |
| Memory Technology | DDR3 SDRAM |
| Number of Memory Slots | 2 |
| Maximum Memory Supported | 2 GB |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 4.0 |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 4 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio Ports | |
|---|---|
| S/PDIF | Yes |
| Card Reader | |
|---|---|
| Memory Card Reader | Yes |
| Memory Card Supported | microSD |
| Size / Dimensions | |
|---|---|
| Form Factor | Ultra Small |
| General Features | |
|---|---|
| Chipset Manufacturer | Rockchip |
| Chipset Model | RK3288 |
| Manufacturer | ASUS Computer International |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
