Experience Lightning-Fast Speed and Versatile Connectivity

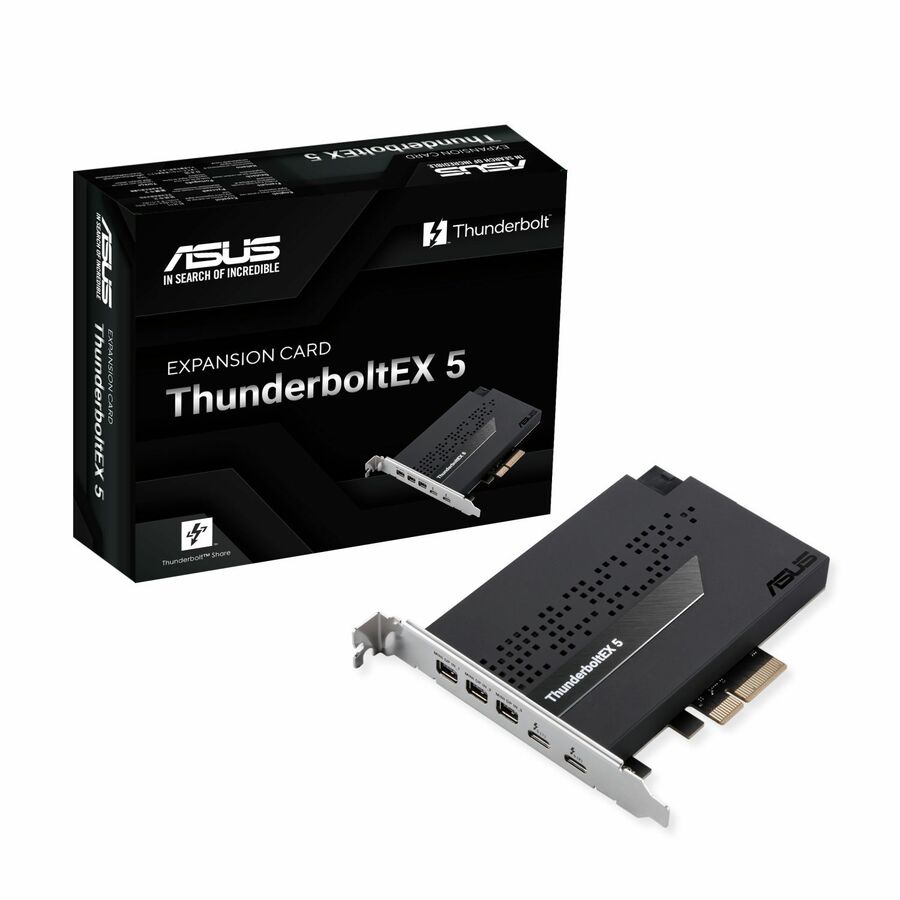

The ASUS ThunderboltEX 5 card offers up to 120 Gbps of Thunderbolt™ 5 bandwidth, support for DisplayPort™ 2.1 with a compatible GPU, USB4® compatibility, plus support for up to five Thunderbolt™ devices in a daisy-chain and up to 130 total watts of fast charging.
Speeding Thunderbolt™ 5 Support | Thunderbolt™ 5 120Gbps
for superfast data transfers and video output
Flexible fast charging
Charge up to 130 watts
Flexible FastCharge allows up to 130W combined output when the system is fully powered on (S0 mode).
Daisy chain
Up to five Thunderbolt™ devices per port
DisplayPort™ 2.1
Supports up to three 8K displays at 60Hz with DSC
One Card, 6X The Bandwidth | Seamless Dual-PC Sharing with Thunderbolt™ Share
Experience a revolutionary way to interact with two PCs using Thunderbolt™ Share-the ultrafast connectivity solution that transforms your dual-PC setup. Seamlessly share screens, keyboards, mice, storage and files between two computers, with the unparalleled speed of Thunderbolt™ technology.
- Control Other Computer
- Sync Files
- Drag and Drop
- Transfer Data to a New Computer
One Cable, Multiple Devices
Simplify your setup by daisy-chaining multiple Thunderbolt™ devices to one Thunderbolt™ 5 port.
Daisy-Chain up to 5 Thunderbolt™ Devices Per Port
3 Thunderbolt™ devices + 2 Thunderbolt™monitors
Daisy-Chain up to 5 Thunderbolt™ devices per port
4 Thunderbolt™ devices + 1 Thunderbolt™ monitor
- Intel®certified Thunderbolt™ 5 add-on card
- Dual USB Type-C®ports support up to 130 watts total of fast charging, and up to 96W for one device
- Up to five Thunderbolt™ devices can be daisy-chained
- Up to 120 Gbps of bandwidth for superfast data transfers and video output
- DisplayPort™ 2.1 port supports up to three 8K 60 Hz displays with DSC
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| USB Version | 2.0 |
| USB Connector Type | Type-C |
| Number of USB 2.0 Ports | 1 |
| Thunderbolt Ports | |
|---|---|
| Number of Thunderbolt Ports | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Data Transfer Rate | 15 GB/s |
| Manufacturer | ASUS Computer International |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 4.0 x4 |
