High-density server with great scalability for High-Performance Computing (HPC)
- 2U4N design with great scalability for compute-intensive workloads
- Robust native storage interface support with up to 24 SATA/SAS drives or a combination of up to 8 NVMe SSDs and 16 SATA/SAS drives.
- Comprehensive IT infrastructure management solution - ASUS Control Center and ASMB9-iKVM
- Exclusive thermal radar technology for energy efficiency
- Simplified maintenance and management
2U4N design with great scalability for compute-intensive workloads

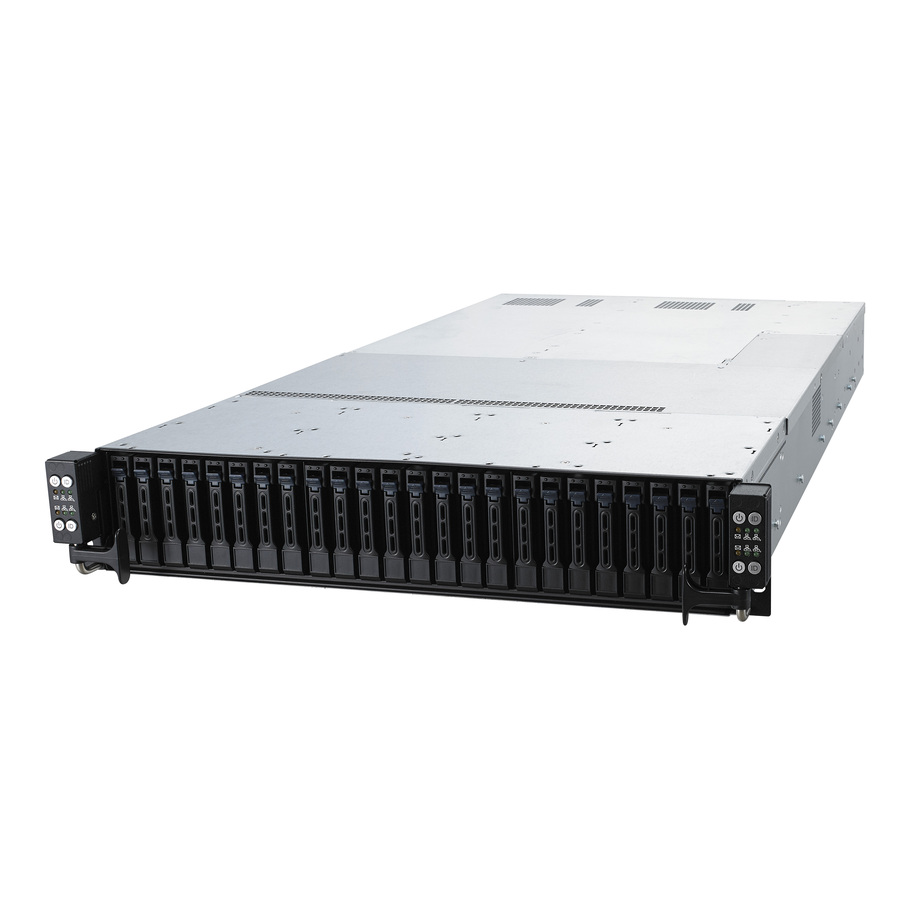

RS720Q-E9-RS24-S is the ideal server solution for compute-intensive workloads that require scalability, density and performance, including high-performance computing (HPC), data analytics, datacenter operations and private cloud applications. Featuring a modular 2U chassis containing four server nodes that handle twice the workload per rack unit, RS720Q-E9-RS24-S delivers incredible performance with reduced space requirement and operating costs.
Robust native storage interface support
RS720Q-E9-RS24-S natively supports up to 24 hot-swappable SATA and SAS drives or a combination of up to 16 SATA and SAS drives plus eight direct-connected NVMe SSDs for high-speed data access. IT administrators can also add 2.5" HDDs or SSDs to the front hot-swap bays for even more storage. Additional HBA cards are not required, leaving expansion slots available for other components.
Comprehensive IT infrastructure management solution
RS720Q-E9-RS24-S features an embedded ASMB9-iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management.
Powered by the latest 2nd Gen Intel Xeon Scalable processors
Each node of RS720Q-E9-RS24-S is engineered to run two of the latest 2nd Gen Intel Xeon Scalable processors, featuring up to total 28 cores per processor and 165W power consumption. This 4-node server features 48 memory slots in total that fit up to 6TB of DDR4 2666 memory for intensive computing. RS720Q-E9-RS24-S offers breakthrough performance with the latest Intel Optane™ DC persistent memory with an over 88% gain in input/output operations per second (IOPS) compared with the same configuration in SSD.
Exclusive thermal radar technology for energy efficiency
RS720Q-E9-RS24-S features a smart Thermal Radar design with more ambient thermal sensors for the CPU, memory, NVMe SSD, PSU and front-panel board that provide improved temperature monitoring and enable dynamic fan speed adjustment for better power efficiency. This smart thermal design reduces fan power consumption by up to 20% and eliminates the power-sharing board for improved efficiency and lower operation costs.
Simplified maintenance and management
Easy-to-swap nodes
With accessible computing nodes that each have their own power button, IT administrators can easily swap malfunctioning nodes without affecting the operation of other nodes.
Visible Q-Code
A visible Q-Code (port 80) LED display provides easy monitoring of the entire boot process, from power-on until the operating system loads.
Quick initialization guidance
Instant system initialization information and diagnostic results are available for efficient IT operation and easy troubleshooting.
- Barebone System is compact, stylish, space-efficient, and portable, ideal for daily office and home use
- Windows Server 2016 OS support includes creative and productive tools you need for smooth workflows
- Perform computational tasks efficiently with Xeon Platinum processor for smooth and reliable performance
- 12Gb/s SAS interface offers exceptional speed and reliability, ideal for enterprise-grade storage and high-performance systems
- Rack-mountable barebone system ensures clutter-free, organized setups with improved accessibility and efficiency
- With 2 USB ports, connect or disconnect devices without shutting down the system for convenience
- Gigabit Ethernet is highly efficient for large file transfers, making it ideal for backups and heavy data workflows
- DDR4 SDRAM slot reduces processor idle time, improving multitasking and overall computing speed
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Xeon Bronze |
| Number of Processors Supported | 2 |
| 64-bit Processing | Yes |
| Processor Socket | Socket P LGA-3647 |
| GPU / Graphics | |
|---|---|
| Graphics Memory Capacity | 64 MB |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2933/PC4-23466 |
| Total Number of Memory Slots | 12 |
| Maximum Memory Supported | 1.50 TB |
| Storage | |
|---|---|
| Intel Optane Memory Ready | Yes |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 2 |
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Number of Nodes | 4 |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Controller Type | 12Gb/s SAS |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 2 |
| Total Number of Expansion Slots | 2 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 24 |
| Video Ports | |
|---|---|
| Number of VGA Ports | 1 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
