Optimized for rack-mounting

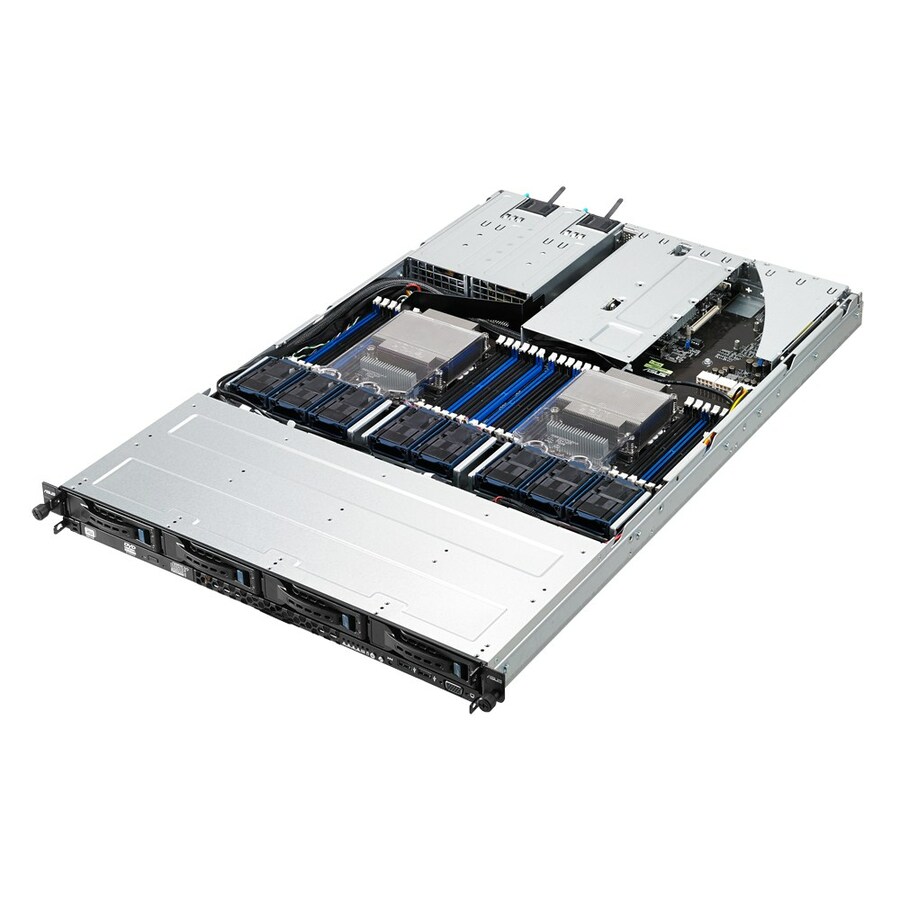

RS700-E8-RS4's internal layout is optimized for rack-mounted configurations, with both the CPU and memory placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for increased efficiency- and that makes it perfect for datacenters.
- Upgrade an existing PC easily to improve performance and extend its usability for modern applications
- Windows Server 2012 R2 OS support offers a dependable, user-friendly interface for easy app usage and maximum productivity
- Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems
- Serial ATA interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
- Rack-mountable barebone system offers easy installation and convenient access for streamlined maintenance
- Provides 2 USB ports for responsive and expanded device connections without interruptions
- Gigabit Ethernet is highly efficient for large file transfers, making it ideal for backups and heavy data workflows
- DDR4 SDRAM slot synchronizes signals for efficient data throughput, ensuring fast and reliable system performance
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Xeon |
| Number of Processors Supported | 2 |
| 64-bit Processing | Yes |
| Processor Socket | Socket LGA 2011-v3 |
| GPU / Graphics | |
|---|---|
| Graphics Memory Capacity | 32 MB |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2133/PC4-17000 |
| Total Number of Memory Slots | 24 |
| Maximum Memory Supported | 1.50 TB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 2 |
| Maximum Power Supply Wattage | 800 W |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | C612 |
| Controller Type | Serial Attached SCSI (SAS) |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Number of PCI Express x8 Slots | 3 |
| Total Number of Expansion Slots | 4 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 5 |
| Number of 3.5" Bays | 4 |
| Number of External 5.25" Bays | 1 |
| Misc Ports | |
|---|---|
| Number of SAS Interfaces | 2 |
| Number of SATA Interfaces | 2 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
