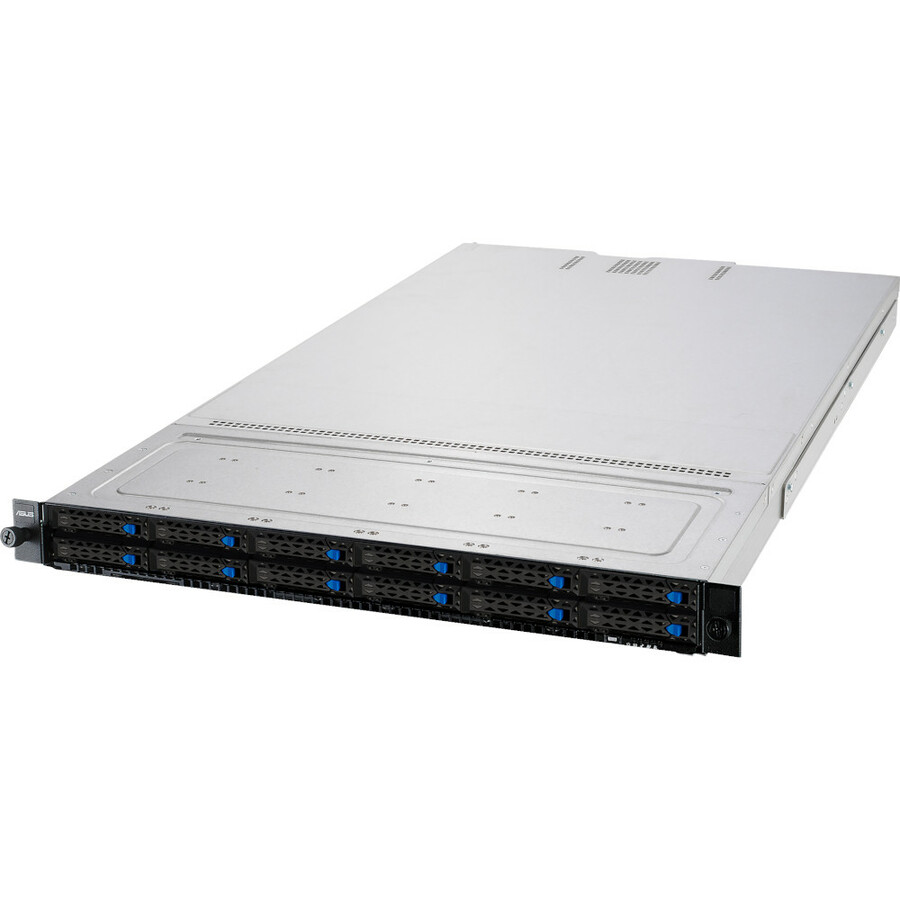

1U dual-socket server powered 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, one dual-slot GPU, 12 NVMe, four PCIe lots, one OPC 3.0, one M.2 and ASUS ASMB10-iKVM.
- Powered by dual-socket 3rd Gen Intel Scalable processors, with 32 DIMMs and support for a maximum TDP of up to 270 W per socket
- GPU-optimized design allows one dual-slot GPU for AI workloads
- Up to 12 all-flash NVMe drives on front panel to enable extensive storage and high-throughput performance
- Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
- Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options
- Flexible air- and liquid-cooling solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
- High power efficiency with redundant 1600 W or 1200 W 80 Plus® Titanium/Platinum power supplies
- Barebone System is compact, stylish, space-efficient, and portable, ideal for daily office and home use
- Perform computational tasks efficiently with Xeon Bronze processor for smooth and reliable performance
- Serial ATA/600 interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
- Rack-mountable barebone system offers easy installation and convenient access for streamlined maintenance
- Provides 4 USB ports for responsive and expanded device connections without interruptions
- Gigabit Ethernet port supports ultra-fast network speeds for smooth data transfer and improved system performance
- DDR4 SDRAM slot reduces processor idle time, improving multitasking and overall computing speed
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Xeon Platinum |
| Number of Processors Supported | 2 |
| 64-bit Processing | Yes |
| Processor Socket | Socket LGA-4189 |
| GPU / Graphics | |
|---|---|
| Graphics Memory Capacity | 64 MB |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Maximum Memory Supported | 1 TB |
| Storage | |
|---|---|
| Supported Storage Drive Inter | SAS |
| RAID Supported | Yes |
| Intel Optane Memory Ready | Yes |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 2 |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 4 |
| Number of USB 3.1 Gen 1 Ports | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Controller Type | 12Gb/s SAS |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 3 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Slots | 4 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 12 |
| Video Ports | |
|---|---|
| Number of VGA Ports | 2 |
| Misc Ports | |
|---|---|
| Number of SATA Interfaces | 2 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
