Top performance in industry-standard SPEC benchmarks

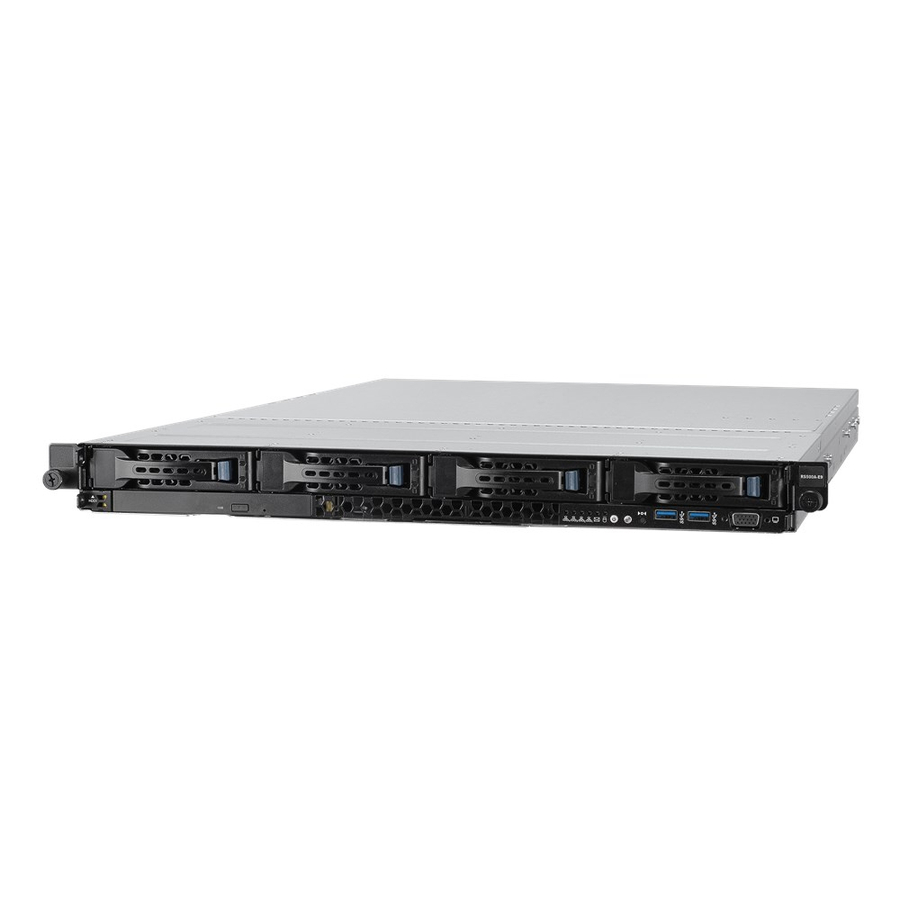

RS500A-E9-RS4-U is built on AMD EPYC™ platform to deliver incredible server performance. With up to 32 cores per CPU and up to 64 threads, RS500A-E9-RS4-U packs incredible power in minimal space. 16 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor
Flexible expansion for better storage and networking
RS500A-E9-RS4-U features one PCIe x16 and one PCIe x8 slots to deliver parallel computing power and one OCP 2.0 Mezzanine connector to support high-speed LAN card. This flexibility supports diverse storage and networking applications and ensures future expandability and high scalability in a 1U server.
RS500A-E9-RS4-U fits four 3.5-inch hot-swappable bays with choice of 32Gbps NVMe SSDs, 12Gbps SAS or 6Gbps SATA drives. One M.2 slot accommodate 22110-size SSDs with support for additional OS storage and PCIe Gen3 x4 bandwidth - 5.3X faster than 6 Gb/s SATA III - for faster boot speeds.
Exclusive Thermal Radar technology for energy efficiency
RS500A-E9-RS4-U features ASUS-exclusive Thermal Radar technology with ambient sensors placed in CPU, memory, NVMe, SSD, OCP mezzanine connector for internal and external temperature monitoring, and dynamic fan-curve adjustment, which lowers fan power consumption by up to 20% and reduces total cost of ownership - ideal for data centers with extreme workloads.
Redundant Platinum PSU support
RS500A-E9-RS4-U supports redundant 770W 80 Plus Platinum power supply, which are 96%+ efficient, directly reducing operating costs and capital expenses. The 1+1 power-supply design allows the server to keep working even if one power supply requires maintenance, enabling uninterrupted operation.
Comprehensive IT Infrastructure Management
RS500A-E9-RS4-U features an embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.
The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics - even if the operating system is down or offline - through a user-friendly, web-based graphical interface that works with all major browsers.
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
ASUS ProCool connector
ASUS ProCool power connectors are designed without any hollow areas, enabling lower impedance, faster heat dissipation and cooler operating temperatures for reduced power loss and increased cost savings.
- Complete IT infrastructure management with ASMB9 out-of-band remote management and in-band ASUS Control Center
- Easy maintenance and debugging with internal USB 3.0 port and microSD card support for easier access
- Exclusive Thermal Radar energy-efficiency technology reduces fan power consumption by up to 20%
- One M.2 slot accommodate 22110-size SSDs for faster boot speed
- Ultrafast connectivity with OCP 2.0 Mezzanine card support
- Designed for flexible storage with four NVMe, SAS or SATA drives
- 180W CPU with 16 DIMM support
- High power-efficiency with redundant 770W 80 Plus Platinum power supply
- Powered by the AMD EPYC™ 7000 processors
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | EPYC |
| Number of Processors Supported | 1 |
| Processor Socket | Socket SP3 |
| GPU / Graphics | |
|---|---|
| Graphics Memory Capacity | 64 MB |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 16 |
| Maximum Memory Supported | 2 TB |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 2 |
| Input Voltage | 230 V AC |
| Maximum Power Supply Wattage | 770 W |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Controller Type | 12Gb/s SAS |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Number of PCI Express x8 Slots | 1 |
| Total Number of Expansion Slots | 3 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
