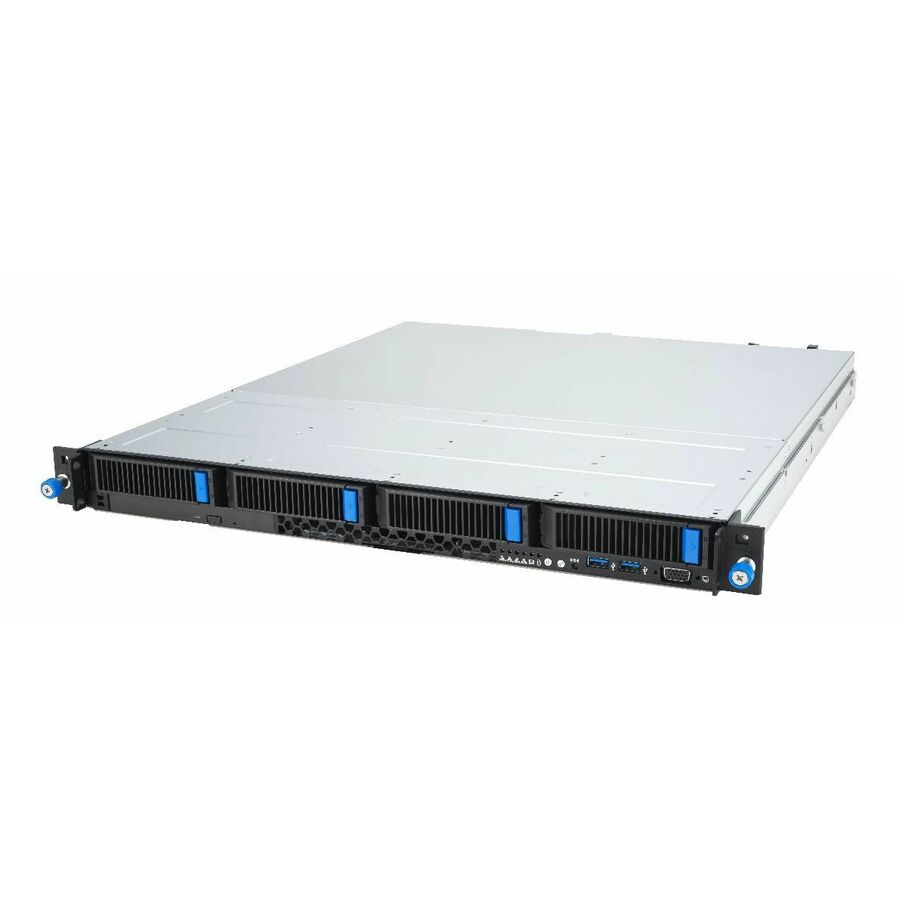

RS300-E12-RS4
ASUS RS300-E12-RS4 in an Intel®Xeon®E-2400 and Intel®Xeon®6300 1U server with support for four DDR5 ECC UDIMM, four NVMe, one M.2, one PCIe®5.0 slot and one PCIe 4.0 slot, plus dual LAN, 80 PLUS®Platinum redundant power supplies, Intel Platform Firmware Resilience (PFR), onboard ASUS ASMB11-iKVM and chassis-intrusion alert.
Key Features
- Powered by eight-core Intel Xeon E-2400-series and Intel Xeon 6300 series processor with support for up to 95 W TDP
- Four 3.5-inch or 2.5-inch hot-swap drives on front panel and one M.2 to enable extensive storage
- Up to one PCIe 5.0 slots and one PCIe 4.0 proprietary slot to drive higher bandwidth
- High power efficiency with redundant 450 W 80 PLUS Platinum power supplies
- Dual Intel I210-AT gigabit Ethernet with teaming support
- Onboard ASUS ASMB11-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
- Chassis-intrusion for enhanced physical security
Intel Xeon E-2400 processors/Intel Xeon 6300 processors
Designed for small- to medium-sized businesses (SMBs) and cloud-service providers, offering robust and secure solutions. These processors support up to eight cores and 16 threads, with a maximum frequency of 5.6 GHz and a 95 W TDP, ensuring rapid data processing and application responsiveness. They support up to 128 GB of DDR5 4400 MT/s memory (Intel Xeon E-2400) or up to 4800 MT/s memory (Intel Xeon 6300) and PCIe 5.0 interfaces, providing server-grade 24/7 reliability for business-critical services and customer data, and cost-effective performance for entry-level bare-metal cloud services.
PCIe 5.0 ready
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
Redundant Platinum PSU support
RS300-E12-RS4 supports redundant 450W 80 PLUS Platinum power supplies, which are 96%+ efficient, directly reducing operating costs and capital expenses. The 1+1 power-supply design allows the server to keep working even if one power supply requires maintenance, enabling uninterrupted operation.
- Xeon processor ensures timely and efficient performance for everyday computing needs
- Windows Server 2025 OS support provides a powerful platform to efficiently run routine applications without interruptions
- Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems
- With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
- ASPEED AST2600 shared graphic card ensures smooth, lag-free performance for everyday computing and multitasking
- Rack-mountable server barebone system maximizes space utilization while providing easy access to essential components
- Connect USB-enabled devices via 5 USB ports for seamless data sharing and reliable performance
- Gigabit Ethernet is highly efficient for large file transfers, making it ideal for backups and heavy data workflows
- With DDR5 SDRAM memory technology, experience faster data transfer rates and enhanced overall system performance
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Xeon |
| Processor Supported | Pentium |
| Number of Processors Supported | 1 |
| 64-bit Processing | Yes |
| Processor Socket | Socket LGA-1700 |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2600 |
| Graphics Memory Capacity | 64 MB |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4400/PC5-35200 |
| Total Number of Memory Slots | 4 |
| Maximum Memory Supported | 128 GB |
| Storage | |
|---|---|
| Supported Storage Drive Types | HDD |
| Supported Storage Drive Inter | Serial ATA III |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 2 |
| Maximum Power Supply Wattage | 450 W |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | C262 |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Total Number of Expansion Slots | 3 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 5 |
| Number of 3.5" Bays | 4 |
| Number of External 5.25" Bays | 1 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 2 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 1 |
| Number of Serial Ports | 1 |
