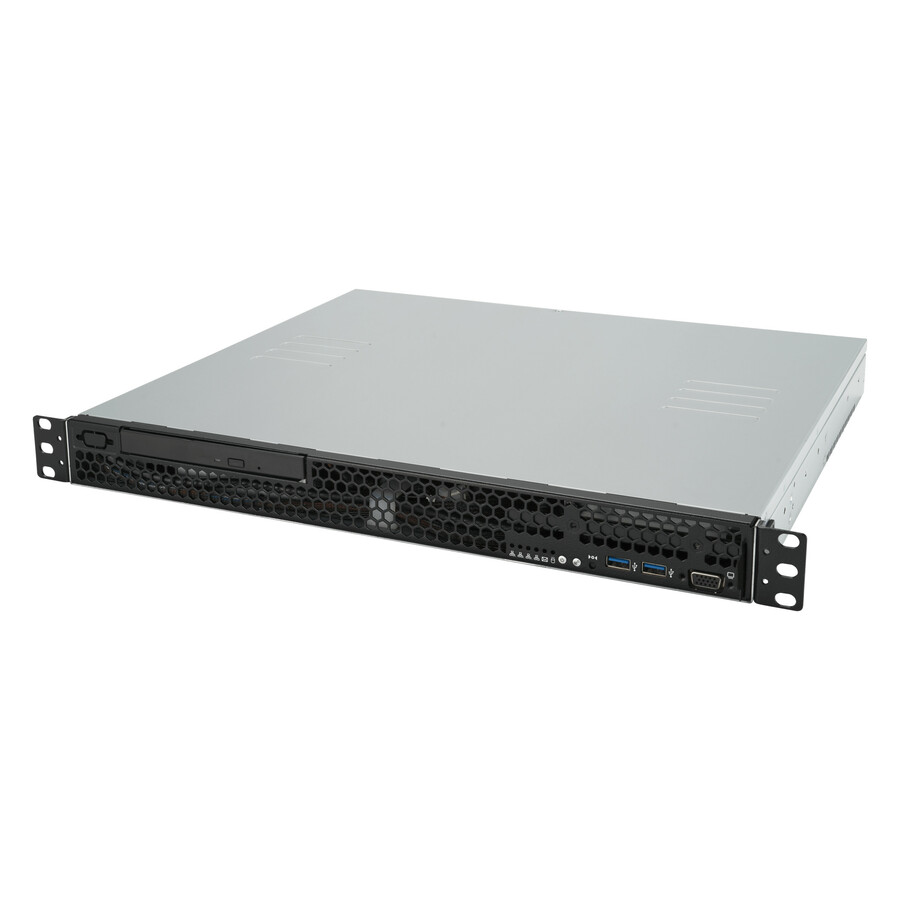

RS100-E11-PI2
Intel® Xeon® E-2300 1U short-depth server with four DIMM, one M.2, two PCIe 4.0 slots, two NVMe, dual LAN , Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM
Key Features
- Powered by the Intel® Xeon® E platform
- 95W CPU and up to 128GB memory support
- Flexible storage expandability with up to 5 storage devices
- M.2 slot accommodate 2280-size SSDs for faster boot speed
- Dual Intel®Gigabit Ethernet with teaming support
- Comprehensive I/O connectivity to meet different needs
- Complete server management with ASUS Control Center
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS100-E11-PI2 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.
Enhanced security
ASUS RS100-E11-PI2 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition, all RS100-E11-PI2 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
High-resolution HDMI monitoring
RS100-E11-PI2 server features a HDMI 1.4 port directed from CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.
Dual Ethernet Bandwidth
Featuring dual onboard LAN ported by Intel I210-AT Ethernet Controller, RS100-E11-PI2 server provides server-grade connectivity and supports high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications
