Intel® Z690 LGA 1700 ATX motherboard with PCIe® 5.0, 14+1 DrMos, DDR5 memory support, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel® 2.5 Gb Ethernet, three M.2 slots with heatsinks, PCIe® 4.0 NVMe® SSD support, M.2 backplates, USB 3.2 Gen 2x2 Type-C®, SATA and AURA Sync RGB lighting
- Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
- Optimal Power Solution: 14+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, three onboard M.2 heatsinks, and M.2 backplates for two M.2 slots
- High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
- Intelligent Control: ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

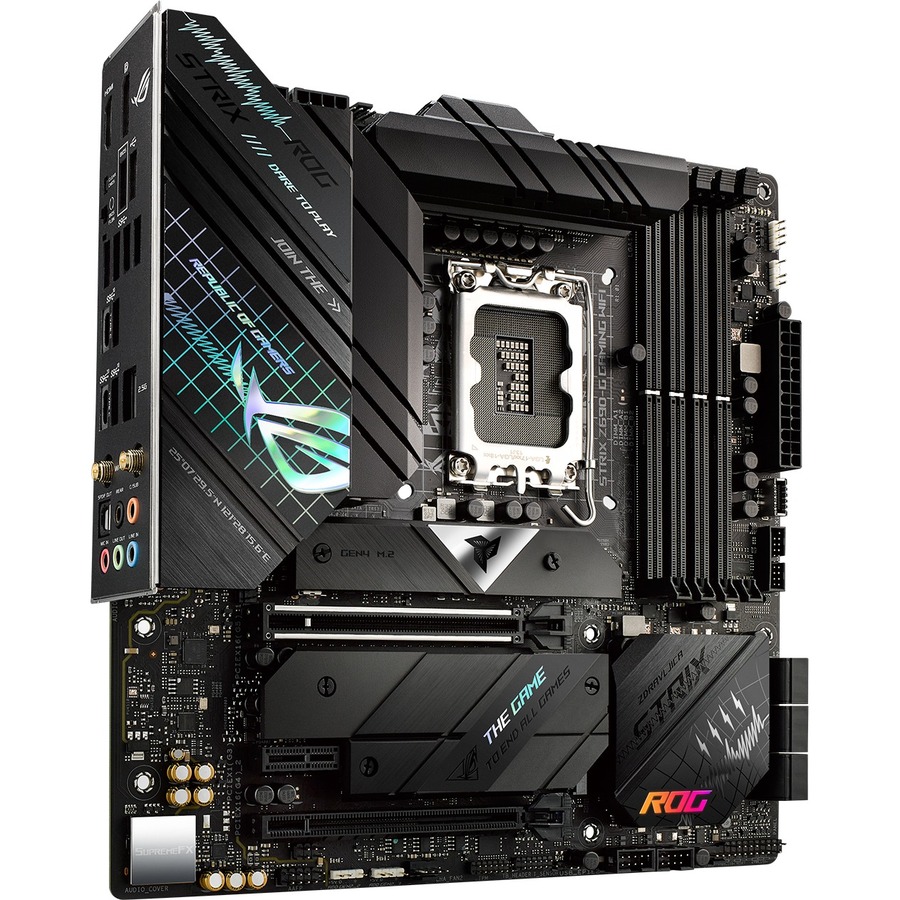

ROG STRIX Z690-G GAMING WIFI
ROG Strix Z690-G Gaming WiFi is the premiere choice for enthusiasts who enjoy building compact mATX setups. Premium-grade power delivery, cooling, and the latest networking standards have been packed in to ride alongside DDR5 and PCIe 5.0, unleashing the full force of 12th Gen Intel® Core™ processors. And layered on top, there's a stack of ASUS-exclusive intelligent controls to optimize every aspect of system performance.
- Compatible Intel Core i5 processor provides you with the solid performance to watch videos and play games, while its adaptability makes you more productive
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax/az wireless standard support enables a hassle-free peripheral connection
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Micro ATX form factor for your accessibility convenience and simplicity of usage for Desktop Motherboard
- With 2 USB 2.0 ports, transfer several documents without error
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Core i9 |
| Total Processor Supported | 1 |
| Processor Generation Supported | 12th Gen |
| Processor Socket | Socket LGA-1700 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Maximum Memory Supported | 128 GB |
| Storage | |
|---|---|
| Intel RST | Yes |
| RAID Supported | Yes |
| Intel Optane Memory Ready | Yes |
| RAID Levels | 10 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 2 |
| Total Number of Onboard USB P | 7 |
| Number of Onboard USB 2.0 Por | 4 |
| Number of Onboard USB 3.2 Por | 3 |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| 2.5Gigabit Ethernet | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Micro ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | Z690 |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 2 |
| Total Number of PCI Express S | 3 |
| Number of PCI Express x1 Slots | 1 |
| Total Number of Expansion Slots | 3 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 3 |
| Number of SATA Interfaces | 6 |
