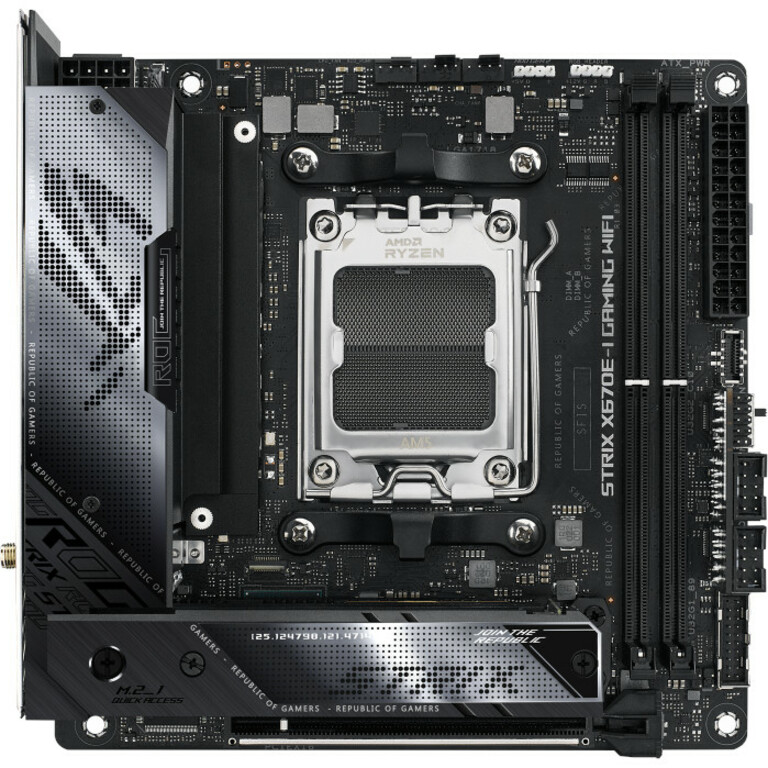

STRIX X670E-I GAMING WIFI
The ROG Strix X670E-I Gaming WiFi crams the latest tech into the diminutive mini-ITX footprint and then branches out with the ROG Hive to put vital controls and I/O at your fingertips. At motherboard level, PCIe 5.0 slots for graphics and storage ride alongside dual-channel DDR5 to bring large-scale bandwidth to games and CPU-intensive workloads. Heavyweight power delivery and vertically-stacked heatsinks crush thermals and lay a potent foundation for exclusive ROG overclocking tools to push performance boundaries. With all this and more, this tiny titan dishes up a space-saving AM5 build that allows you to comfortably host larger displays and a spread of ROG gaming peripherals on your desktop.
ALL-ROUND PERFORMANCE
Robust power delivery, innovative overclocking tools, and comprehensive cooling controls make the ROG Strix X670E-I more than a match for larger rivals. Load up and freely customize your AMD Ryzen™ 7000 Series processor to shred through everything.
PCIE PERFORMANCE
The ROG Strix X670E-I neatly increases mini-ITX expansion capabilities with vertically-stacked PCIe 5.0 and PCIe 4.0 M.2 slots. PCIe 5.0 support also extends to the x16 slot, which is reinforced with SafeSlot, providing structural support and bandwidth to handle large and powerful next-gen GPUs.
LEADING CONNECTIVITIY
The ATX experience thoughtfully scaled into mini-ITX: build easier the ROG FPS-II card, and grace your desktop with the ROG Hive, dual USB4® ports, and support for the latest WiFi 6E standard.
ROG STRIX HIVE
The all-new ROG Strix Hive brings critical controls and I/O within arm's reach, moving them from the cramped quarters of an SFF chassis to a compact peripheral that sits on the desktop. DIY-friendly buttons and diagnostic LEDs are brought front and center along with a large volume dial. On the sides, a varied group of I/O ports handle audio input and output and provide convenient connectivity for grab-and-go peripherals.
PLAY IN STYLE
The dark ROG Strix colorway pairs perfectly with other products from the diverse ROG ecosystem, allowing you to create a fully customized gaming setup that reflects your personal style.
UNDENIABLY ROG STRIX
A perforated metal mesh design on the I/O shield and M.2 heatsink can catch the light of internal RGB accessories or elegantly fade into the darkness of stealthy builds. Cypertext and angular accents make this board an unmistakable member of the ROG Strix series.
SOFTWARE UTILITIES
ROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.
- Compatible Ryzen 5 processor lets you perform all your computational tasks at a swift pace
- With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
- RAID supported levels provide data reliability and fault tolerance
- Wireless LAN support lets you connect to the internet and have instant access to social media, music, movies and online games
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
- With 3 USB 2.0 ports, connect devices for a quick data movement
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Ryzen 9 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 2 |
| Maximum Memory Supported | 64 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 1 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 5 |
| Total Number of Onboard USB P | 3 |
| Number of Onboard USB 3.2 Por | 3 |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 3 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| 2.5Gigabit Ethernet | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Mini ITX |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Chipset Model | X670 |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Total Number of PCI Express S | 1 |
| Total Number of Expansion Slots | 1 |
| PCI Express Standard | PCI Express 5.0 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 2 |
| Number of SATA Interfaces | 2 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
