ENGINEERING | GaN MOSFET

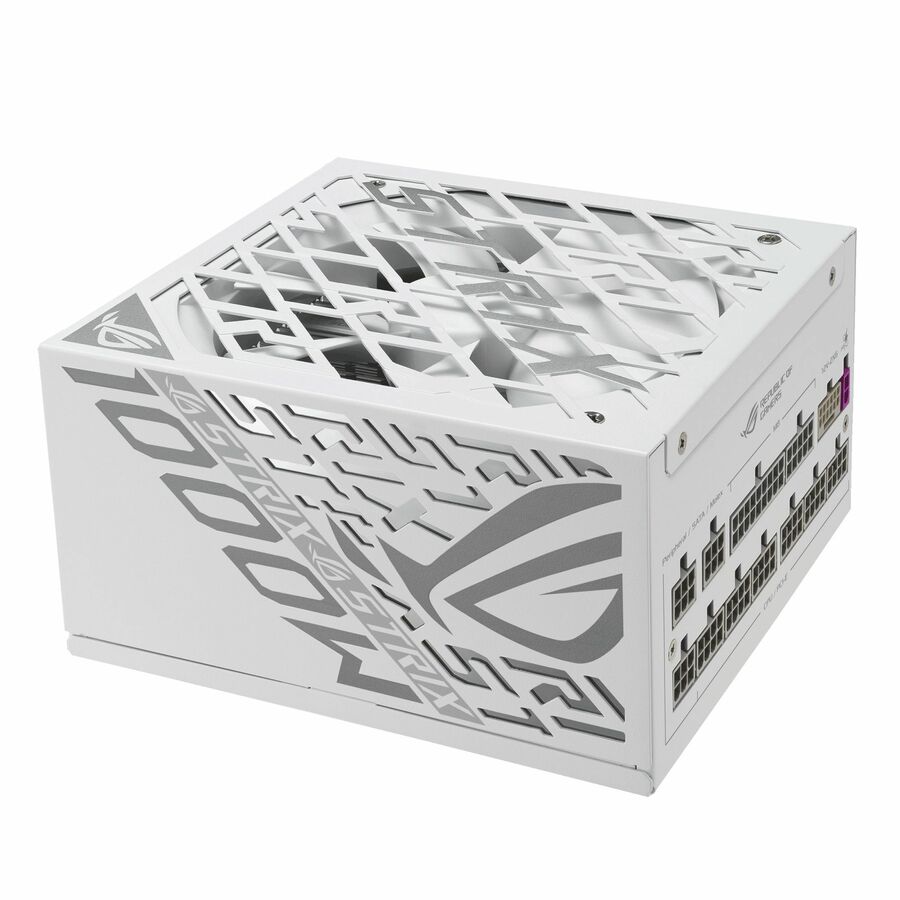

The ROG Strix Platinum White Edition PSU boasts innovative GaN MOSFET that delivers superior power efficiency by up to 30%, resulting in lower energy waste. Plus, the smaller size of GaN MOSFET allows for a more organized internal layout within the PSU. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation within the PSU.
"GPU-FIRST" Voltage Sensing with patented-intelligent voltage stabilizer (IVS)
Activate the "GPU-FIRST" voltage sensing by connecting the IVS cable. This innovative feature enhances voltage stability by up to 45%, even during demanding gaming sessions and overclocking scenarios. If you prefer conventional CPU-focused voltage sensing, just simply disconnect the IVS cable. With this advanced technology, you can experience smooth and consistent gameplay.
High-performance Copper Pins
Upgraded PCIe connectors featuring superior thermal conductivity ensure cooler operation and improved power delivery efficiency.
This translates to a significant 29% reduction in connector temperatures (up to 12.28°C), promoting optimal performance and stability for even the most demanding graphics cards.
ATX 3.1 Compatible
ATX 3.1 ushers in tighter voltage and current regulation standard for next-gen hardware - and ROG Strix Platinum White Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.1 graphics cards is bundled with the PSU, readying your build for the next-gen.
80 PLUS Platinum Certification
The ROG Strix 1000W Platinum White Edition utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.
Cybenetics Lambda A+ Certification | Quietly deviant
On average, ROG Strix 1000W Platinum White Edition PSU emits less than 20 dB of noise - earning a coveted Cybenetics Lambda A+ certification.
COOLING | ROG Heatsinks | Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
Dual Ball Fan Bearings | 2X longer lifespan
Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings.
Ensuring long-lasting, reliable cooling with minimal noise for ROG STRIX Platinum series.
0dB Technology | Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.
EXPERIENCE | Etched Cables
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.
DIY-friendly CPU Power Connector
Engineered with a distinct clip between the 4+4 pin connectors and a unique color scheme, this CPU power cable simplifies cable identification during installation. The integrated clip helps to ensure a secure and effortless connection to the motherboard's CPU power connector, streamlining the build process and instilling confidence in your PC setup.
- Limits current to the safety level and manages electrical faults
- 3.3 V DC ensures steady and uninterrupted power supply to your device
- The maximum output power of 1000 W boosts up the performance
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| Power & Battery | |
|---|---|
| Number of (6+2 pin) PCI Expre | 4 |
| Number of SATA Power Connecto | 6 |
| Number of (4+4 pin) CPU Power | 2 |
| Input Frequency | 50-60Hz |
| Input Voltage Range | 100 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 5 V SB |
| Output Current | 3 A |
| Efficiency | 89% |
| Output Voltage Detail | 5 V SB @ 3 A |
| Power Factor Correction (PFC) | Active |
| Number of +12V Rails | 1 |
| Output Power | 1000 W |
| Size / Dimensions | |
|---|---|
| Form Factor | ATX |
| General Features | |
|---|---|
| Protection Type | Over Temperature |
| MTBF | 120000 Hour |
| Manufacturer | ASUS Computer International |
| Fan Bearing Type | Dual Ball Fan Bearing |
| Number of Fans | 1 |
| Expansion Slots | |
|---|---|
| PCI Express Version | 5.1 |
| PCI Express Connector | Yes |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | 80 Plus Platinum |
| Specification Compliance | ATX 3.1 |
