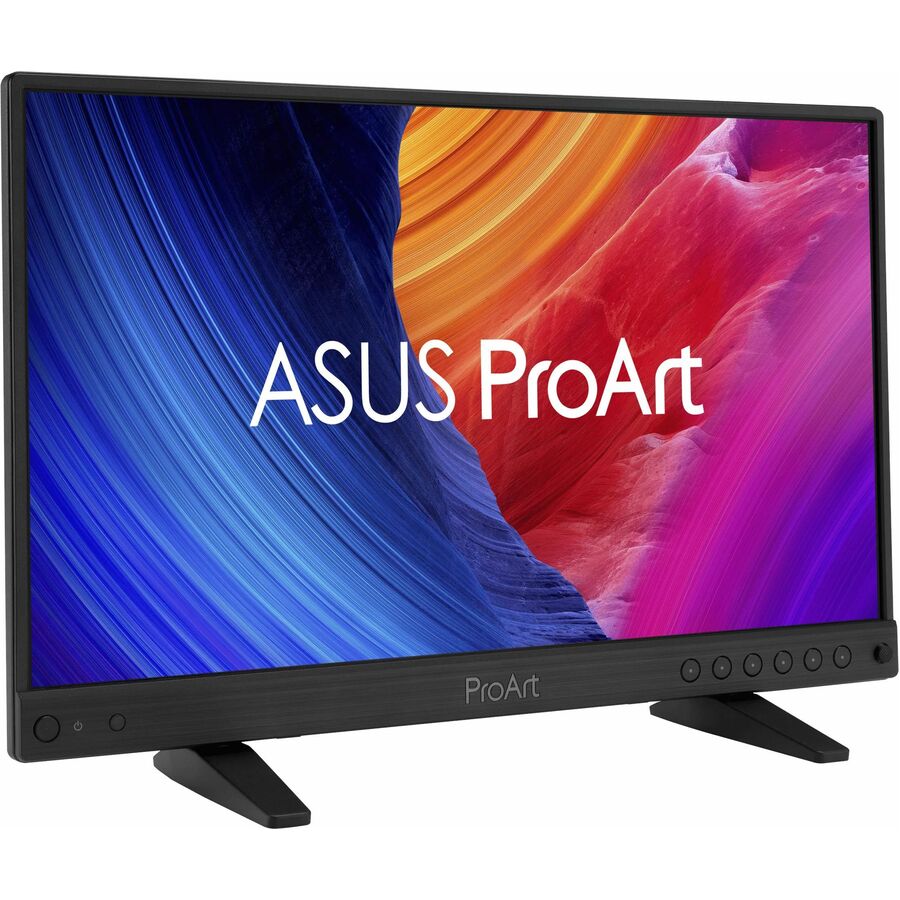

ASUS ProArt Display PA16USV Professional Monitor - 15.6-inch, 4K UHD (3840 x 2160), IPS, HDR-10, 100% sRGB / Rec.709, E < 2, Calman Verified, 12G-SDI, HDMI, USB-C, Carton reusable as monitor hood, Green Sustainability
- 15.6-inch 4K HDR (3840 x 2160) IPS panel with 400 nits peak brightness
- Wide color gamut with 100% sRGB and 100% Rec.709 coverage
- Calman Verified and factory calibrated to Delta E < 2 color accuracy
- 12G-SDI supports 4K@60Hz real-time playback without any compression
- Extensive connectivity including 12G-SDI input, USB-C (DP Alt Mode), HDMI and USB hub for the most flexibility
- Includes mini stand and kickstand two options to suit any scenario or setup
- Green Sustainability: paper packaging and carton reusable as monitor hood, energy-efficient environmental standards
ProArt Display PA16USV | On-set SDI Portable Monitor
ProArt Display PA16USV is 15.6-inch 4K HDR monitor offers 282 high PPI IPS panel with 100% sRGB / Rec.709 coverage to deliver highly accurate colors that bring out the finest details in your creations. 12G-SDI input can receive video signals up to 4K@60Hz and support PiP/PbP function. Versatile design includes a mini stand and a kickstand, offering two convenient options to perfectly fit any scenario. Additionally, it features VESA wall-mount compatibility and dual tripod holes for ultimate flexibility in positioning.
Empowering Content Creators | Digital Imaging Technician (DIT)
Designed for on-set color grading and production workflow management. 12G-SDI input allows direct connection of SDI PCIe capture cards or boxes, delivering 4K uncompressed video for precise image performance. It ensures accurate color reproduction and detail, presenting them to directors and customers.
Director Monitoring
Directors need a high-quality SDI monitor for on-set review and decision-making. It should provide precise color reproduction, allowing directors to see what the camera captures and make informed decisions on lighting and framing.
Focus Puller / Camera Assistant
Focus pullers require a reliable SDI monitor with excellent resolution and color accuracy. It should provide clear images for precise focus adjustments during shooting, ensuring sharpness and clarity in dynamic scenes.
Uncompressed 4K Video
15.6-inch with 4K UHD (3840 x 2160) panel delivers four times the pixel density and three times more onscreen space than similarly sized FHD displays, resulting in sharper visuals with greater levels of detail.
ProArt Display PA16USV features 12G-SDI connection, allows receiving and transmitting uncompressed up to 4K@60Hz video footage directly from camera devices with ultra-low latency.
Lifelike Views With Wide View Angle
Frameless IPS panel provides wide viewing angles, both horizontally and vertically, so you can enjoy its beautiful visuals from almost any direction.
- 15.6" viewable screen size ensures sharp, vibrant visuals for a consistently engaging and responsive viewing experience
- LED backlight technology enhances brightness and contrast while using less power for vivid visuals and energy-efficient performance
- 5 ms response time enhances responsiveness and visual sharpness, ideal for action-packed games, sports, and dynamic media
- 16:9 widescreen layout enhances multitasking and visual depth, making it suitable for both creative workflows and media consumption
- 400 Nit brightness gives an exceptional visible display with stable brightness and accurate color across different content types
- Anti-glare led monitor limits glare and visual distractions, delivering clearer visuals for focused work and entertainment
- 3840 x 2160 maximum resolution ensures vivid, crystal-clear output with consistent pixel accuracy
- LED Monitor ensures consistent operation during extended sessions across diverse usage scenarios
- 15.6" 4K UHD resolution offers over 8 million pixels for ultra-detailed
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| GPU / Graphics | |
|---|---|
| HDCP Supported | Yes |
| Number of Screens | 1 |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 1 , 200:1 |
| Screen Size Class | 16" |
| Viewable Screen Size | 15.6" |
| Backlight Technology | LED |
| Horizontal Frequency | 27 kHz to 135 kHz - Digital |
| Vertical Frequency | 30 Hz to 60 Hz - Digital |
| Maximum Resolution | 3840 x 2160 |
| Screen Mode | 4K UHD |
| Aspect Ratio | 16:9 |
| Panel Technology | In-plane Switching (IPS) Technology |
| Brightness | 400 Nit |
| Response Time | 5 ms |
| Standard Refresh Rate | 60 Hz |
| Color Gamut | 100% Rec. 709 |
| Color Supported | 16.7 Million Colors |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Pixel Pitch | 0.08900 mm x 0.08900 mm |
| Pixel Per Inch (PPI) | 282 |
| Active Display Area (H x V) | 13.55" x 7.62" |
| Screen Surface | Anti-glare |
| Response Time Details | 5 ms GTG |
| USB Ports | |
|---|---|
| Total Number of USB Type-C Po | 1 |
| Number of USB Type-C 3.2 Gen | 1 |
| USB | Yes |
| Number of USB Ports | 2 |
| USB Type-C | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Total Number of HDMI Ports | 1 |
| Number of HDMI 2.0 Ports | 1 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | No |
| Audio | |
|---|---|
| Speakers | No |
| Size / Dimensions | |
|---|---|
| Weight with Stand (Approximat | 3.09 lb |
| Height with Stand | 9.55" |
| Depth with Stand | 4.30" |
| Width with Stand | 14.07" |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Mount Type | Wall Mountable |
| Appearance | |
|---|---|
| Adjustable Stand | No |
| Stand Adjustments | Tilt |
| General Features | |
|---|---|
| Built-in Devices | USB Hub |
| Frequency | 60 Hz |
| Manufacturer | ASUS Computer International |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
