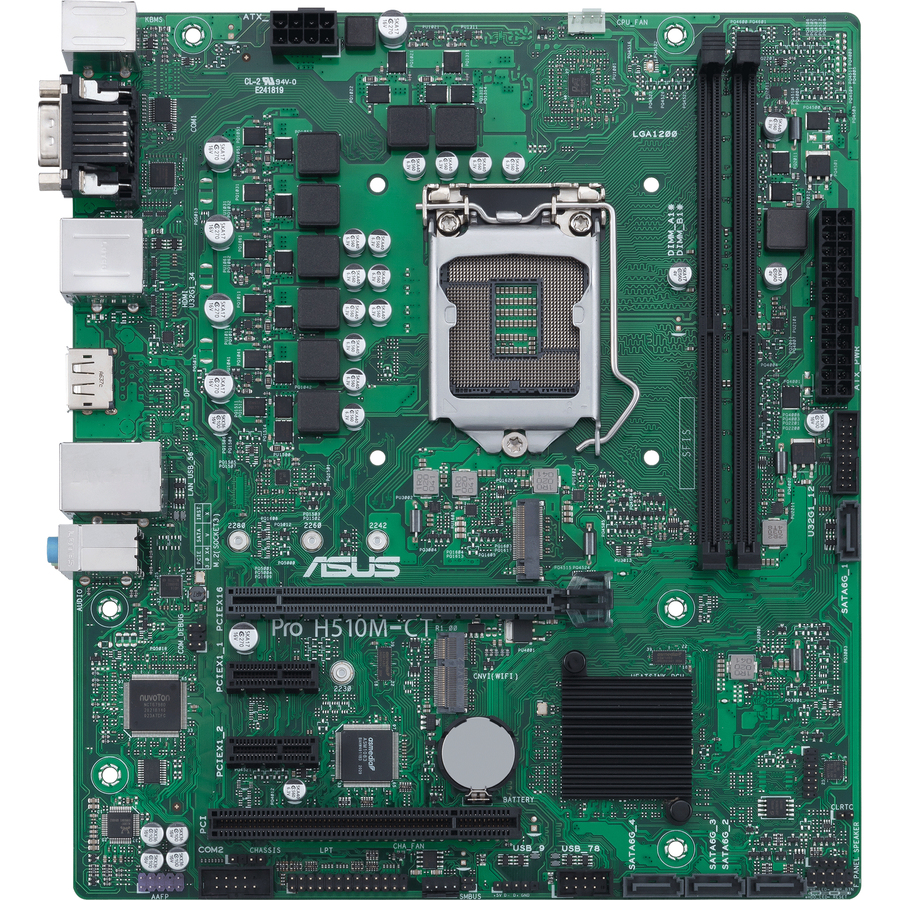

Micro-ATX H510 business motherboard with enhanced security, reliability and manageability
- Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- Supports SMBUS header that connects to a DASH LAN for remote IT management
- ASUS COM debug header for more efficient troubleshooting
- Event log for capturing and managing detailed system information
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Commercial BIOS kit for faster and more efficient customization
- ASUS Control Center Express (ACCE) for easier IT endpoint management
- Ultrafast connectivity: PCIe® 4.0 and Intel® 1 Gb Ethernet
Pro
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Micro ATX form factor for your accessibility convenience and simplicity of usage for Desktop Motherboard
- 2 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Core i3 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 3200 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 2 |
| Maximum Memory Supported | 64 GB |
| USB Ports | |
|---|---|
| Total Number of Onboard USB P | 5 |
| Number of Onboard USB 2.0 Por | 3 |
| Number of Onboard USB 3.2 Por | 2 |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Gigabit Ethernet | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Micro ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | H510 |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Total Number of PCI Express S | 3 |
| Number of PCI Express x1 Slots | 2 |
| Total Number of Expansion Slots | 3 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 1 |
| Number of SATA Interfaces | 4 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
