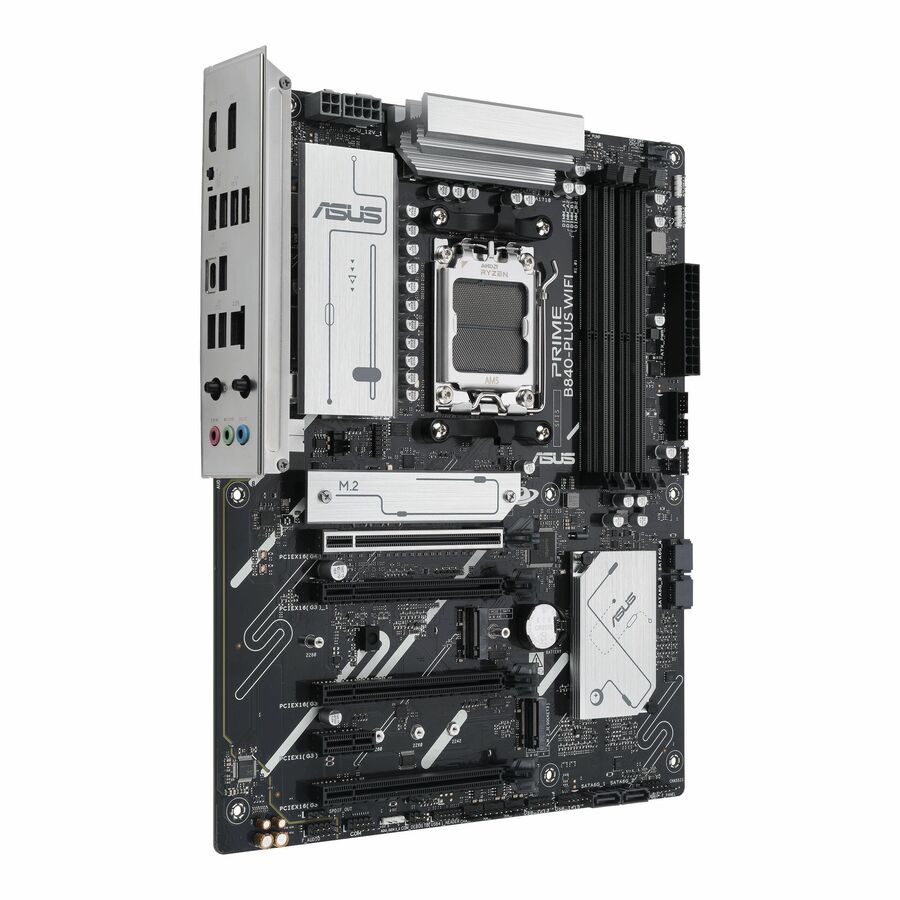

PRIME B840-PLUS WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™9000 series processors. The PRIME B840-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Performance AI Solutions
ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.
AI Advisor
ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
Performance Digital Power Design
PRIME B840-PLUS WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
- 8 Vcore power
- 2 SOC power
- 1 Misc power
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.
Enhanced Memory & Storage Performance | Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B840-PLUS WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.1
For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the PRIME B840-PLUS WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.
Three M.2 slots (up to 64 Gbps)
PRIME B840-PLUS WIFI offers a total of three M.2 slots, including two that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.
Cooling | Cooler by design
The PRIME B840-PLUS WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
Smart Cooling precision | ASUS Fan Xpert 2+
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
- Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
- Supported 0 RAID levels provide data reliability and fault tolerance
- Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11ax wireless standard support
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Thunderbolt host interface provides a fast and reliable transfer of information from your computer to the connected devices
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Ryzen 9 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 7600 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Error Checking | ECC |
| Maximum Memory Supported | 192 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| USB Ports | |
|---|---|
| Total Number of Onboard USB P | 7 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 8 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Thunderbolt Ports | |
|---|---|
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio Ports | |
|---|---|
| S/PDIF | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Chipset Model | B840 |
| AI-powered | Yes |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 5 |
| Total Number of PCI Express S | 6 |
| Number of PCI Express x1 Slots | 1 |
| Total Number of Expansion Slots | 6 |
| PCI Express Standard | PCI Express 3.0 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 3 |
| Number of SATA Interfaces | 4 |
| Miscellaneous | |
|---|---|
| Product Name | Prime B840-PLUS WIFI Gaming Desktop Motherboard |
