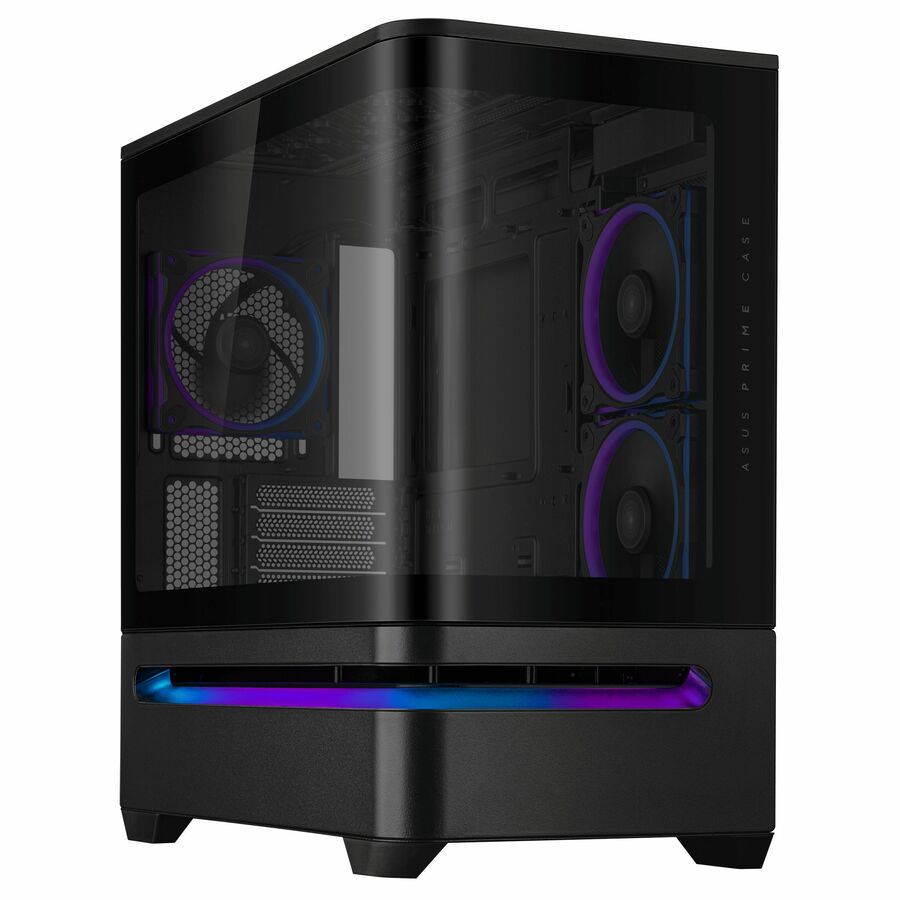

ASUS PrimeAP202 ARGB
The ASUS Prime AP202 ARGB is a versatile panoramic mATX chassis designed to showcase system components with style. A curved tempered glass panel extends seamlessly from the front to the side, offering spectacular views of components from almost any angle. A patented slot vent provides optimal cooling for the graphics card, and an integrated ARGB light band works seamlessly with Aura Sync.
Patented slot vent
- provides optimal
- graphics card cooling
Extensive compatibility
- supports graphics cards
- up to 420mm long
Integrated ARGBlight band
- works seamlessly
- with Aura Sync
Curved Tempered Glass
See the Difference
Views through the curved tempered glass that stretches across two sides of the case show internal components from multiple angles. This glass undergoes a five-stage process that approaches aerospace standards, including thermal treatment that gives it superior strength and durability. This technique helps ensure reliable protection while elevating the DIY experience, offering users an immersive and refined foundation for their build.
01
- Raw Material Selection
02
- Cutting & Edge Grinding
03
- Tempered & Heat Bending
04
- Quality Inspection
05
- Safety Evaluation
Easy-Detach Rail
The curved glass panel features a easy-detach rail, making removal and reattachment safe and simple.
Unique Design
Patented Slot Vent
An innovative airflow design offers ideal thermal performance, letting air in to cool mission-critical components, especially the graphics card.
Ambient Lighting
An integrated ARGB light band near the bottom of case provides spectacular lighting effects, with Aura Sync adapting seamlessly to unique user scenarios. Customize whatever colors you want to make your PC build shine.
Three Pre-Installed ARGB Fans
Three pre-installed 120mm ARGB fans with extra-thick 28mm frames yield optimal airflow and integrate 20 addressable RGB LEDs with a dual lighting design along the side of the frame, uniquely illuminating your system.
Functionality
High-Speed USB Type-C®
The I/O panel on the top features a USB Type-C®port ready for transfer speeds of up to 20Gbps.
20Gbps Connectivity
Optimized Cable Management
A 30mm compartment behind the motherboard helps keep cables tucked away and tidy.
- Micro-ATX and Mini-ITX Support
- Curved, Tempered Glass Panel
- 2 x 2.5"/3.5" Drive Bays
- 4 x PCIe Expansion Slots
- 1 x USB-C 3.2 Gen 2x2
- 2 x USB-A 3.2 Gen 1
- 1 x 3.5mm
- 3 x 120mm ARGB Fans
- Supports GPUs up to 16.5" Long
- Supports CPU Coolers up to 6.9" Tall
- Supports PSUs up to 7.87" Long
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| GPU / Graphics | |
|---|---|
| Maximum GPU Length | 16.54" |
| Power & Battery | |
|---|---|
| Maximum PSU Length | 7.87" |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| Front USB | Yes |
| USB Port Details | 1 x USB 3.2 Gen 2x2 Type C |
| Audio Ports | |
|---|---|
| Total Number of Audio Out Por | 1 |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Audio | |
|---|---|
| Microphone | Yes |
| Appearance | |
|---|---|
| Window Panel | Yes |
| Window Panel Location | Side Panel |
| General Features | |
|---|---|
| Motherboard Supported | Mini ITX |
| Cooler Type | Fan Cooler |
| Installed Fan Size | 4.72" |
| Installed Fan Size Details | 3 � 120mm |
| Fan Size Supported | 5.51" |
| Maximum CPU Cooler Height | 6.89" |
| Manufacturer | ASUS Computer International |
| Number of Fans Supported | 9 |
| Number of Fans Installed | 3 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4 |
| Drive Bays | |
|---|---|
| Number of Internal 2.5"/3.5" | 2 |
| Number of Total Expansion Bays | 2 |
