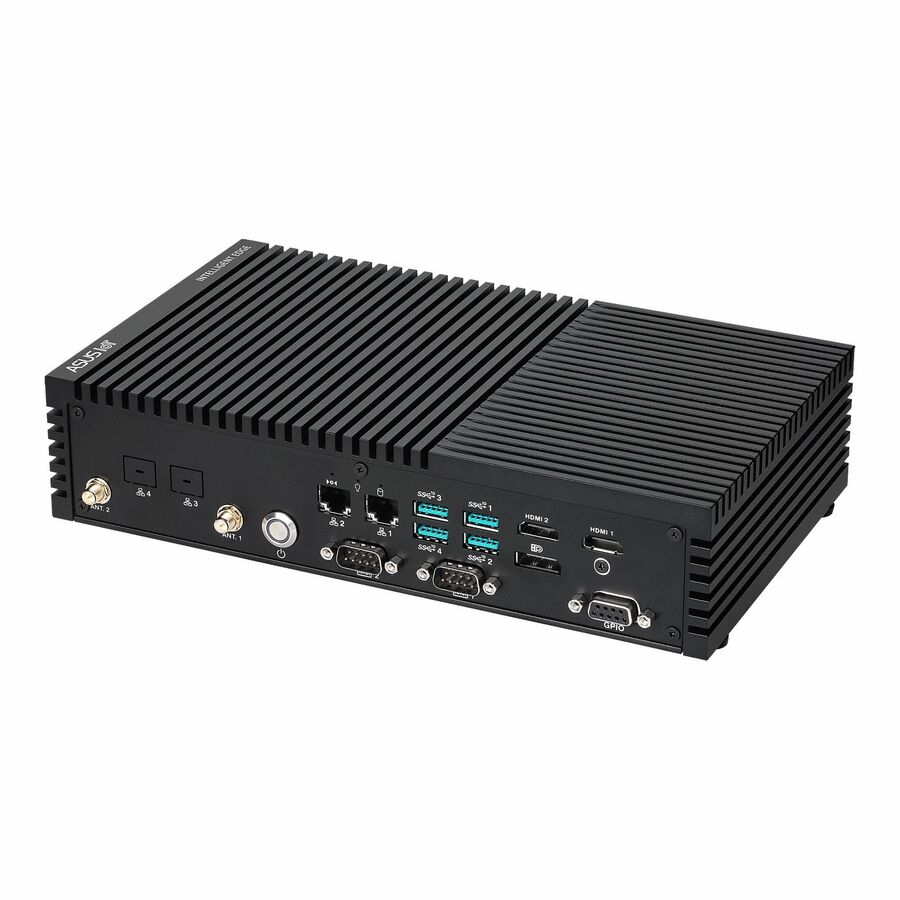

ASUS PE2100U is an Intelligent Edge Computer featuring rich I/O capabilities, various connectivity options and fanless thermal design that suitable for diverse IoT applications. Constructing with Intel ® 13th Gen. Core™-I processors, PE2100U includes up to 4 COM ports (2x RS-232/422/485), provides triple independent video outputs (2x HDMI 2.0 / 1x DP 1.2), and supplies plentiful expansion capacity (PoE LAN, CANBus module and so on). This new edge computer is designed to take consideration for both high performance and silent operation in rugged environment by achieving full CPU utilization while being cooled with a fanless thermal solution.
In order to offer enhanced features to ensure optimal performance and flexibility of adapting the surrounding environment, PE2100U is also designed with wide range of power inputs (9 - 36VDC), operating temperatures (-20°C - 60°C) and versatile I/O interfaces for multiple vertical market applications. ASUS Edge Computer ensures 24/7 stability and reliability, combined with our world-class after-sales service and guaranteed long-term availability - your investment for the duration of the product lifecycle is maximized.
- Rugged embedded computer with industrial fanless design
- Various wireless connectivity options: Wi-Fi 5/6, Bluetooth, 4G/5G and GPS
- Supports dual SO-DIMM DDR5 and 3 display ports (DP*1, HDMI*2)
- Rich expansion capacity including POE and CANbus expansion module for diversified demand
- Wide range of power inputs (9~36V) and operating temperatures (-20°~60°)
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Model | i5-1345UE |
| Processor Generation | 13th Gen |
| Processor Core | Deca-core (10 Core) |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Standard Memory | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 2 |
| Maximum Memory Supported | 64 GB |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| General Features | |
|---|---|
| Fanless | Yes |
| Chipset Manufacturer | Intel |
| Manufacturer | ASUS Computer International |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
