PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
High-resolution HDMI monitoring
ASUS P12R server motherboards feature an HDMI 1.4 port directed from the CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.
Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
Server-management Solution | ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Enhanced security
ASUS P12R server motherboards integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition, all P12R server motherboards servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
- With the compatible Intel Pentium processor, experience splendid PC performance; enjoy songs, movies and get your work completed concurrently
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- RAID supported levels provide data reliability and fault tolerance
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX server motherboard
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Xeon |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 2666 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Maximum Memory Supported | 128 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| USB Ports | |
|---|---|
| Total Number of Onboard USB P | 5 |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Gigabit Ethernet | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | C256 |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Total Number of Expansion Slo | 4 |
| Total Number of PCI Express S | 4 |
| Number of PCI Express x8 Slots | 3 |
| PCI Express Standard | PCI Express 4.0 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 2 |
| Number of SATA Interfaces | 8 |
| Miscellaneous | |
|---|---|

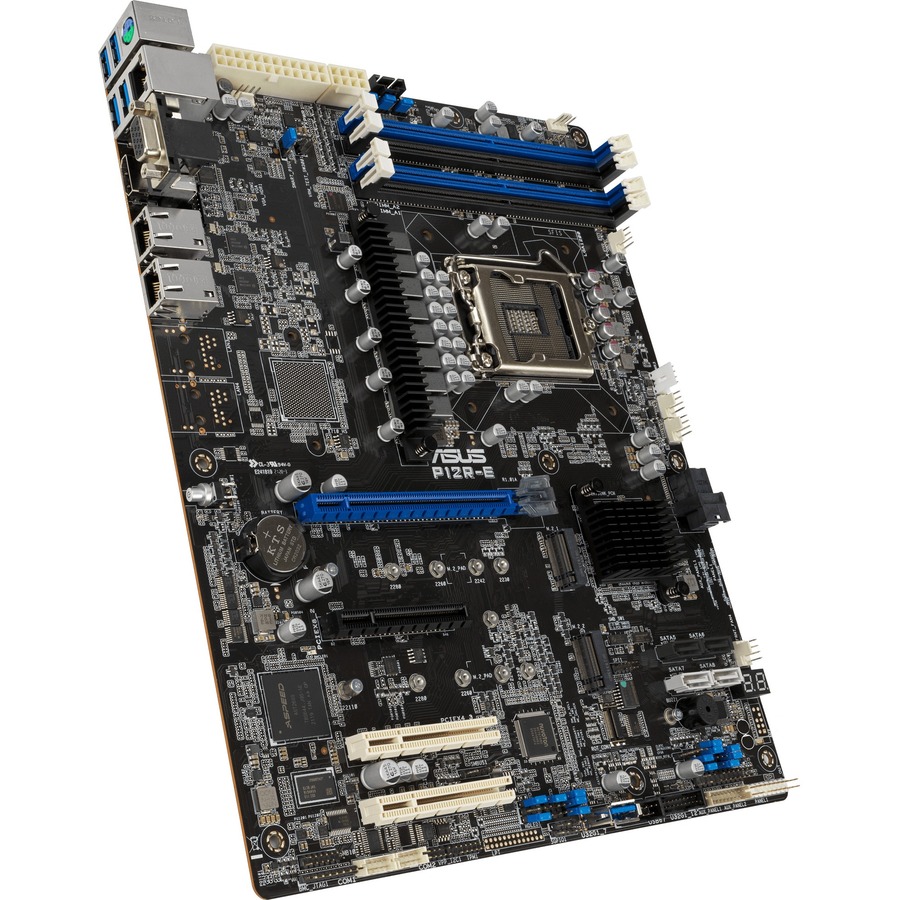

| Product Name | P12R-E Server Motherboard |
