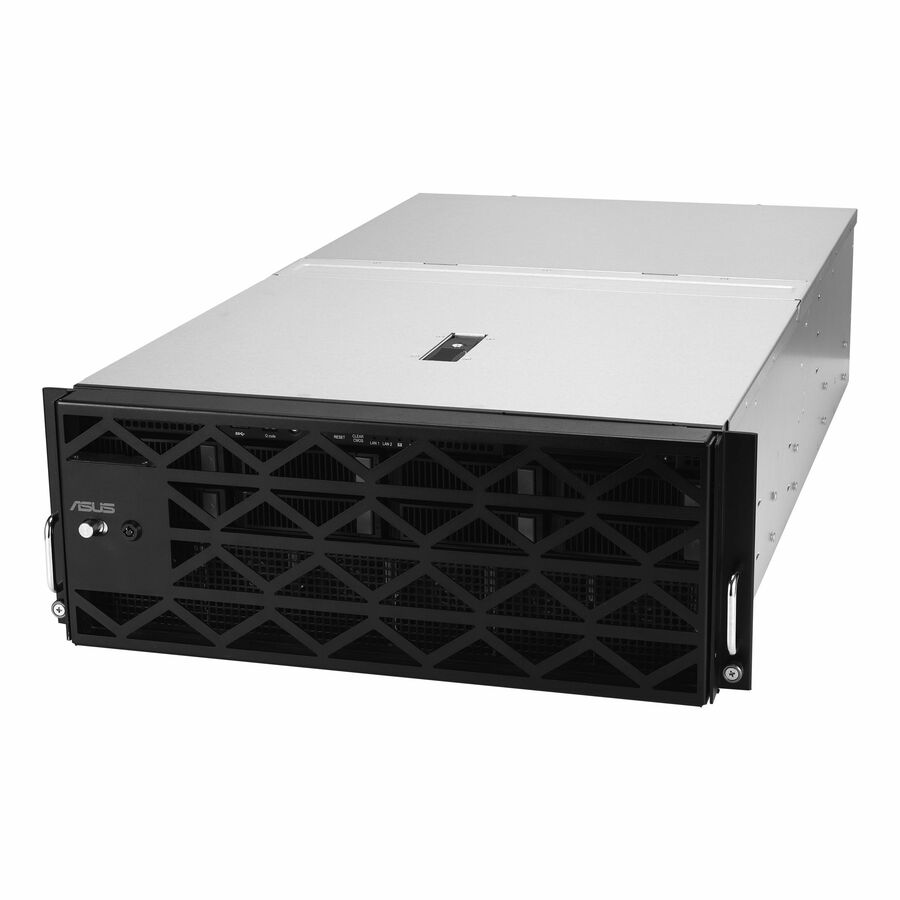

Accelerate performance for HPC and AI workloads | Eight dual-slot GPU compute in 4U
ESC8000-E11 is a dual-socket server powered by 5th Gen Intel® Xeon® Scalable Processors and built for the demands of enterprise AI infrastructure to deliver unprecedented performance with industry-leading GPUs, faster GPU interconnect and higher-bandwidth fabric, and supports up to eight dual-slot active or passive GPUs scalable configuration with NVIDIA NVLink® Bridge to enable scaling of performance with increased bandwidth - ready to match your AI and HPC workloads.
- Upgrade an existing PC easily to improve performance and extend its usability for modern applications
- Perform computational tasks efficiently with Xeon Platinum processor for smooth and reliable performance
- Serial ATA/600 interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
- Rack-mountable barebone system ensures clutter-free, organized setups with improved accessibility and efficiency
- Featuring 2 USB ports to connect USB-compatible devices for enhanced flexibility and convenience
- Gigabit Ethernet increases data transfer capacity, delivering better overall performance for demanding network tasks
- DDR5 SDRAM slot allows convenient installation of memory, ensuring easy upgrades and improved system performance
- 30 MB cache memory keeps essential information readily available, reducing delays and boosting overall computing speed
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Number of Processors Installed | 2 |
| Processor Supported | Xeon Bronze |
| Number of Processors Supported | 2 |
| 64-bit Processing | Yes |
| Processor Socket | Socket LGA-4677 |
| Cache | 30 MB |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4400/PC5-35200 |
| Total Number of Memory Slots | 32 |
| Maximum Memory Supported | 6 TB |
| Storage | |
|---|---|
| Supported Storage Drive Inter | PCI Express |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 3 |
| Input Voltage | 230 V AC |
| Maximum Power Supply Wattage | 3000 W |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 3 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| AI-powered | Yes |
| Frequency | 60 Hz |
| Controller Type | NVMe |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 8 |
| Total Number of Expansion Slo | 11 |
| Number of PCI Express x8 Slots | 1 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 8 |
| Number of 3.5" Bays | 8 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 1 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 1 |
| Miscellaneous | |
|---|---|
| Product Name | ESC8000-E11-3W10G Barebone System |
Asus ESC8000-E11-3W10G Barebone System - 4U Rack-mountable - Socket LGA-4677 - 2 x Processor Support - 2 - Intel Chip - 6 TB DDR5 SDRAM DDR5-4400/PC5-35200 Maximum RAM Support - 32 Total Memory Slots - Serial ATA/600, NVMe Controller - AST2600 Graphic(s) - 8 3.5" Bay(s) - Network (RJ-45) - 1 M.2 Interface(s) - Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze) - Gigabit Ethernet, Ethernet - 2 USB 3.2 Gen 1 Port(s) - 3 x 3000 W
