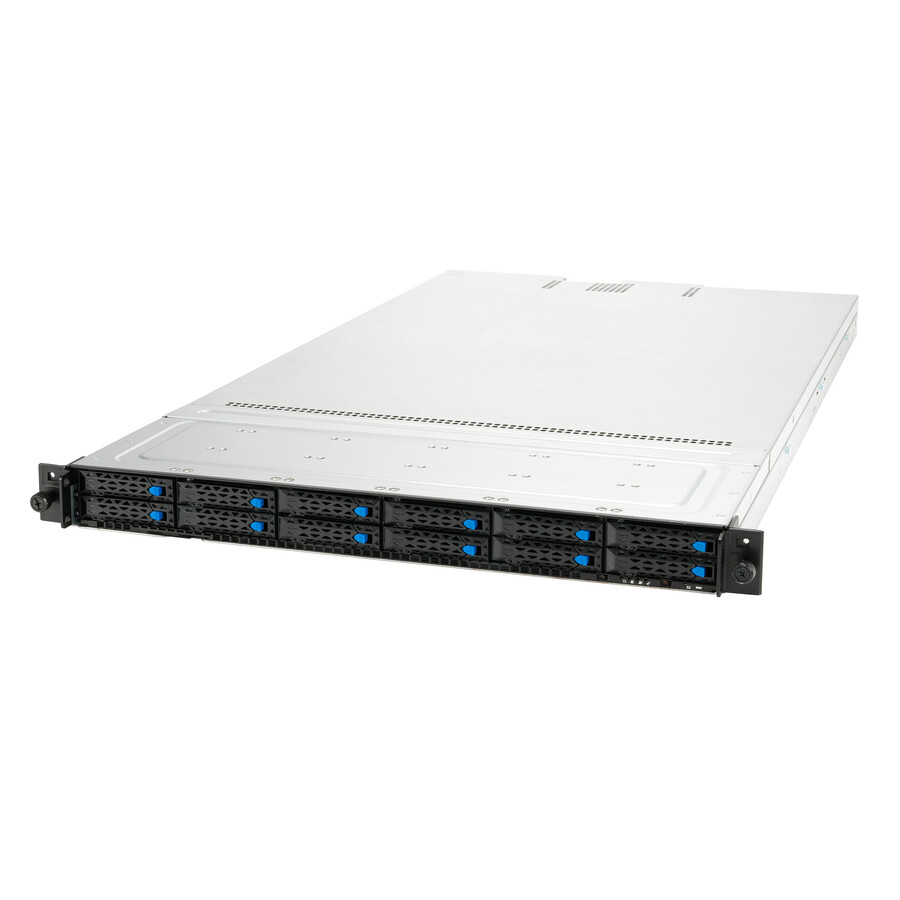

RS500A-E11-RS12U | AMD EPYC™ 7003 1U single-socket server that supports up to 16 DIMM, GPU, 12 NVMe, 3 PCIe 4.0 slots, OCP 3.0, M.2 and ASUS ASMB10-iKVM
Key Features
- Powered by AMD EPYC 7003 processor with 64 cores, 128 threads and support for a maximum TDP of up to 280 watts per socket
- Up to 12 all-flash NVMe drives on front panel and four drives on middle panel to enable extensive storage and high-throughput performance
- Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
- Air cooling with heatsink achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers
- New tool-less design for easy serviceability
AMD EPYC 7003 Series Processors
The latest AMD EPYC™ 7003 series processors are the new standard for modern data centers. AMD was first with X86 multi-chip-module server CPUs and continues to innovate with the 3rd Gen EPYC processors, including up to 32MB of L3 cache per core and synchronized fabric and memory-clock speeds designed for improved performance.
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS500A-E11 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.
More Storage in Middle Bay
RS500A-E11-RS12U features unique design of additional four 2.5" internal storage supporting NVMe and SATA in middle bay, allowing up to 16 all-flash NVMe drives for different configurations.
Scalable Storage Solution
ASUS RS500A-E11 servers feature scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security.
Enhanced Security
ASUS RS500A-E11 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition, all RS500A-E11 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
- Upgrade an existing PC easily to improve performance and extend its usability for modern applications
- Compatible EPYC processor enables fast and efficient execution of computational tasks
- Serial ATA/600 interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
- Rack-mountable barebone system offers easy installation and convenient access for streamlined maintenance
- Can connect up to 2 USB peripherals for versatile and productive device integration
- Gigabit Ethernet offers speeds up to 10x faster than standard Ethernet, ensuring high-performance uplinks and reliability
- DDR4 SDRAM slot reduces processor idle time, improving multitasking and overall computing speed
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | EPYC |
| Number of Processors Supported | 1 |
| 64-bit Processing | Yes |
| Processor Socket | Socket LGA-4094 |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 16 |
| Maximum Memory Supported | 4 TB |
| Storage | |
|---|---|
| Supported Storage Drive Inter | Serial ATA III |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 2 |
| Input Voltage | 230 V AC |
| Maximum Power Supply Wattage | 800 W |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Frequency | 60 Hz |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 4 |
| Total Number of Expansion Slots | 4 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 12 |
| Video Ports | |
|---|---|
| Number of VGA Ports | 1 |
| Misc Ports | |
|---|---|
| Number of SATA Interfaces | 12 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
