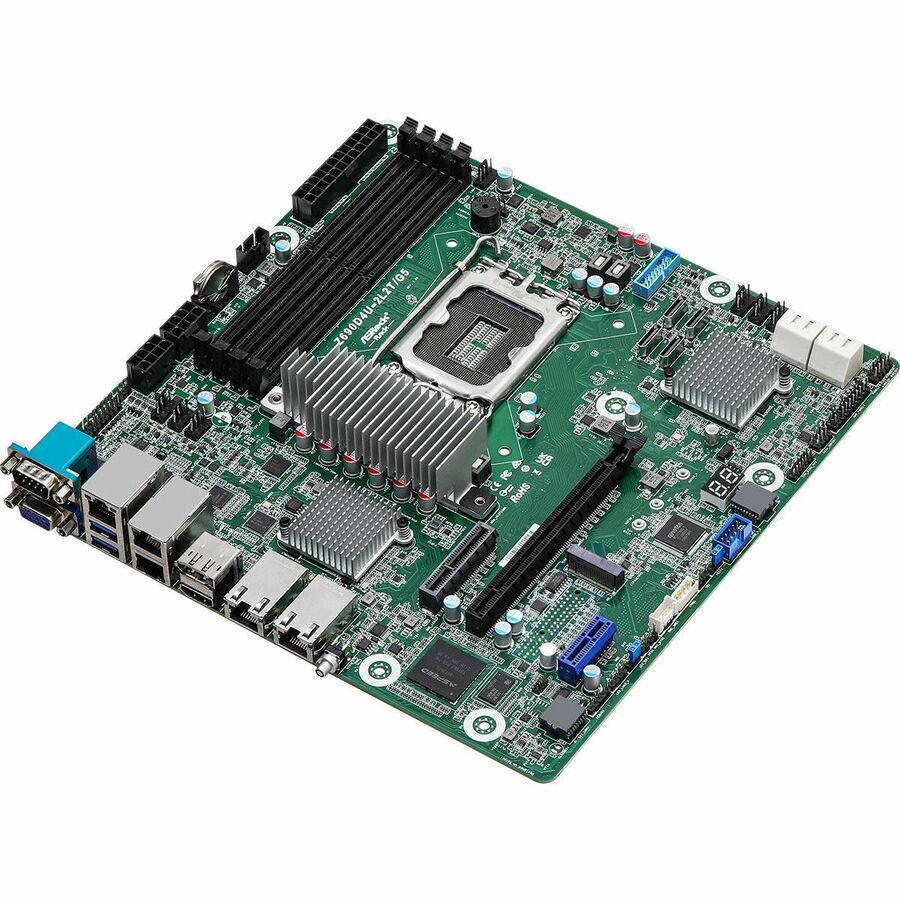

ASRock Rack Z690D4U-2L2T/G5 Server Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Micro ATX

$ 554.99 $ 554.99
$ 554.99

$ 554.99 / Units
  • Brand
  • Processor Supported
  • Depth
  • Number of USB 3.2 Gen 1 Type-
  • Number of PCI Express x16 Slo
  • Total Number of Onboard USB P
  • Product Name
  • Number of Network (RJ-45) Por
  • Number of Onboard USB 2.0 Por
  • Total Number of PCI Express S
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Total Processor Supported
  • Graphics Controller Model
  • Chipset Manufacturer
  • Chipset Model
  • RAID Supported
  • Onboard Video
  • Number of M.2 Interfaces
  • Total Number of USB Ports
  • HDMI
  • DisplayPort
  • Gigabit Ethernet
  • 10Gigabit Ethernet
  • VGA
  • Number of SATA Interfaces
  • Number of PCI Express x1 Slots
  • Number of PCI Express x4 Slots
  • Total Number of Expansion Slots
  • Form Factor
  • Processor Generation Supported
  • Processor Socket
  • Memory Technology
  • Memory Speed Supported
  • Memory Form Factor
  • Number of Memory Slots
  • Maximum Memory Supported
  • RAID Levels
  • Controller Type
  • Environmental Compliance
  • Package Type
  • Manufacturer
  • Product Type
  • Product Model
  • Manufacturer Website Address
  • PCI Express Standard
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
  • Micro-ATX (9.6" x 9.6")
  • Supports Intel®Core™ 14th Gen, 13th & 12th Gen Intel®Core™, Pentium®and Celeron®series processors
  • 4 DIMM slots (2DPC), supports DDR5 non-ECC UDIMM
  • 1 PCIe5.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1
  • 3 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)
  • Supports 1 M.2 (PCIe3.0 x4)
  • 2 RJ45 (10GbE) by Intel®X710
  • 2 RJ45 (1GbE) by Intel®i210
  • Up to 8 SATA 6Gb/s
  • 1 VGA, 1 HDMI, 1 DisplayPort
  • Remote Management (IPMI)
Brand
Brand ASRock Rack Inc
CPU / Processor
Processor Supported Celeron
Total Processor Supported 1
Processor Generation Supported 12th Gen
Processor Socket Socket LGA-1700
GPU / Graphics
Graphics Controller Model AST2600
Onboard Video CPU Dependent Video
Memory / RAM
Memory Technology DDR5 SDRAM
Memory Speed Supported 3600 MHz
Memory Form Factor UDIMM
Number of Memory Slots 4
Maximum Memory Supported 48 GB
Storage
RAID Supported Yes
RAID Levels 10
USB Ports
Number of USB 3.2 Gen 1 Type- 2
Total Number of Onboard USB P 4
Number of Onboard USB 2.0 Por 2
Total Number of USB Ports 2
HDMI Ports
HDMI Yes
DisplayPort
DisplayPort Yes
Ethernet Port
Number of Network (RJ-45) Por 4
Gigabit Ethernet Yes
10Gigabit Ethernet Yes
Size / Dimensions
Form Factor Micro ATX
General Features
Chipset Manufacturer Intel
Chipset Model Z690
Controller Type Serial ATA/600
Manufacturer ASRock Rack Inc
Expansion Slots
Number of PCI Express x16 Slo 1
Total Number of PCI Express S 3
Number of PCI Express x1 Slots 1
Number of PCI Express x4 Slots 1
Total Number of Expansion Slots 3
PCI Express Standard PCI Express 5.0
Video Ports
VGA Yes
Misc Ports
Number of M.2 Interfaces 1
Number of SATA Interfaces 8
Packaging & Origin
Package Type Retail
