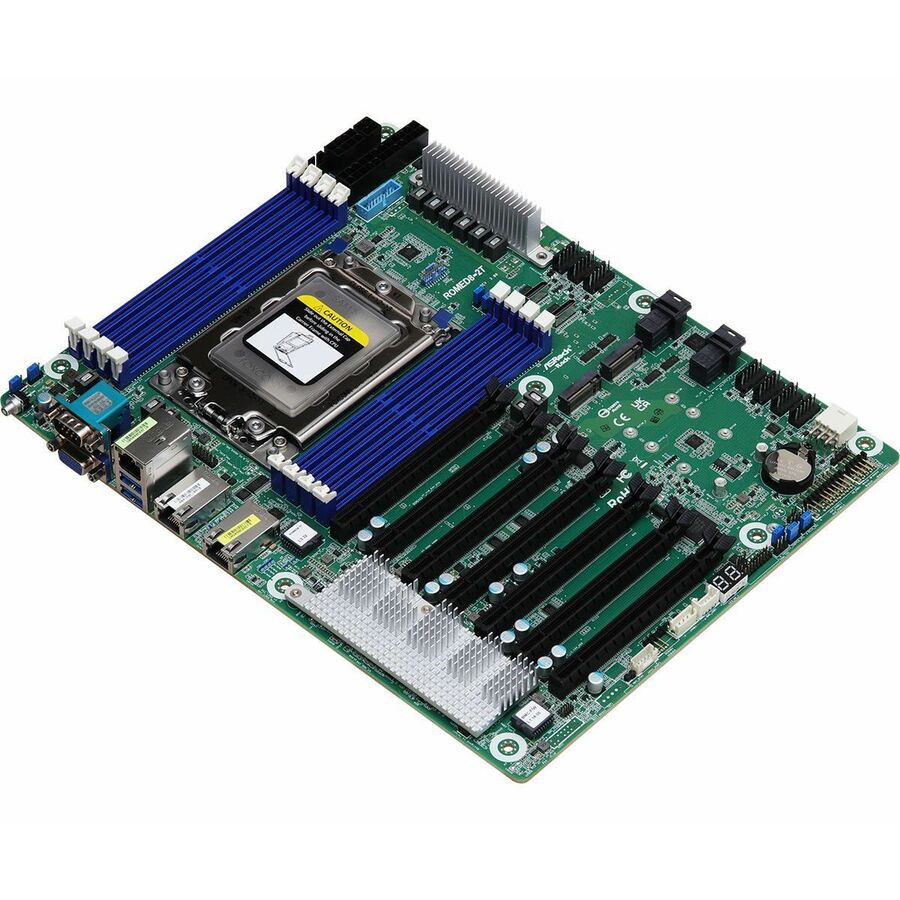

- ATX (12" x 9.6")
- Single Socket SP3 (LGA 4094), supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 series processors
- 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N
- 7 PCIe4.0 x16
- 2 OCuLink (PCIe4.0 x4)
- Supports 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
- 10 SATA 6Gb/s
- 2 RJ45 (10GbE) by Broadcom BCM57416
- Remote Management (IPMI)
| Brand | |
|---|---|
| Brand | ASRock Rack Inc |
| CPU / Processor | |
|---|---|
| Processor Supported | EPYC |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-4094 |
| GPU / Graphics | |
|---|---|
| Graphics Controller Model | AST2500 |
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 3200 MHz |
| Memory Form Factor | NVDIMM |
| Number of Memory Slots | 8 |
| Maximum Memory Supported | 256 GB |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 1 Type- | 2 |
| Total Number of Onboard USB P | 2 |
| Total Number of USB Ports | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 3 |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASRock Rack Inc |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 7 |
| Total Number of PCI Express S | 7 |
| Total Number of Expansion Slots | 7 |
| PCI Express Standard | PCI Express 4.0 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 2 |
| Number of SATA Interfaces | 10 |
