Polychrome SYNC Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED Switch | Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
ARGB Header More ARGB, More Fancy.
With the ARGB header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

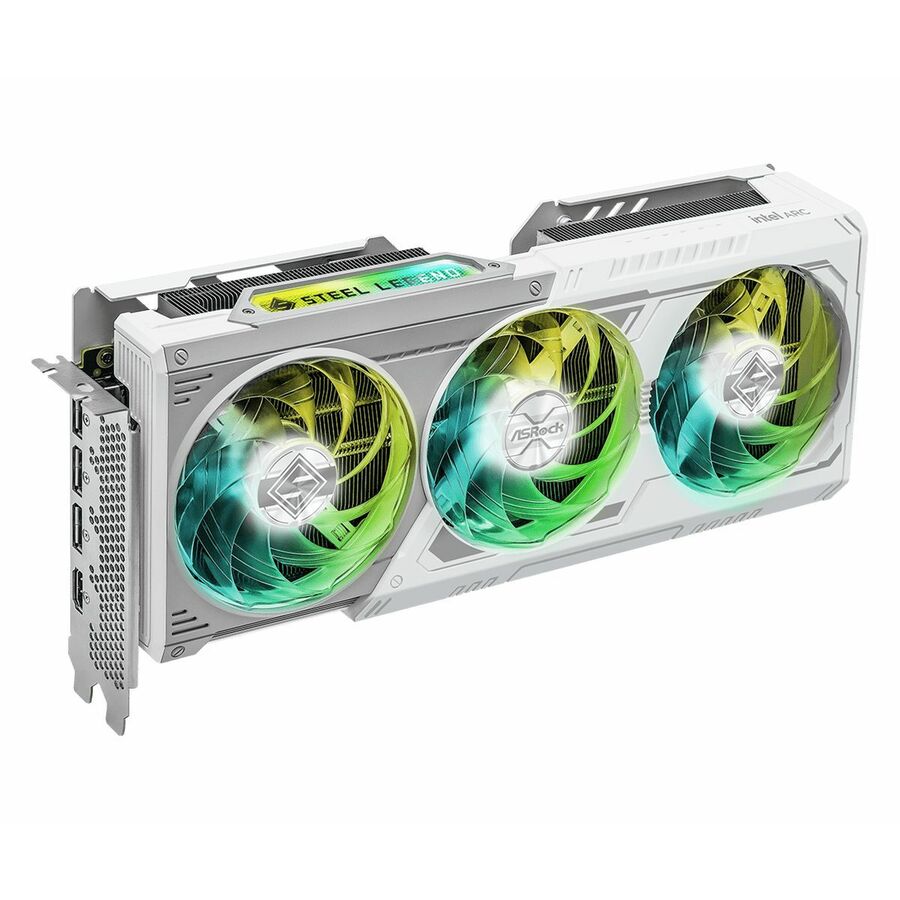

Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.
0dB Silent Cooling Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Stylish Metal Backplate Solid, Refined, Cool.
Designed to avoid PCB bending. The white-themed outlook makes the graphic card more simple and purified in visual.
Air Deflecting Fin Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
SP-Cap
SAV [SP-Cap]
With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current, thus providing improved thermal result and superior performance.
Premium Power Choke
Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
Nano Thermal Paste Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
- Polychrome SYNC
- Triple Fan Design
- Striped Ring Fan
- Stylish Metal Backplate
- Ultra-fit Heatpipe
- Air Deflecting Fin
- 0dB Silent Cooling
- Super Alloy Graphics Card
| Brand | |
|---|---|
| Brand | ASRock |
| GPU / Graphics | |
|---|---|
| GPU Clock | 2.80 GHz |
| Bus Width | 192 bit |
| API Supported | OpenGL 4.6 |
| Number of Monitors Supported | 4 |
| Memory / RAM | |
|---|---|
| Standard Memory | 12 GB |
| Memory Technology | GDDR6 |
| Screen / Display | |
|---|---|
| Maximum Digital Display Resol | 7680 x 4320 |
| Power & Battery | |
|---|---|
| Power Supply Wattage | 650 W |
| Power Connector | 2x 8-pin |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Slot Space Required | Triple |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | B580 |
| Chipset Line | Arc |
| AI-powered | Yes |
| Cooler Type | Fan Cooler |
| Manufacturer | ASRock, Inc |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 4.0 x8 |
