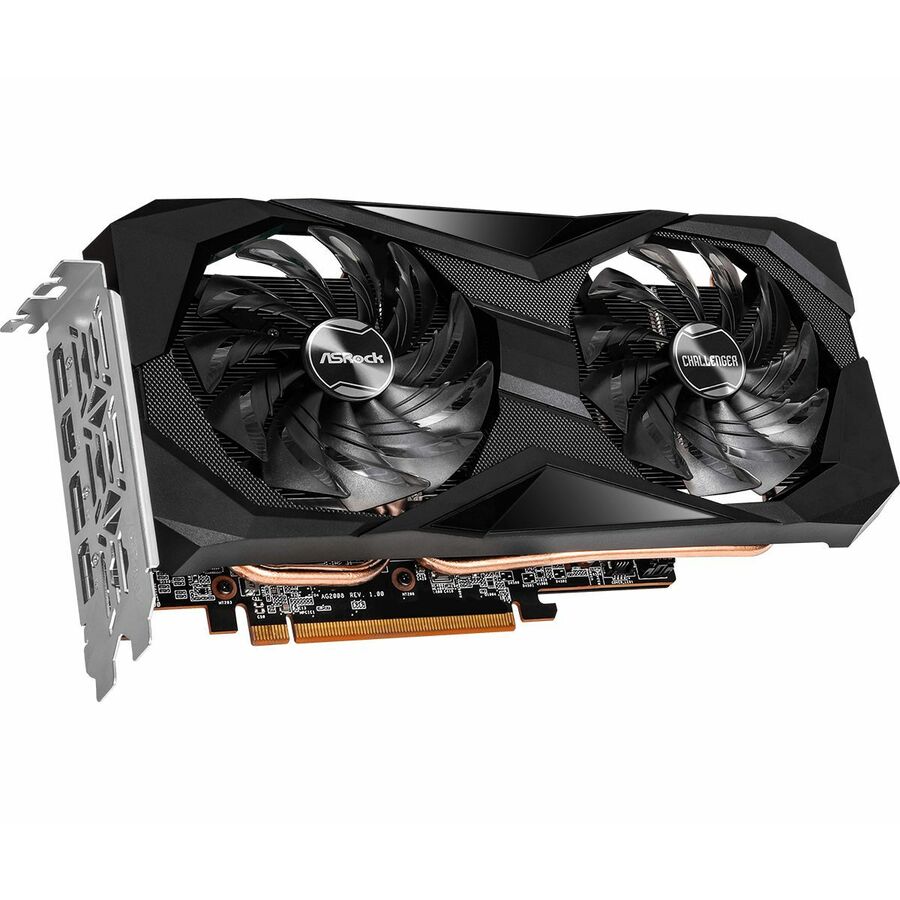

Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It's optimized for delivering excellent gaming experience with stylish and streamlined design.
Stylish Metal Backplate Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Striped Axial Fan Designed For Enhanced Airflow.
ASRock's custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nano Thermal Paste Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
Premium 90A Power Choke
Compared to traditional chokes, ASRock's premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
ASRock Tweak 2.0 Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
- Dual Fan Design
- Stylish Metal Backplate
- Striped Axial Fan
- Ultra-fit Heatpipe
- 0dB Silent Cooling
- Super Alloy Graphics Card
| Brand | |
|---|---|
| Brand | ASRock |
| GPU / Graphics | |
|---|---|
| GPU Clock | 1.77 GHz |
| GPU Boost Clock | 2.70 GHz |
| Game Clock | 2.28 GHz |
| Bus Width | 128 bit |
| API Supported | OpenGL 4.6 |
| Number of Monitors Supported | 4 |
| Memory / RAM | |
|---|---|
| Standard Memory | 8 GB |
| Memory Technology | GDDR6 |
| Screen / Display | |
|---|---|
| Maximum Digital Display Resol | 7680 x 4320 |
| Power & Battery | |
|---|---|
| Power Supply Wattage | 550 W |
| Power Connector | 1x 8-pin |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Chipset Model | RX 7600 |
| Chipset Line | Radeon |
| Chipset Series | RX 7000 |
| Cooler Type | Fan Cooler |
| Manufacturer | ASRock, Inc |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 4.0 x8 |
