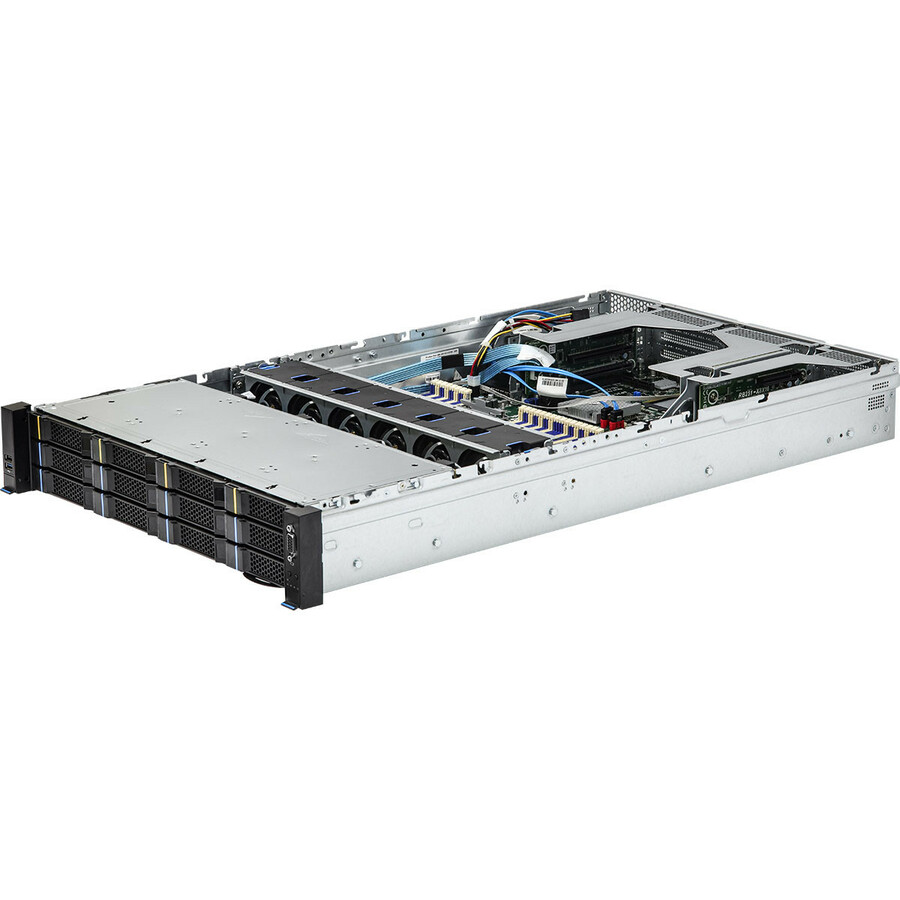

- 2U Rackmount with 1+1 1600W CRPS
- Dual Socket P+ (LGA 4189), supports 3rd Gen Intel® Xeon® Scalable processors
- 16+16 DIMM slots (2DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel® Optane™ Persistent Memory 200 series
- 12 hot-swap 3.5"/2.5" drive bays, 2 fixed 2.5" SATA drive bays
- 4 FHHL PCIe4.0 x16 or 2 FHHL PCIe4.0 x16, 4 FHHL PCIe4.0 x8
- 1 low-profile PCIe4.0 x16 or 2 low-profile PCIe4.0 x8
- Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
- 2 RJ45 (1GbE) by Intel® i350-AM2
- 1 OCP NIC 3.0 (PCIe4.0 x16)
- Remote management (IPMI)
| Brand | |
|---|---|
| Brand | ASRock |
| CPU / Processor | |
|---|---|
| Processor Supported | Xeon Bronze |
| 64-bit Processing | Yes |
| Processor Socket | Socket LGA-4189 |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 32 |
| Maximum Memory Supported | 256 GB |
| Storage | |
|---|---|
| Supported Storage Drive Types | HDD |
| Supported Storage Drive Inter | PCI Express |
| Intel Optane Memory Ready | Yes |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 2 |
| Input Voltage | 230 V AC |
| Maximum Power Supply Wattage | 1600 W |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Frequency | 63 Hz |
| Controller Type | Serial Attached SCSI (SAS) |
| Manufacturer | ASRock, Inc |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 14 |
| Number of 3.5" Bays | 12 |
| Video Ports | |
|---|---|
| Number of VGA Ports | 1 |
