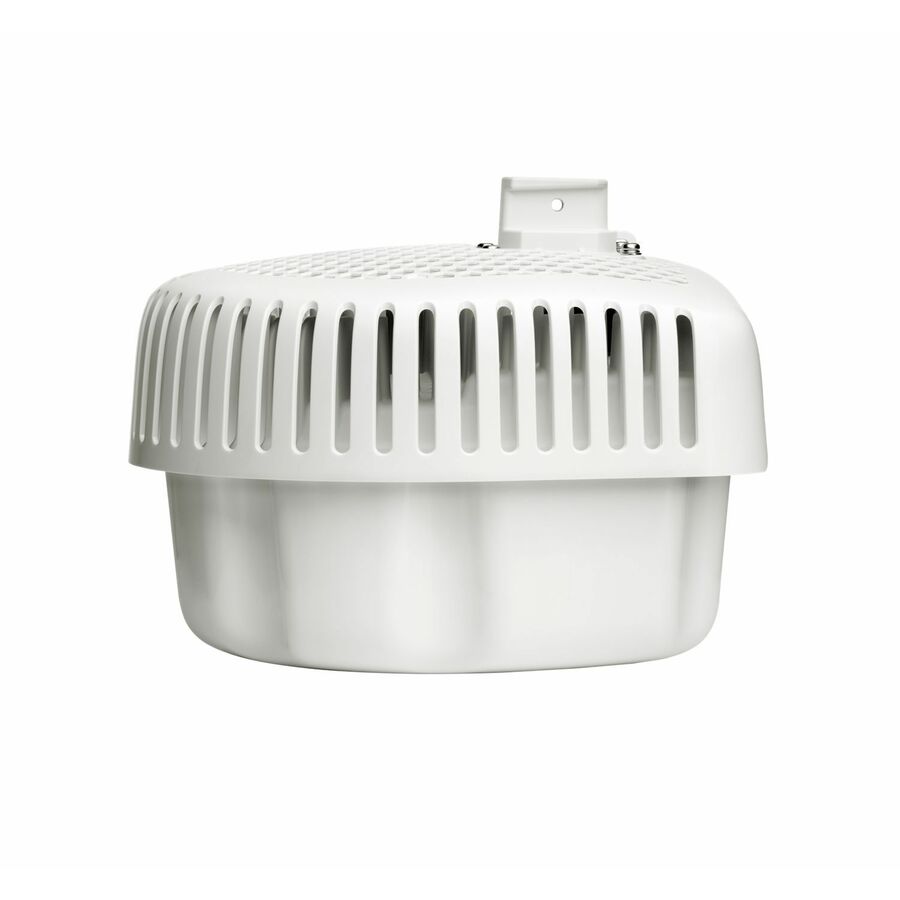

The HPE Aruba Networking 670 Series Outdoor Access Points bring high performance Wi-Fi 6E to outdoor and environmentally challenging locations. The 670 Access Points deliver more wireless capacity and wider channels taking advantage of Wi-Fi 6E and the 6 GHz band to more than double capacity to meet the speed and reliability needed by enterprise and industrial Internet of Things (IoT) environments.
The 670 series Access Points are weatherproof, temperature hardened, and ready for hazardous environments. With integrated high-power Bluetooth and Zigbee radios, fast wired connectivity, and a limited lifetime warranty, the access points (APs) provide high-performance outdoor
connectivity you can depend on, delivering up to 3.9 Gbps maximum aggregate data rate with a tri-radio 2x2:2 MIMO access point (AP). This series includes the 670EX Outdoor Access Points models that are designed for the most extreme, hazardous locations.
Features | High Performance Outdoor Wi-Fi 6E
HPE Aruba Networking 670 Series Outdoor Access Points operate as standard power (SP) devices and deliver greater efficiency with OFDMA, MUMIMO, and target wake time (TWT) to extend the battery life of devices.
Fast performance with 6 GHz band that delivers up to 1200 MHz additional capacity and 3.6 Gbps maximum combined data rate to better support high bandwidth, low-latency applications such as high-definition video.
This AP is self-locating with embedded GPS receiver and will operate as standard power (SP) devices requiring an automated frequency coordination service (AFC) to protect incumbent outdoor services.
Enhanced wireless experience with ClientMatch technology that eliminates sticky client issues by steering a client to the AP where it receives the best radio signal. The AP offers convenient wired connectivity with fast 2.5 GbE uplink port and 1 GbE port.
Simplified Access with Enhanced Security
The HPE Aruba Networking 670 Series Outdoor Access Points offer enhanced security with Dynamic Segmentation to eliminate the time consuming and error prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.
The AP offers network protection with stronger encryption and authentication with WPA3, secure credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
Simplified policy enforcement with the Policy Enforcement Firewall (PEF) that encapsulates all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, our APs include an installed TPM for secure storage of credentials and keys, and boot code.
Ruggedized and Ready for IoT
The HPE Aruba Networking 670 Series Outdoor Access Points include integrated high-power Bluetooth and Zigbee radios to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors.
Ruggedized outdoor APs support extended temperatures to address the requirements of a broad range of surface, subsurface, and offshore applications. This series includes 670EX Outdoor Access Points that are designed for the most extreme, hazardous locations.
The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention with other clients.
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi, Bluetooth, and Zigbee radios to operate at higher capacity without the impact of interference.
- Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
- 3.90 Gbit/s wireless transmission speed provides better reception, and dependable connectivity with maximum productivity
- IEEE 802.11ax wireless LAN standard lets you connected on the go so your productivity never stops
- Up to 10x faster than standard Ethernet connectivity for your wired network
- Data Encryption ensures the safety of your precious data
- External antenna form factor for convenient, desired usage and placement with maximum productivity
- Pole-mountable form factor offers comfortable usage for a longer duration
| Brand | |
|---|---|
| Brand | Hewlett Packard Enterprise |
| Power & Battery | |
|---|---|
| Power Consumption | 45.50 W |
| Networking & Connectivity | |
|---|---|
| Wi-Fi Generation | Wi-Fi 6E |
| MIMO Technology | Yes |
| Total Number of Antennas | 6 |
| Number of External Antennas | 6 |
| Wireless Transmission Speed | 3.90 Gbit/s |
| Frequency Band | 6 GHz |
| Network Band | Tri Band |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | External |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | WPA3 |
| General Features | |
|---|---|
| Indoor/Outdoor | Outdoor |
| Manufacturer | Hewlett Packard Enterprise |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
