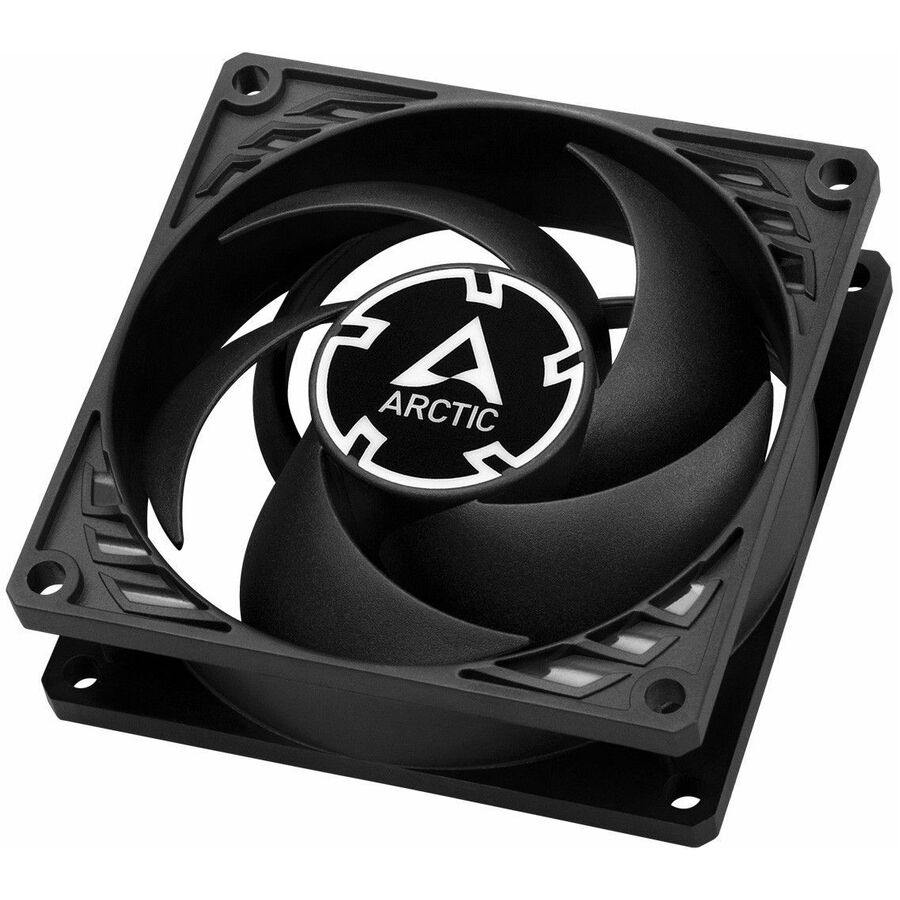

Optimised for Static Pressure
During the development of the new P8 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST is particularly suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is driven by a latest-generation PWM IC, which enables the new P8 PWM PST to operate much more efficiently than its predecessors. This saves energy without compromising performance.
Maximum Quietness, Minimum Vibration
Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.
200 to 3000 rpm Regulated via PWM PST
Thanks to the 4-Pin Connector, the rpm can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.
High-Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Two Way Installation
- Push warm air out of the case
- Pull cool air into your case
- Well designed blades and shroud let the air flow over a greater area to enable effective cooling
- Fluid Dynamic Bearing fan bearing type for maximum cooling/heating usability with added feasibility
- Helps the compatible heatsinks by maintaining a great balance of performance and efficiency
| Brand | |
|---|---|
| Brand | Arctic Cooling |
| Power & Battery | |
|---|---|
| Rated Current | 90 mA |
| Size / Dimensions | |
|---|---|
| Maximum Fan Diameter | 3.15" |
| Fan Width | 3.15" |
| Fan Height | 0.98" |
| General Features | |
|---|---|
| Manufacturer | Arctic Cooling |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Maximum Air Pressure | 1.9mmH2O |
| Fan Speed (Max) | 3000 rpm |
| Fan Speed (Min) | 200 rpm |
| Number of Fans | 1 |
| Maximum Airflow | 23.40 CFM |
| Cables | |
|---|---|
| Connectors | 4-Pin Socket |
