IDEAL WHERE SPACE IS LIMITED

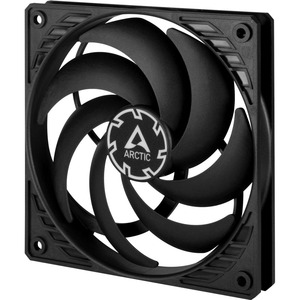

Unlike normal case fans, which are 25 mm thick, the P12 Slim PWM PST has an installation depth of only 15 mm. This makes it a predestined fan for small form factor builds.
OPTIMISED FOR STATIC PRESSURE
During the development of the new P12 Slim PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 Slim PWM PST is particularly suitable for use on covered case vents or inlets with filters.
MORE EFFICIENT TECHNOLOGY
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 Slim PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
MAXIMUM QUIETNESS, MINIMUM VIBRATION
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
EXTENDED LIFE SPAN
A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently, we have extended the warranty to 10 years.
300 TO 2100 RPM REGULATED VIA PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P12 Slim PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
TWO WAY INSTALLATION
Push warm air out of the case
Pull cool air into your case
- Cooling Fan offers enhanced cooling/heating with maximum productivity
- Fluid Dynamic Bearing fan bearing type for maximum cooling/heating efficiency with added dependability
- 4.72" fan(s) is fully compatible with standard cases
| Brand | |
|---|---|
| Brand | Arctic Cooling |
| Size / Dimensions | |
|---|---|
| Maximum Fan Diameter | 4.72" |
| Fan Width | 4.72" |
| Fan Height | 0.59" |
| General Features | |
|---|---|
| Cooler Type | Air |
| Manufacturer | Arctic Cooling |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Speed (Max) | 2100 rpm |
| Number of Fans | 1 |
| Maximum Airflow | 41.10 CFM |
| Cables | |
|---|---|
| Connectors | 4-Pin |
| Compliance & Certification | |
|---|---|
| Noise Levels (A-Weighted) | 35.8 dB(A) |
