- Fully compliant to the latest SFP+ & QSFP MSA (Multi-Source-Agreement)
- Supports all current 10-Gigabit Ethernet and 40-Gigabit Ethernet standards
- Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)
- 30 AWG to 26 AWG cable sizes available
- 00 ohm differential impedance system
- Single 3.3V power supply, low power consumption, <0.5W
- Operating case temperature: -20 to 85°C
- All-metal housing for superior EMI performance
- Precision process control for minimization of pair-to-pair skew
- AC coupling of PECL signals
- EEPROM for cable signature & system communications
- Low cross-talk and pair-to-pair skew maintains signal integrity
- Fully RoHS compliant for environmental protection
| Brand | |
|---|---|
| Brand | Legrand Group |
| General Features | |
|---|---|
| Data Transfer Rate | 40 Gbit/s |
| Manufacturer | Legrand Group |
| Cables | |
|---|---|
| Cable Length | 8.20 ft |

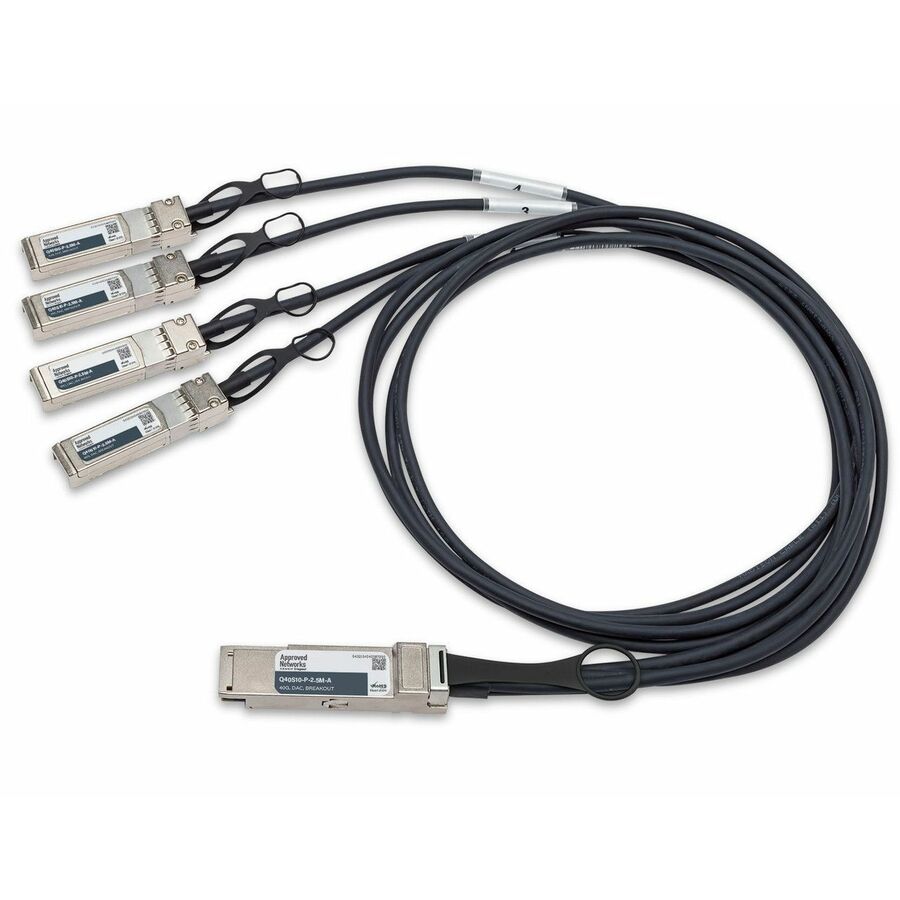

| Cable Type | QSFP+/SFP+ |
| Connector Type on First End | QSFP+ Network |
| Connector on First End Details | 1 x QSFP+ Network |
| Connector Type on Second End | SFP+ Network |
| American Wire Gauge | 30 AWG |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
