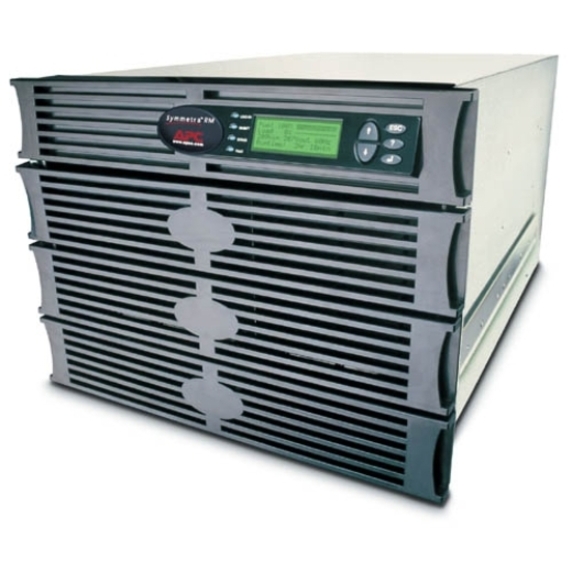

Symmetra's modular design provides redundancy, scalability, manageability and serviceability delivering high availability power protection. Symmetra is ideal for protecting small data centers, network rooms, enterprise IT equipment, PBX, and Industrial applications. Symmetra is available as rack-optimized 2-6kVA and 4-12kVA systems and tower 4-8kVA and 4-16kVA systems.
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 10 |
| Emergency Power OFF | Yes |
| Input Frequency | 60 Hz |
| Dataline Protection | RJ-45 |
| Receptacle Detail | 2 x IEC 320-C19 |
| Receptacle Type | IEC 320-C19 |
| Plug/Connector Type | Hard Wire 3-wire |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Spill-proof/Maintenance-free |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Load Capacity (VA) | 6000 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 12.70 Minute |
| Backup/Run Time (Half Load) | 30.30 Minute |
| Waveform Type | Sine Wave |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP Manageable |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Bypass Switch | Manual |
| Alarm | On Battery |
| Manufacturer | Schneider Electric SA |
| Thermal Dissipation | 519.03 W |
| Expansion Slots | |
|---|---|
| Modular Slots | 1 x SmartSlot |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Environmentally Friendly | Yes |
