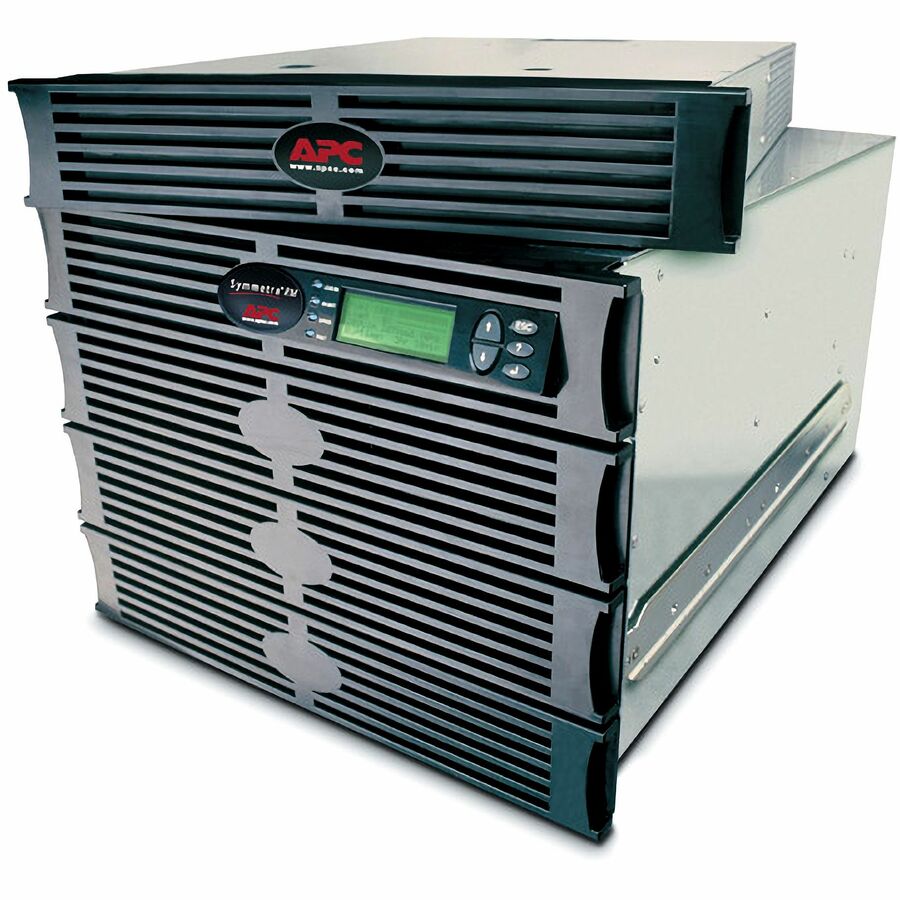

Highly available single phase UPS features redundant and scalable double-conversion on-line power protection
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Up to 12.30 minute runtime on full load to preserve critical data from power shortage interruptions
- Prevent critical data loss by staying powered during a blackout with up to 4200 W load capacity
- 6000 VA load capacity provides sufficient backup during power failures
- 3 Hour typical battery recharge time for better convenience and prolonged, productive usage
- Lead Acid battery chemistry for your convenience and better usability
- NEMA L6-30P 30A plug/connector type for convenient usage with added dependability
- NEMA L6-30P 30A receptacle type offers maximum safety, convenience, and increased usability
- 208 V input voltage for better reliance and maximum dependability
- 120 V AC output voltage for maximum dependability and added productivity
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Battery Characteristics | Maintenance-free , Spill-proof |
| Number of Battery & Surge Out | 14 |
| Emergency Power OFF | Yes |
| Battery Management | Intelligent Battery Management |
| Receptacle Detail | 2 x NEMA L6-20R |
| Receptacle Type | NEMA L6-30P 30A |
| Plug/Connector Type | NEMA L6-30P 30A |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Load Capacity (Watt) | 4200 W |
| Load Capacity (VA) | 6000 VA |
| Backup/Run Time (Full Load) | 12.30 Minute |
| Backup/Run Time (Half Load) | 29.10 Minute |
| Waveform Type | Sine Wave |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP Manageable |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Rack Height | 10U |
| Mounting Preference | Lower |
| General Features | |
|---|---|
| Bypass Switch | Automatic & Manual |
| Hot Swappable | Yes |
| Alarm | Configurable Delay |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Thermal Dissipation | 741.18 W |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| REACH free of SVHC | No |
| Maximum Operating Temperature | 113°F (45°C) |
| Environmentally Friendly | Yes |
