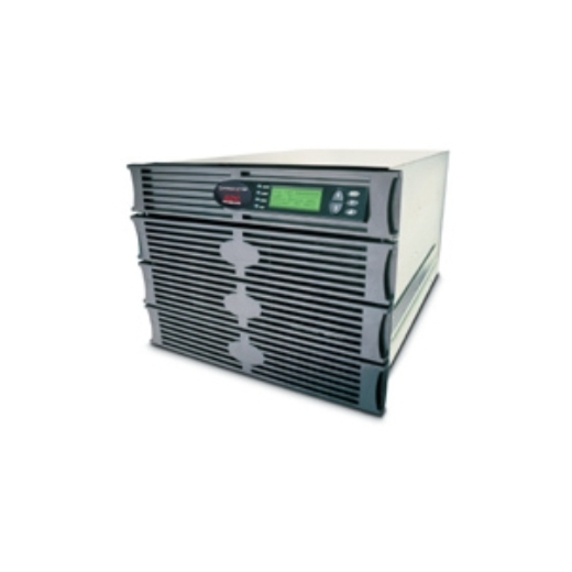

APC Symmetra RM 2kVA Scalable to 6kVA N+1 Rack-mountable UPS

$ 6,534.49 $ 6,534.49
$ 6,534.49

$ 6,534.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Number of Battery & Surge Out
  • Emergency Power OFF
  • Bypass Switch
  • Modular Slots
  • Network Management
  • Input Frequency
  • Overload Protection
  • Alarm
  • Dataline Protection
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Form Factor
  • Product Color
  • Color Family
  • Rack Height
  • Battery Chemistry
  • Battery Characteristics
  • Typical Battery Recharge Time
  • Maximum Operating Temperature
  • Input Voltage
  • Output Voltage
  • Certifications & Standards
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Series
  • Product Line
  • Manufacturer Website Address
  • Load Capacity (VA)
  • Sound Emission (A-Weighted)
  • Output Frequency
  • Backup/Run Time (Full Load)
  • Backup/Run Time (Half Load)
  • Thermal Dissipation
  • Waveform Type
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
User-Manual PDF

The first UPS with redundancy and scalability within a single chassis!
Engineered to deliver the highest level of business continuity possible, Symmetra RM 2kVA uses a modular, redundant architecture that can scale power and runtime as demand increases or when higher levels of availability are required. Symmetra's integrated manageability, and hot-swappable, user replaceable power, battery, and intelligence modules enable easy, fast maintenance and serviceability. Its 2-6kVA N+1 redundant rack-optimized form factor makes Symmetra ideal for protecting critical server racks and network rooms. Typical applications include Web and other key application servers, IP based and traditional PBX voice solutions, and enterprise type network switches.

Brand
Brand Schneider Electric SA
Power & Battery
Number of Battery & Surge Out 10
Emergency Power OFF Yes
Input Frequency 60 Hz
Overload Protection Yes
Dataline Protection RJ-45
Receptacle Detail 2 x IEC 320-C19
Receptacle Type IEC 320-C19
Plug/Connector Type Hard Wire 3-wire
Battery Chemistry Lead Acid
Battery Characteristics Spill-proof/Maintenance-free
Typical Battery Recharge Time 4 Hour
Input Voltage 220 V AC
Output Voltage 230 V AC
Load Capacity (VA) 2000 VA
Output Frequency 60 Hz
Backup/Run Time (Full Load) 12.60 Minute
Backup/Run Time (Half Load) 29.80 Minute
Waveform Type Sine Wave
Networking & Connectivity
Network Management SNMP Manageable
Size / Dimensions
Form Factor Rack-mountable
Rack Height 8U
General Features
Bypass Switch Internal
Alarm Configurable Delay
Manufacturer Schneider Electric SA
Thermal Dissipation 172.91 W
Expansion Slots
Modular Slots 1 x SmartSlot
Compliance & Certification
Maximum Operating Temperature 104°F (40°C)
Sound Emission (A-Weighted) 60 dB(A)
