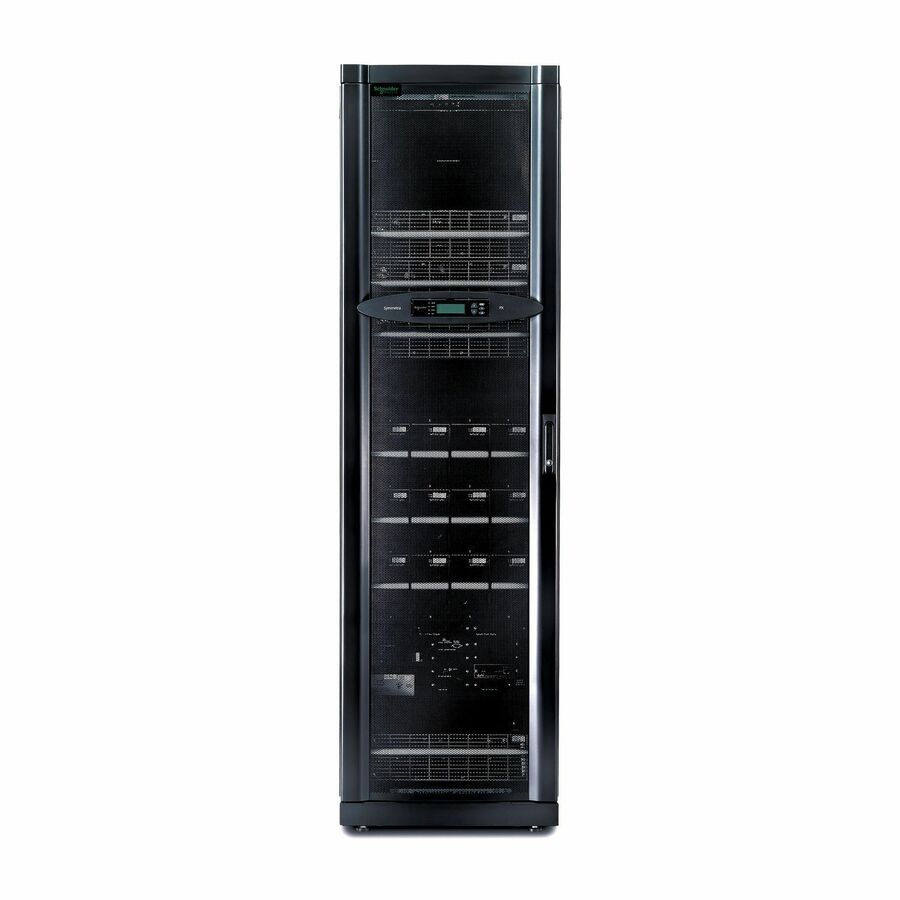

APC Symmetra PX 30kW Scalable to 40kW Rack-mountable UPS

48,919.99 48,919.99
48,919.99

48,919.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Emergency Power OFF
  • Bypass Switch
  • Modular Slots
  • Network Management
  • Input Frequency
  • Network (RJ-45)
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Rack Height
  • Battery Chemistry
  • Battery Characteristics
  • Typical Battery Recharge Time
  • Input Voltage
  • Output Voltage
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Line
  • Manufacturer Website Address
  • Load Capacity (VA)
  • Output Frequency
  • Backup/Run Time (Full Load)
  • Backup/Run Time (Half Load)
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

When expensive service plans are not part of Your strategy
The APC Symmetra PX is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data center designs, the Symmetra PX is a true modular system. Made up of dedicated and redundant modules power, intelligence, battery and bypass, all engineered into a design that is easily and efficiently serviceable, this architecture can scale power and runtime as demand grows or as higher levels of availability are required. Symmetra PX serves as the core power train that drives APC InfraStruXure systems for small and medium data centers but can also power individual "zones" of larger data centers. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data center reliability

Brand
Brand Schneider Electric SA
Power & Battery
Emergency Power OFF Yes
Input Frequency 63 Hz
Receptacle Detail 1 x Screw Terminal
Receptacle Type Screw Terminal
Plug/Connector Type Hardwired
Battery Chemistry Lead Acid
Battery Characteristics Spill-proof/Maintenance-free
Typical Battery Recharge Time 2 Hour
Input Voltage 220 V AC
Output Voltage 208 V AC
Load Capacity (VA) 40 kVA
Output Frequency 60 Hz
Backup/Run Time (Full Load) 4.10 Minute
Backup/Run Time (Half Load) 15.10 Minute
Networking & Connectivity
Network Management SNMP Manageable
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Rack Height 42U
General Features
Bypass Switch Static
Manufacturer Schneider Electric SA
Expansion Slots
Modular Slots 2 x SmartSlot
